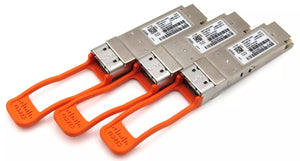

QSFP-40G-CSR4 | Cisco 4x10GBASE-SR Transceiver Module
- Regular price
- $52.00
- Sale price
- $52.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QSFP-40G-CSR4
Description
The Cisco QSFP-40G-CSR4 is a 40GBASE-CSR4 QSFP transceiver module designed for high-speed 40 Gigabit Ethernet connections over multimode fiber (MMF). It supports short-reach distances across OM2, OM3, and OM4 cabling and delivers low-power optical performance in high-density data center environments.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Networking
|
| Part Number | QSFP-40G-CSR4 |
| Subcatecory |
Optical Transceivers – QSFP Modules
|
| Form Factor | QSFP |
| Wavelength | 850 nm |
| Fiber Type | MMF (Multimode Fiber) |
| Core Size | 50 µm |
| Distance | 82 m (OM2), 300 m (OM3), 400 m (OM4) |
| Power Consumption | 1.5 W |
| Pull Tab Color | Orange |
| Dimensions (H x W x L) | 13.5 x 18.4 x 72.4 mm |
Information About QSFP-40G-CSR4
The QSFP-40G-CSR4 transceiver uses 850 nm wavelength optics and supports 4x10GBASE-SR channels through a QSFP form factor, enabling 40 Gbps Ethernet over fiber. The module is compact, measuring 13.5 x 18.4 x 72.4 mm, and is designed for energy-efficient operation with a 1.5 W power consumption. It features an orange pull tab, indicating its short-reach capability and simplifying installation and removal.
Key Features:
-
40GBASE-CSR4 Support: Enables 4x10G parallel connections over short-reach fiber
-
Multimode Fiber Compatibility: Works with OM2, OM3, and OM4 MMF standards
-
Compact QSFP Form Factor: Ideal for high-density port environments
-
Low Power Consumption (1.5 W): Reduces heat and improves efficiency
-
Pull Tab with Orange Indicator: Quick identification of short-reach modules
The QSFP-40G-CSR4 provides reliable, high-bandwidth connectivity in core-switching and aggregation layers of enterprise networks.
Description
The Cisco QSFP-40G-CSR4 is a 40GBASE-CSR4 QSFP transceiver module designed for high-speed 40 Gigabit Ethernet connections over multimode fiber (MMF). It supports short-reach distances across OM2, OM3, and OM4 cabling and delivers low-power optical performance in high-density data center environments.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Networking
|
| Part Number | QSFP-40G-CSR4 |
| Subcatecory |
Optical Transceivers – QSFP Modules
|
| Form Factor | QSFP |
| Wavelength | 850 nm |
| Fiber Type | MMF (Multimode Fiber) |
| Core Size | 50 µm |
| Distance | 82 m (OM2), 300 m (OM3), 400 m (OM4) |
| Power Consumption | 1.5 W |
| Pull Tab Color | Orange |
| Dimensions (H x W x L) | 13.5 x 18.4 x 72.4 mm |
Information About QSFP-40G-CSR4
The QSFP-40G-CSR4 transceiver uses 850 nm wavelength optics and supports 4x10GBASE-SR channels through a QSFP form factor, enabling 40 Gbps Ethernet over fiber. The module is compact, measuring 13.5 x 18.4 x 72.4 mm, and is designed for energy-efficient operation with a 1.5 W power consumption. It features an orange pull tab, indicating its short-reach capability and simplifying installation and removal.
Key Features:
-
40GBASE-CSR4 Support: Enables 4x10G parallel connections over short-reach fiber
-
Multimode Fiber Compatibility: Works with OM2, OM3, and OM4 MMF standards
-
Compact QSFP Form Factor: Ideal for high-density port environments
-
Low Power Consumption (1.5 W): Reduces heat and improves efficiency
-
Pull Tab with Orange Indicator: Quick identification of short-reach modules
The QSFP-40G-CSR4 provides reliable, high-bandwidth connectivity in core-switching and aggregation layers of enterprise networks.
