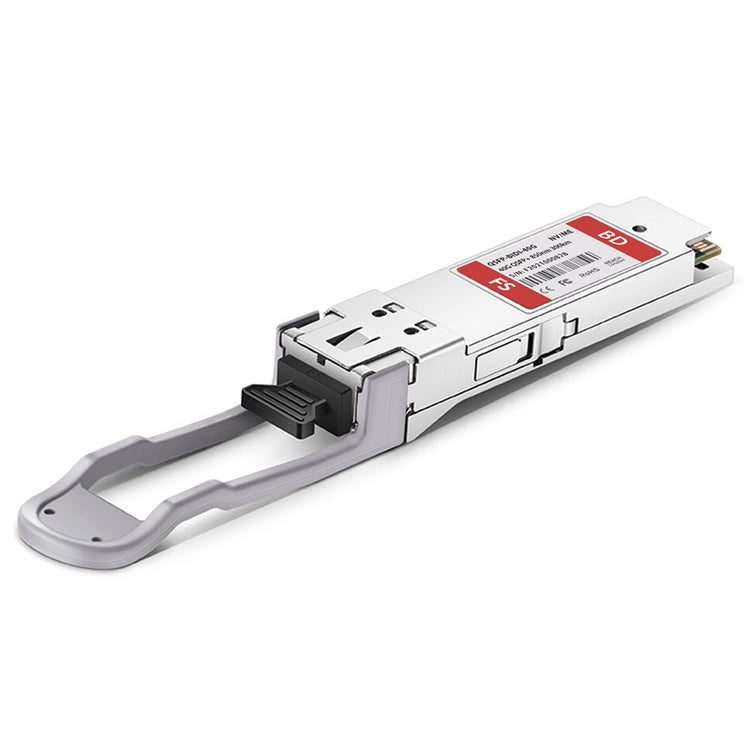

QSFP-40G-SR-BD | Cisco Transceiver Module
- Regular price
- $55.00
- Sale price
- $55.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QSFP-40G-SR-BD
Description
The Cisco QSFP-40G-SR-BD is a bidirectional 40G transceiver module designed for short-reach data center connections over duplex multimode fiber (MMF).
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Networking Hardware
|
| Part Number | QSFP-40G-SR-BD |
| Subcategory |
Optical Transceivers / 40G QSFP Modules
|
| Product Type | QSFP+ |
| Interfaces/Ports Details | 1 x LC Duplex 40GBase-X Network |
| Media Type Supported |
Optical Fiber
|
| Fiber Optic Cable Standard |
50 µm
|
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 40 Gigabit Ethernet |
| Network Technology | 40GBase-X |
| Form Factor | Hot-swappable |
| Height | 0.5" |
| Width | 0.7" |
| Depth | 2.9" |
| Speed | 40 Gbps |
| Wavelength | 850 nm |
| Cable Distance | 490 ft |
| Weight | 0.165 lbs |
Information About QSFP-40G-SR-BD
The Cisco QSFP-40G-SR-BD is a bidirectional 40G transceiver module designed for short-reach data center and enterprise applications. It enables 40G Ethernet over existing duplex multimode fiber using two wavelengths on a single fiber pair, simplifying migration from 10G to 40G without requiring new cabling infrastructure.
Key Features:
- Form Factor: QSFP+
- Connector Type: Duplex LC
- Wavelengths: 832–918 nm (bidirectional operation)
- Fiber Type: Multimode Fiber (MMF)
- Maximum Data Rate: 40 Gbps
- Transmission Distance: Up to 100 m (OM3), 150 m (OM4/OM5)
- Power Consumption: Approximately 3.5W
- Operating Temperature: 0°C to 70°C
- Compliance: IEEE 802.3ba, QSFP+ MSA (SFF-8436), RoHS
- Weight: Approximately 75 grams (0.165 lbs)
- Digital Diagnostics Monitoring (DDM): Supported for real-time parameter monitoring
The QSFP-40G-SR-BD is ideal for data center interconnects and enterprise backbone upgrades, offering a cost-effective and efficient 40G Ethernet solution. Its ability to reuse existing 10G MMF cabling makes it perfect for high-speed deployments with minimal infrastructure changes.
