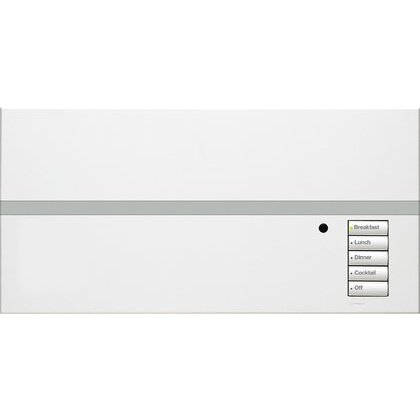

QSGRJ-4P-WH | Lutron GRAFIK Eye QS 4-Zone Wireless Scene Controller, Dual Voltage
- Regular price
- $2,849.00
- Sale price
- $2,849.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QSGRJ-4P-WH
Description
The Lutron QSGRJ-4P-WH is a 4-zone wireless lighting control unit from the GRAFIK Eye QS series, designed to manage multiple lighting zones and scenes via QS RF communication. With support for both 120–127 V and 220–240 V systems, this phase-control unit enables flexible scene recall, integration with shades, sensors, and wall stations. The unit features a built-in IR receiver, timeclock, and advanced programming options.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting Control |
| Part Number | QSGRJ-4P-WH |
| Subcategory | Control Units |
| Series | GRAFIK Eye QS |
| Zones | 4 lighting zones |
| Voltage Range | 120–127 V / 220–240 V AC |
| Amperage | 16 A total |
| Frequency | 434 MHz RF |
| Scene Capacity | 16 scenes + Off |
| Dimming Method | Phase Control (Triac) |
| Control Type | Pushbutton with backlit engraving |
| Display Features | Info screen for zone level, energy savings, timeclock info |
| IR Receiver | Built-in with external IR support |
| Timeclock | Built-in astronomical timeclock |
| Communication Protocol | Lutron Clear Connect RF (QS Link) |
| Mounting Type | Wall-mounted |
| Finish | White (WH) |
| Dimensions | 4-11/16 in H x 9-3/8 in W x 2-3/16 in D |
| Temperature Range | 32°F to 104°F (0°C to 40°C) |
| System Compatibility | QS system components (shades, sensors, wall stations, interfaces) |
| Certifications | UL Listed, CE compliant |
| Weight | ~1.8 lb |
Information About QSGRJ-4P-WH
The QSGRJ-4P-WH is a main control unit in the GRAFIK Eye QS line, offering wireless scene-based lighting control across four zones. It supports both line voltage ranges (120–127 V / 220–240 V) and integrates seamlessly with other QS components like shades, sensors, and remote interfaces via Lutron’s proprietary Clear Connect RF protocol (434 MHz). This device allows users to set up, save, and recall 16 lighting scenes, including presets for occupancy and astronomical schedules. Featuring pushbutton controls, backlit engraving, and a sleek wall-mounted design, it's ideal for both residential and commercial use.
Key Features:
- 4-Zone Control: Independently manage four lighting zones with preset scene recall.
- Dual Voltage Support: Operates at 120–127 V or 220–240 V systems.
- QS Wireless Integration: Clear Connect RF (434 MHz) ensures seamless QS device compatibility.
- Scene Programming: Recall up to 16 user-defined lighting scenes and 1 off scene.
- IR Functionality: Built-in IR receiver and support for external IR connections.
- Astronomic Timeclock: Enables automation based on sunrise/sunset events.
- Integrated Screen: Displays zone level, scene info, and energy savings.
- Backlit Controls: Illuminated buttons with engraving for ease of use in low light.
The QSGRJ-4P-WH delivers advanced wireless lighting control, ideal for integrated, energy-efficient environments with multi-zone needs.
