QSGRJ-6E-WH | Lutron GRAFIK Eye QS 6-Zone Wireless Control Unit, EcoSystem Compatible
- Regular price
- $2,379.00
- Sale price
- $2,379.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QSGRJ-6E-WH
Description

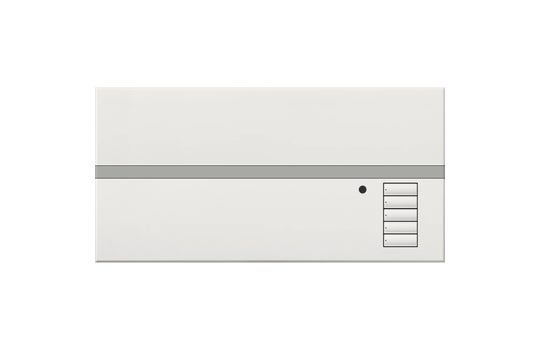

The Lutron QSGRJ-6E-WH is a GRAFIK Eye QS Wireless control unit with six lighting zones, designed for commercial and residential applications. It supports both 120–127 V and 220–240 V input and offers precise scene-based dimming using phase control. The unit integrates seamlessly with EcoSystem components, occupancy sensors, and other QS devices through Clear Connect® RF.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting Control |
| Part Number | QSGRJ-6E-WH |
| Subcategory | Lighting Control Wallstation |
| Series | GRAFIK Eye QS |
| Zones | 6 programmable lighting zones |
| Scene Capacity | 6 scenes + OFF |
| Voltage Range | 120–127 V AC / 220–240 V AC (50/60 Hz) |
| Load Types Supported | Incandescent, Halogen, MLV, Tu-Wire, EcoSystem LED, Hi-Lume LTE, Neon |
| Max Load (120 V) | 800 W per zone, 2000 W total |
| Max Load (240 V) | 1000 W per zone, 3000 W total |
| Control Type | Wireless + Local push-button |
| Wireless Frequency | 434 MHz (Clear Connect® RF) |
| Timeclock | Built-in astronomic timeclock |
| IR Receiver | Integrated and external IR supported |
| Sensor Input | 1 occupancy sensor input (24 V) |
| Display Features | Info screen for level %, energy savings, labeling |
| Mounting Type | Wallbox mount |
| Dimensions | 9-3/8 in W x 2-3/8 in D x 4-11/16 in H |
| Finish | Matte White (WH) |
| Operating Temp | 32–104°F (0–40°C) |
| Humidity | ≤90% RH, non-condensing |
| Certifications | UL, CSA, NOM, CEC Title 24, FCC, IC, SCT, CE |
| Made in USA | Yes |
| Weight | ~1.5 lb |
Information About QSGRJ-6E-WH
The QSGRJ-6E-WH belongs to Lutron’s GRAFIK Eye QS series and is a wireless-enabled controller featuring EcoSystem integration. It provides lighting control across six zones with support for a wide range of load types including LED, fluorescent, incandescent, and more. The unit includes an astronomic timeclock, info display screen, and support for scene recall and master override. Designed for wallbox mounting, it is UL, CSA, NOM, and CE certified, making it suitable for classrooms, conference rooms, ballrooms, and more.
Key Features:
- 6-Zone Control: Independently manage up to six lighting loads with presets.
- EcoSystem Compatible: Supports Lutron LED drivers and digital lighting devices.
- Wide Load Support: Controls incandescent, halogen, MLV, Tu-Wire, LED drivers, and more.
- Dual Voltage Input: Operates on 120–127 V or 220–240 V systems.
- Clear Connect® RF: Wireless communication at 434 MHz with QS components.
- Built-in Timeclock: Astronomic scheduling for automatic scene activation.
- IR Control: Integrated receiver for wireless remote functionality.
- Scene Recall & Display: 6 preset scenes + OFF with status screen for levels and energy data.
The QSGRJ-6E-WH delivers advanced wireless and wired lighting control for flexible, scalable scene-based installations.
