QSGRJ-6P-TWH | Lutron GRAFIK Eye Control Unit

Description

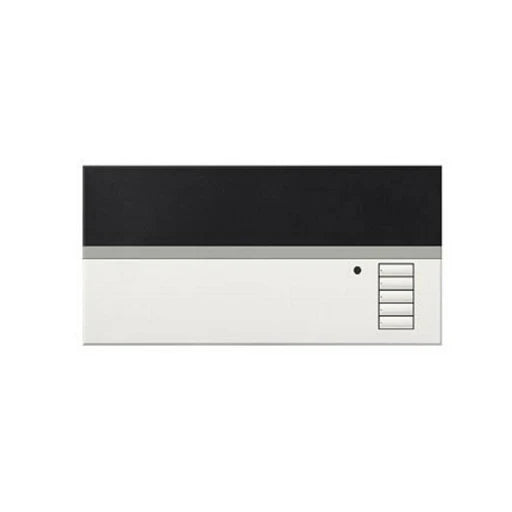

The Lutron QSGRJ-6P-TWH is a GRAFIK Eye control unit designed for lighting control. It allows for the management of up to six lighting zones, providing centralized control for adjusting lighting levels. The unit integrates with Lutron’s systems and is suitable for commercial or residential environments requiring precise lighting management. It supports preset configurations for customized control and offers reliable performance in various lighting applications.

Technical Specifications

Information About QSGRJ-6P-TWH

The Lutron QSGRJ-6P-TWH is a GRAFIK Eye control unit designed for advanced lighting control applications within the QS Series. This unit provides a centralized control solution for managing up to six individual light zones, offering both flexibility and precision in controlling lighting levels across various spaces. It operates on a voltage rating of 120 to 127/220 to 240 VAC, ensuring compatibility with a broad range of electrical systems in both residential and commercial settings. The unit is rated for 16 amps, making it suitable for managing lighting loads with reliable performance.

The QSGRJ-6P-TWH uses phase control triac technology to regulate lighting output, providing smooth and efficient dimming control. This type of control is particularly suited for applications where energy efficiency and precise lighting management are key considerations. The unit is housed in a white enclosure with dimensions of 4-11/16 inches in height, 9-3/8 inches in width, and 2-3/16 inches in depth, ensuring it can be easily installed in standard spaces without taking up excessive room. It is designed for use within environments where the temperature ranges from 32 to 104°F, ensuring consistent performance in various conditions.

One of the key features of the Lutron QSGRJ-6P-TWH is its ability to control six separate lighting zones. Each zone can be adjusted independently, allowing for the customization of lighting levels across different areas of a room or building. This flexibility makes the unit ideal for spaces that require distinct lighting setups, such as conference rooms, retail spaces, or homes with multi-functional areas. The control unit also includes scene recall functionality, with the ability to recall up to four preset lighting scenes at the push of a button. Users can configure these scenes to match specific lighting preferences or needs, whether for presentations, events, or daily use.

In addition to the preset scene options, the QSGRJ-6P-TWH supports a total of 16 customizable scenes, offering enhanced flexibility in managing lighting configurations. These scenes can be programmed to control the intensity, combination, and timing of light zones, making it easy to transition between different lighting settings as required. An Off scene is also included, allowing users to quickly turn off all lights in a zone or across the entire system.

For ease of operation, the unit includes master override buttons, which provide a quick method for adjusting all lights in a zone simultaneously. This feature is particularly useful in scenarios where immediate changes to lighting levels are necessary, such as when adjusting light levels during a meeting or event. The ability to raise or lower all lights in a zone with a single command adds convenience to the lighting control process.

The Lutron QSGRJ-6P-TWH is equipped with Lutron’s proprietary Clear Connect® RF technology, operating on the 434 MHz frequency band. This wireless technology ensures reliable communication between the control unit and other Lutron devices, including occupancy sensors, wireless shades, and other GRAFIK Eye control units. The wireless functionality allows for seamless integration into larger control systems, making it easier to manage lighting, shades, and other devices from a single interface. Additionally, the unit is compatible with Lutron’s RadioRA® 2 system, allowing it to be used in conjunction with other automation devices within a connected building environment.

Integration with Lutron’s wired QS products and systems is also supported, including compatibility with Quantum® for large-scale commercial applications. This flexibility ensures that the QSGRJ-6P-TWH can be integrated into both wired and wireless control infrastructures, making it adaptable to a variety of building types and installation scenarios.

The unit also features a built-in infrared (IR) receiver and external IR connection, enabling remote control through standard IR remotes. This allows users to adjust lighting levels and scenes from a distance, providing further convenience in day-to-day use. Additionally, the unit includes a built-in astronomic timeclock, which can be programmed to adjust lighting automatically based on the time of day, improving energy efficiency and convenience by automating lighting adjustments according to natural light availability.

The QSGRJ-6P-TWH’s information screen provides real-time feedback on the lighting system’s performance, including zone light levels, energy savings, and programmable settings. This feature enables users to monitor and adjust the system as needed, ensuring that lighting configurations remain optimized for the environment. The unit also offers lockout options to prevent accidental changes to settings, enhancing system security in commercial installations where consistent lighting levels are important.

In terms of power handling, the QSGRJ-6P-TWH supports 800 watts per channel, with a total power capacity of 2000 watts. This allows it to manage a wide variety of light sources directly or through additional power modules, making it suitable for use in environments with diverse lighting needs. Its compatibility with a broad range of lighting types, along with its robust power management capabilities, ensures that the control unit can handle complex lighting setups with ease.

Overall, the Lutron QSGRJ-6P-TWH GRAFIK Eye control unit provides a comprehensive solution for managing multi-zone lighting systems. Its flexibility, ease of use, and advanced control features make it an ideal choice for both commercial and residential environments where precise lighting control is essential. With the ability to integrate with Lutron’s wired and wireless systems, this control unit delivers reliable performance, seamless operation, and long-term adaptability in demanding lighting applications.
