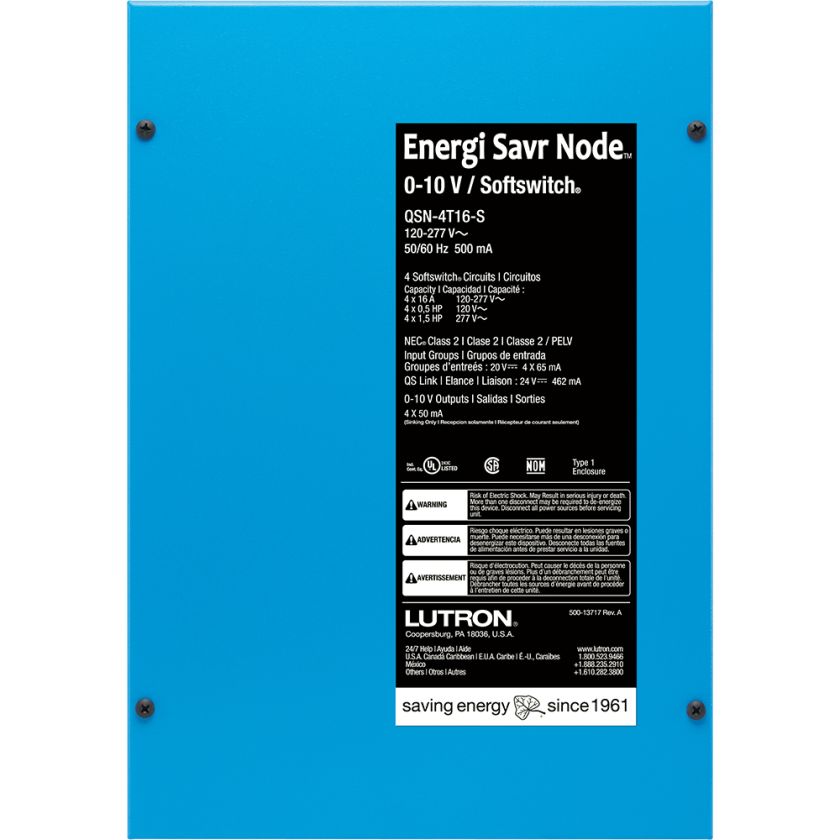

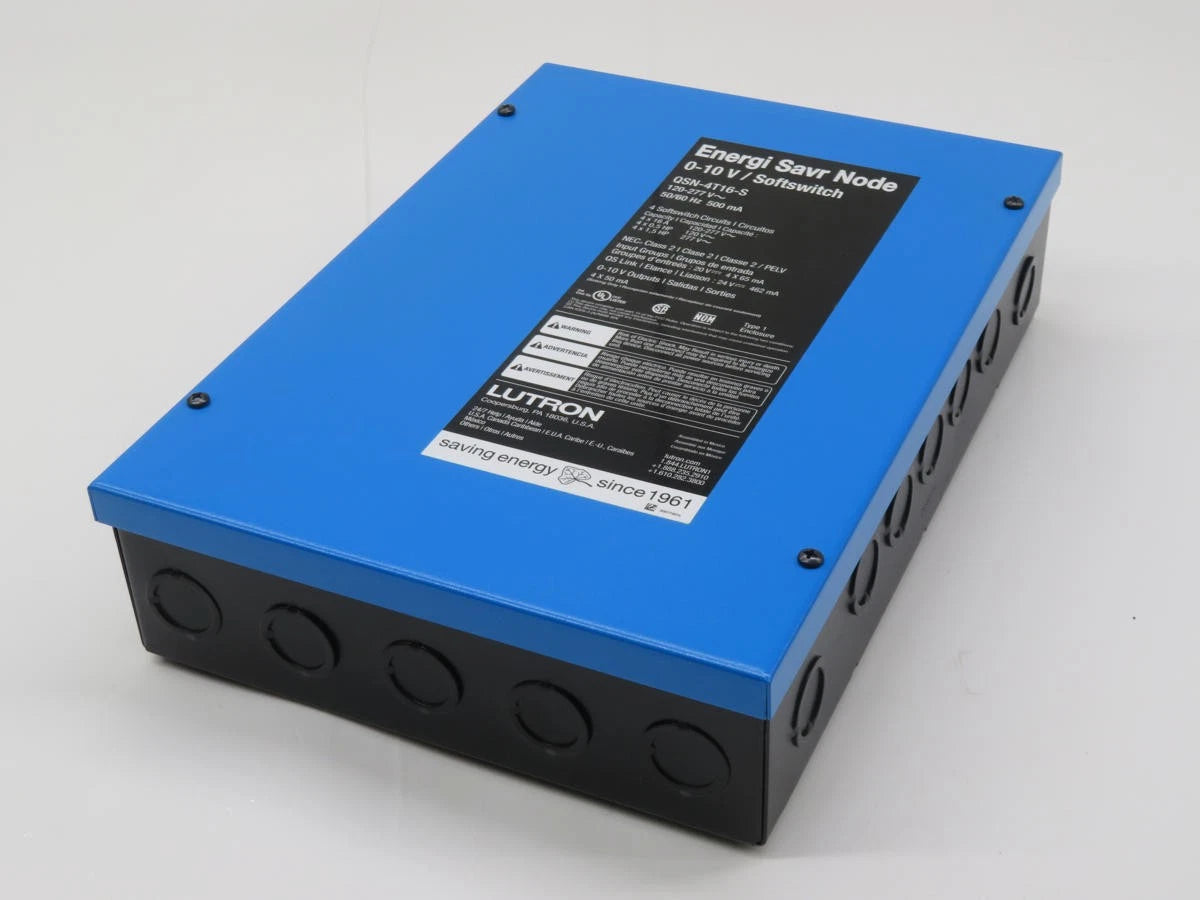

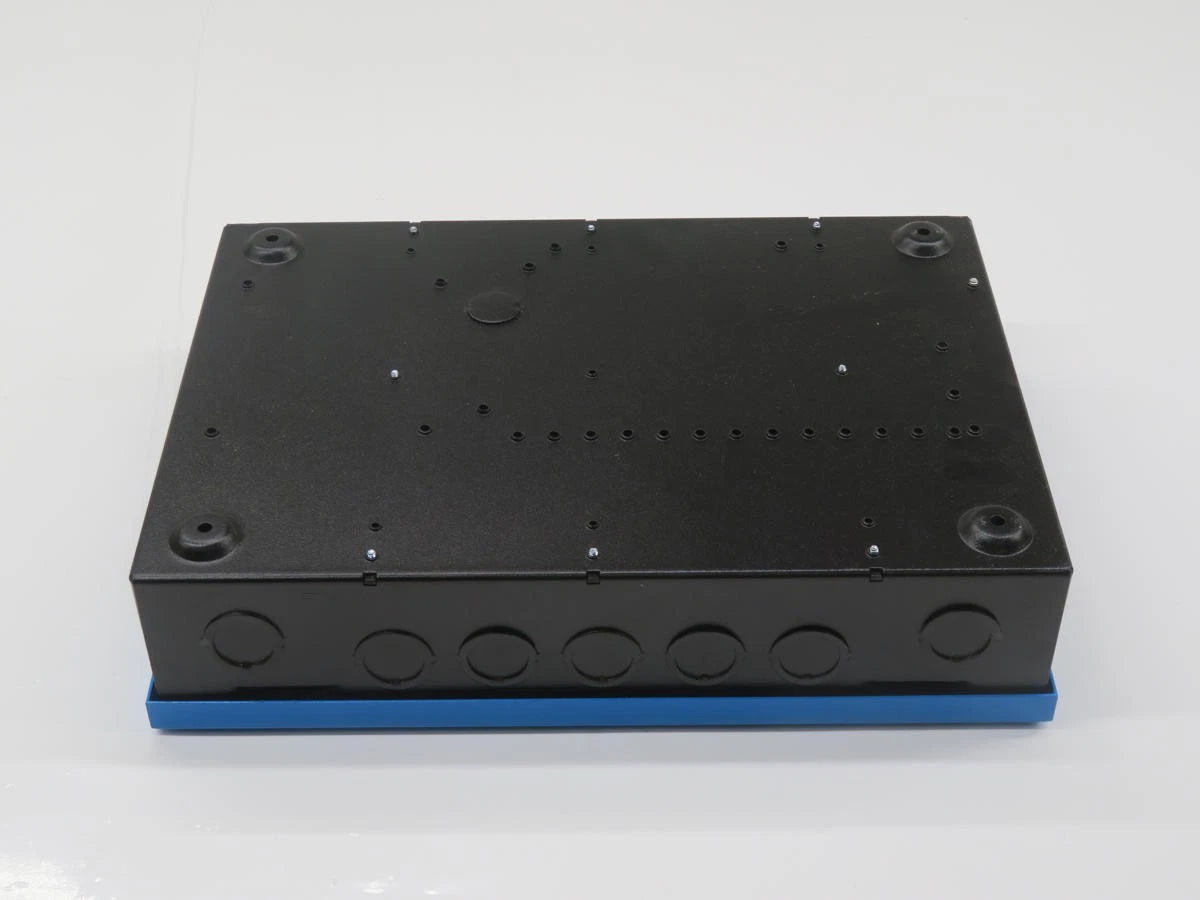

QSN-4T16-S | Lutron Energi Savr Node 4-Zone 0–10 V Lighting Controller with Sensor Inputs
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QSN-4T16-S
Description
The Lutron QSN-4T16-S is a 4-zone lighting control panel from the Energi Savr Node™ family, designed for 0–10 V dimming and switching applications. Operating at 120–277 V AC, this controller manages four independent zones with occupancy sensing, daylight integration, and up to 16 A per zone. Ideal for commercial and institutional energy-efficient lighting control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting Control |
| Part Number | QSN-4T16-S |
| Subcategory | Lighting Control Units |
| Series | Energi Savr Node™, EcoSystem® |
| Zones | 4 independent lighting zones |
| Voltage Rating | 120–277 V AC, 50/60 Hz |
| Current Rating | 16 A total |
| Dimming Protocol | 0–10 V analog dimming |
| Control Type | Dimming + Softswitch® relay switching |
| Sensor Inputs | 4 occupancy sensor inputs |
| Scene Support | Up to 16 programmable scenes |
| Enclosure Type | NEMA 1 / IP20 steel housing |
| Mounting Type | Surface or panel mount |
| Compatible Loads | LED drivers, fluorescent ballasts, HID |
| Dimensions | 9.25 in W × 3.16 in D × 13.25 in H |
| Environmental Rating | Indoor only |
| Temperature Range | 32°F to 104°F (0°C to 40°C) |
| Certifications | UL, CSA, NOM, ISO 9001 |
| System Compatibility | Quantum, Vive, Athena, EcoSystem, HomeWorks |
| Weight | ~8.2 lb (estimated) |
Information About QSN-4T16-S
The QSN-4T16-S is part of the Lutron Energi Savr Node™ EcoSystem® series, optimized for scalable, code-compliant lighting control using 0–10 V analog dimming. Each of its four zones supports fluorescent ballasts or LED drivers with switching and dimming capabilities, including Softswitch® relay technology for relay longevity. This model includes four occupancy sensor inputs, programmable scenes, and integration with daylight harvesting strategies. Certified to UL, CSA, and ISO 9001 standards, the QSN-4T16-S is designed for reliable operation in commercial-grade indoor environments.
Key Features:
- 4-Zone Dimming Control: Supports independent dimming and switching per zone with up to 16 A load capacity.
- 0–10 V Compatibility: Controls LED drivers and fluorescent ballasts using analog 0–10 V signals.
- Sensor Integration: Four occupancy sensor inputs for automated energy-saving control.
- Softswitch® Relay Technology: Reduces wear and tear, rated for millions of cycles.
- System Scalability: Compatible with Quantum, Vive, and EcoSystem® networks.
- Programmable Scenes: Supports up to 16 preset lighting scenes for scheduling and automation.
- Certifications: UL, CSA, NOM, ISO 9001 approved for commercial-grade reliability.
- Durable Enclosure: NEMA 1/IP20 rated steel panel for indoor use.
The QSN-4T16-S delivers intelligent, sensor-based control of commercial lighting systems through scalable 0–10 V analog dimming and switching technology.
