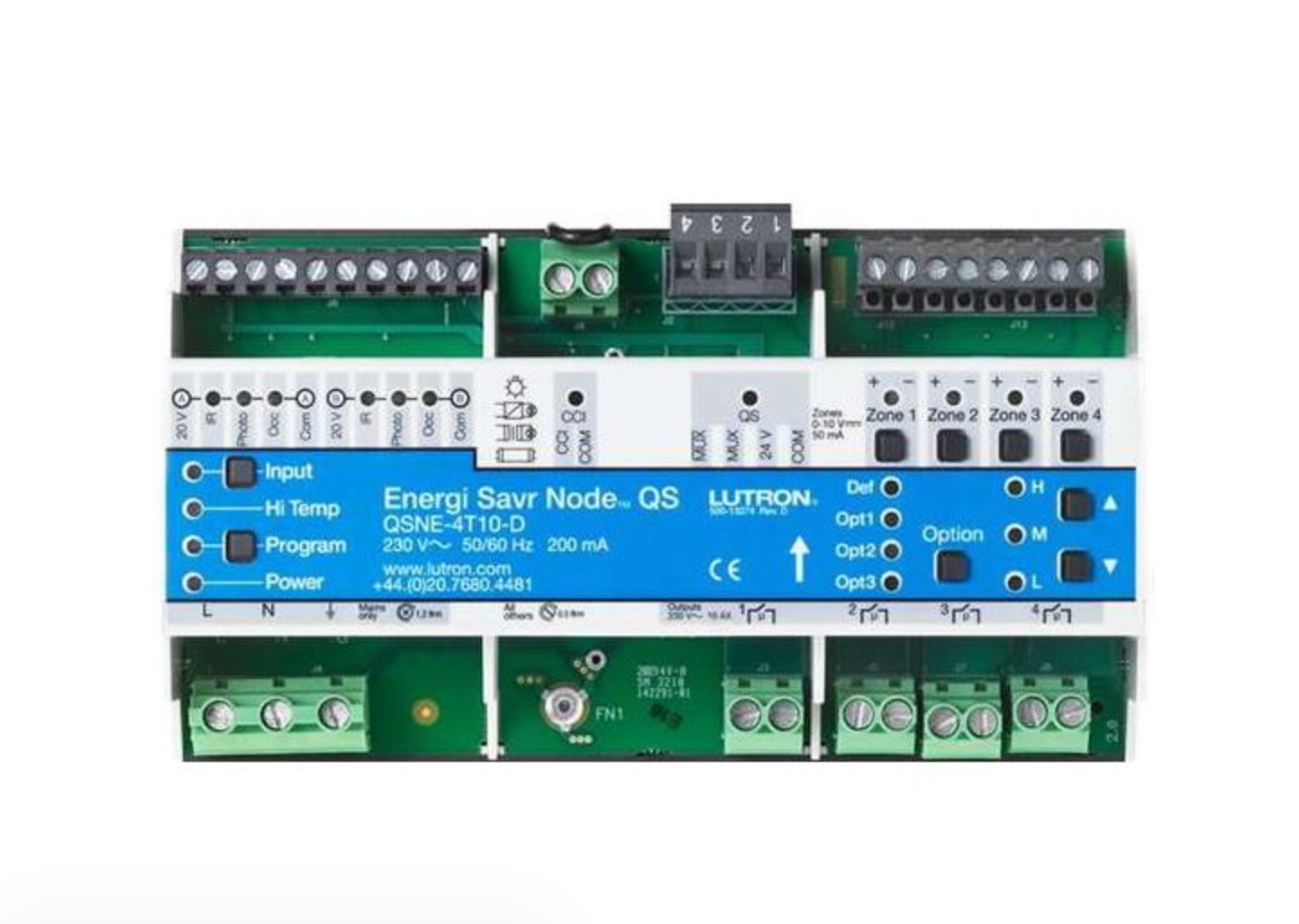

QSNE-4T10-D | Lutron Energi Savr Node 230V Switch Controller with 0–10V Control
- Regular price
- $879.00
- Sale price
- $879.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QSNE-4T10-D
Description
The Lutron QSNE-4T10-D is an Energi Savr Node switch controller designed to provide centralized switching and 0–10V control in advanced lighting systems. This Lutron module operates at 230 volts and supports multiple switched outputs for efficient load control. It is primarily used in commercial and architectural lighting installations that require scalable, panel-based control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | PLCs and Accessories |
| Part Number | QSNE-4T10-D |
| Subcategory | PLC Expansion Modules |
| Product Series | Energi Savr Node |
| Product Type | Switch controller |
| Revision | Rev. A |
| Operating Voltage | 230 V AC |
| Line Frequency | 50 / 60 Hz |
| Input Current | 200 mA |
| Switching Outputs | 230 V AC, up to 10 A |
| 0–10V Control Zones | 50 mA |
| Control Function | Switching and 0–10V control |
| Installation Type | Panel-mounted |
| Application | Lighting control systems |
| Operating Environment | Indoor use |
| Weight | 0.50 kg |
Information About QSNE-4T10-D
The QSNE-4T10-D is part of Lutron’s Energi Savr Node system, engineered for modular lighting control and energy management applications. It features a compact controller design that integrates both high-voltage switching outputs and low-voltage 0–10V control zones. The unit is compatible with Lutron lighting control architectures that support Energi Savr Node expansion modules. Its internal electronics are designed to deliver stable performance at 230 VAC while supporting precise control of connected lighting loads.
Key Features:
- Energi Savr Node Controller: Designed for centralized lighting control within modular systems.
- Switching Output Capability: Provides multiple high-voltage switched outputs for load control.
- 0–10V Control Zones: Supports low-voltage dimming control for compatible lighting drivers.
- 230 VAC Operation: Suitable for international and commercial electrical systems.
- Multi-Frequency Support: Operates reliably at both 50 Hz and 60 Hz.
- Compact Expansion Module: Designed for panel-based installation in control enclosures.
- Professional System Integration: Compatible with Lutron Energi Savr Node architectures.
The QSNE-4T10-D delivers the reliability and precision required for scalable switching and dimming control in professional lighting systems.
