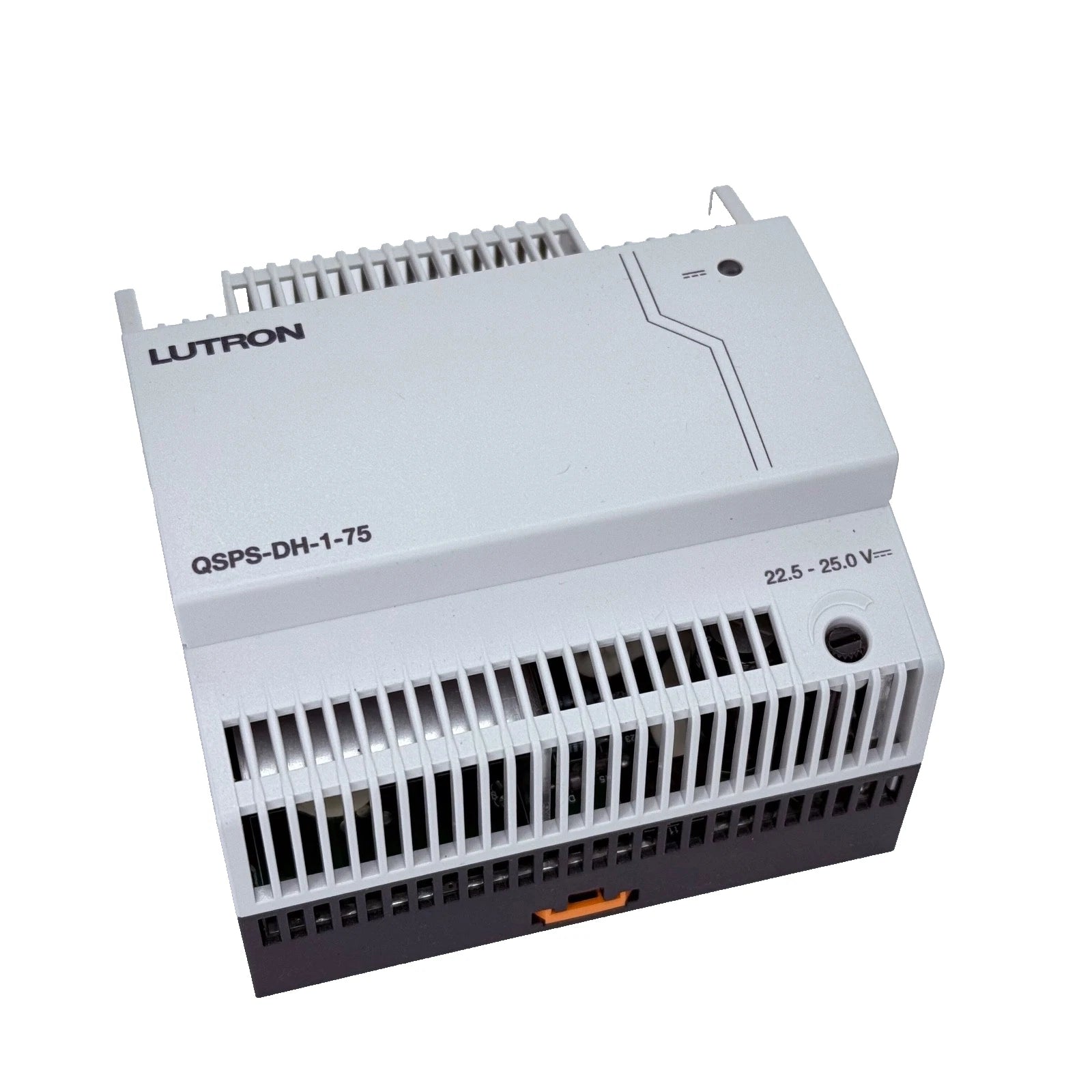

QSPS-DH-1-75 | Lutron QS Link 24 VDC Power Supply, 75 PDU, 100–277 VAC Input
- Regular price
- $247.00
- Sale price
- $247.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: QSPS-DH-1-75
Description
The Lutron QSPS-DH-1-75 is a DIN-rail mounted QS Link power supply designed to deliver regulated 24 VDC power for Lutron QS lighting control devices. It supports universal input from 100–277 VAC and provides up to 75 PDUs for powering QS system components in commercial and residential automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Power Supplies |
| Part Number | QSPS-DH-1-75 |
| Subcategory | Power Supply |
| Input Voltage Range | 100–277 VAC |
| Frequency | 50/60 Hz |
| Input Current (Typical) | 0.5 A @ 277 V / 0.7 A @ 230 V / 1.0 A @ 120 V / 1.3 A @ 100 V |
| Output Voltage | 24 VDC ±1% |
| Output Current | 2.5 A |
| Output Capacity | 75 PDUs |
| Safety Classification | Class 2 / SELV / PELV |
| Efficiency Standard | DOE Level VI compliant |
| Ambient Operating Temperature | 32°F to 131°F (0°C to 55°C) |
| Ambient Humidity | 0–90% RH, non-condensing |
| Heat Output | 28 BTU/hr max |
| Mounting Method | 35 mm DIN rail (EN 60715) |
| Dimensions | 3.54 × 3.54 × 2.40 in (90 × 90 × 61 mm) |
| Regulatory Approvals | UL, cUL, CE, NOM |
| Indoor Use | Yes |
| Application | QS Link low-voltage device power |
| Weight | 0.75 lbs |
Information About QSPS-DH-1-75
The QSPS-DH-1-75 is part of Lutron’s QS Link power distribution family for powering sensors, wallstations, interfaces, and other QS network devices. It supplies a stable 24 VDC output at 2.5 A and is rated as a Class 2/SELV/PELV power source, ensuring compliance with low-voltage safety requirements. Designed exclusively for low-voltage QS electronics, this unit is not approved for use with motorized shades or high-draw window treatments. Its compact DIN-rail form factor, wide operating temperature range, and international approvals make it suitable for globally deployed control systems.
Key Features:
- Universal Input Voltage: Operates from 100–277 VAC at 50/60 Hz for worldwide installations.
- Regulated 24 VDC Output: Delivers ±1% voltage accuracy for stable QS system operation.
- 75 Power Draw Units (PDUs): Capable of powering multiple QS devices on a single supply.
- Class 2 / SELV / PELV Rated: Meets low-voltage safety classifications for controlled-voltage circuits.
- 2.5 A Output Capacity: Supports up to 75 PDUs without exceeding Class 2 power limits.
- DIN-Rail Mountable: Installs onto 35 mm DIN rail per EN 60715 for efficient panel integration.
- Wide Operating Temperature Range: Functions reliably from 32°F to 131°F (0°C to 55°C).
- Low Heat Emission: Generates a maximum of only 28 BTU/hr for dense panel installations.
- High-Efficiency Design: Meets U.S. DOE Level VI efficiency performance standards.
- Indoor Rated Construction: Suitable for conditioned indoor environments with up to 90% non-condensing humidity.
The QSPS-DH-1-75 delivers the reliability and precision required for powering Lutron QS low-voltage lighting control networks.
