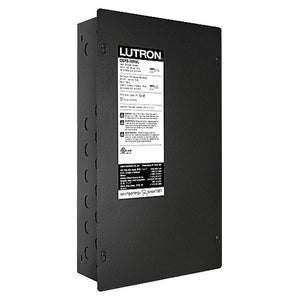

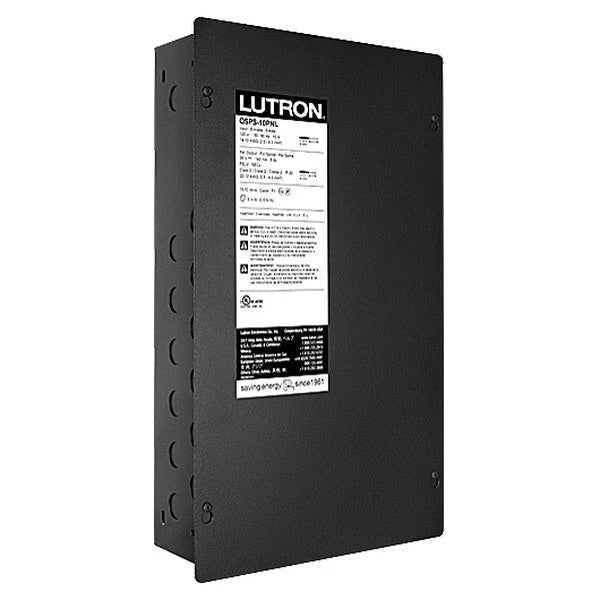

QSPSY-10PNL | Lutron Sivoia QS Wireless Smart Panel, 10 Output Shade Power Supply
- Regular price
- $1,487.00
- Sale price
- $1,487.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QSPSY-10PNL
Description
The Lutron QSPSY-10PNL is a Sivoia QS Wireless Smart Panel that provides ten Class 2/PELV power outputs for motorized shades, drapery drives, and keypads. Designed for 120–240 V circuits, this panel simplifies large-scale installations by consolidating power and communication wiring into a centralized enclosure. It ensures reliable, overload-protected low-voltage power distribution across Lutron shading systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting Control |
| Part Number | QSPSY-10PNL |
| Subcategory | Shade Power Panels |
| Input Voltage | 120–240 V~, 50/60 Hz |
| Input Current | 10 A max |
| Outputs | 10 x Class 2/PELV power + communication outputs |
| Output Voltage | 35 VDC |
| Output Current | 143 mA max per output |
| Output Power | 5 W max per output |
| Compatible Devices | Sivoia QS Wireless shades, drapery drives, QS keypads |
| Output Protection | Overload, miswire, over-temperature, short-circuit (self-recovering) |
| Thermal Dissipation | Up to 52 BTU/hr (max load); 20 BTU/hr (typical) |
| Mounting Type | Wall or panel surface mount |
| Wiring Standards | NEC® Class 2 / PELV / SELV compliant |
| Certifications | UL, CE, NOM, FCC Part 15 Class B, RoHS |
| Environment | Indoor use only |
| Operating Temp | 32–104°F (0–40°C) |
| Humidity Rating | 0–90% non-condensing |
| Surge Protection | ±6 kV (ANSI/IEEE C62.41-1991) |
| ESD Protection | ±16 kV (IEC 61000-4-2 air discharge) |
| Dimensions | Not specified (panel form factor) |
| Weight | Approx. 12–15 lb (estimated) |
Information About QSPSY-10PNL
The QSPSY-10PNL is part of Lutron’s Sivoia QS Wireless product line and acts as a smart power panel for centralized window treatment and keypad installations. Each panel provides ten NEC Class 2 compliant outputs (35 VDC @ 143 mA, 5 W per output), capable of independently powering Sivoia QS Wireless shades and accessories. With overload, miswire, and over-temperature protection per output, this unit provides maintenance-free reliability and streamlined integration. It is suitable for commercial or high-end residential applications and integrates with Lutron’s broader QS system architecture.
Key Features:
- Ten Powered Outputs: Supports up to 10 QS Wireless shades, drapery drives, or keypads.
- Universal Voltage Input: Accepts 120–240 V~ at 50/60 Hz, 10 A input rating.
- Self-Protected Outputs: Includes per-output protection from overload, short-circuit, and overheating.
- Energy Efficient: Uses DOE Level VI compliant internal power supplies.
- LED Status Feedback: Per-output LEDs provide visual diagnostics and system status.
- Secure Integration: All outputs meet NEC Class 2/PELV/SELV standards.
- Indoor-Only Rated: Designed for installation in commercial or conditioned environments.
- Standards Compliant: UL, CE, NOM, FCC Part 15 Class B, and RoHS approved.
The QSPSY-10PNL delivers centralized low-voltage power distribution for efficient, scalable Sivoia QS Wireless shading system deployments.
