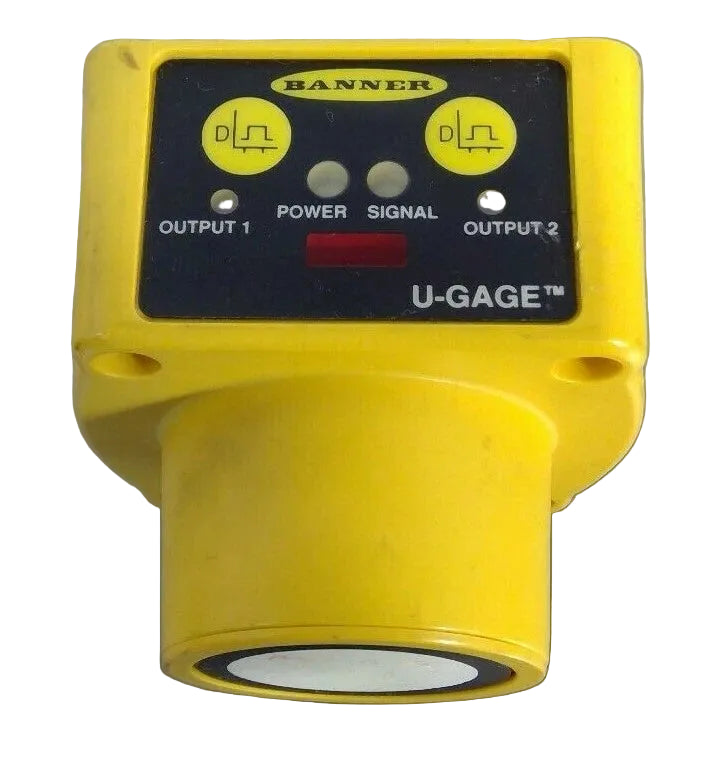

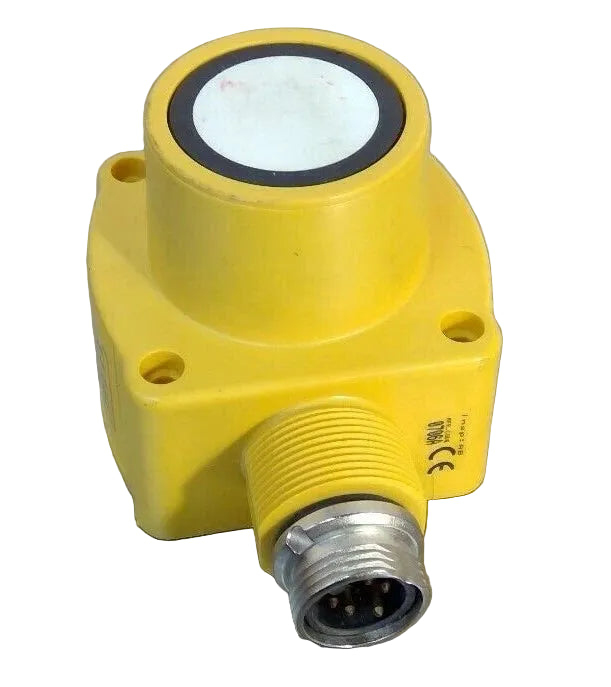

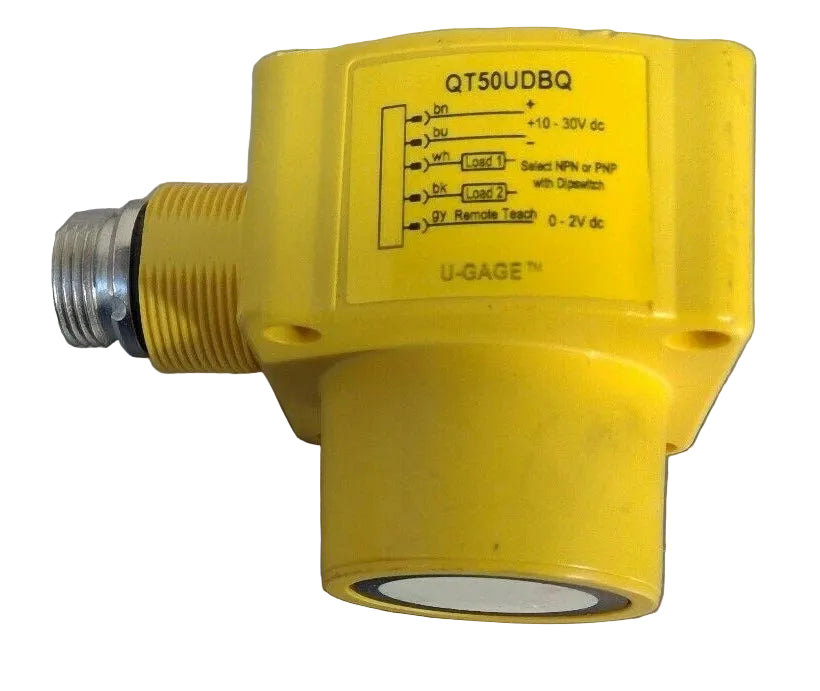

QT50UDBQ | Banner Engineering QT50U 8 m Range Ultrasonic Proximity Sensor
- Regular price
- $1,744.00
- Sale price
- $1,744.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QT50UDBQ
Description
The Banner Engineering QT50UDBQ is a QT50U series ultrasonic proximity sensor designed for reliable long-range object detection in industrial environments. It uses time-of-flight ultrasonic sensing to detect targets at distances up to 8 meters with consistent performance. This sensor is suited for applications involving variable target materials, shapes, or surface finishes.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Industrial Sensors |
| Part Number | QT50UDBQ |
| Subcategory | Ultrasonic Sensors |
| Series | QT50U Series |
| Sensor Type | Ultrasonic Proximity Sensor |
| Sensing Mode | Time-of-Flight |
| Sensing Range | 200–8000 mm (8 m max) |
| Ultrasonic Frequency | 75 kHz |
| Response Time | 100 ms |
| Supply Voltage | 10–30 VDC |
| Output Type | Discrete, NPN/PNP Configurable |
| Number of Outputs | 2 |
| Housing Material | PBT |
| Housing Style | Rectangular |
| Connection Type | Integral Quick-Disconnect |
| Quick Disconnect Size | 7/8 in Mini |
| Number of Pins | 5 |
| IP Rating | IP67 |
| NEMA Rating | 4X |
| Operating Temperature Range | −20 to 70 °C |
| Indicators | LED(s) |
| Certifications | CE Approved, cULus Recognized |
| Weight | 0.64 lb |
Information About QT50UDBQ
The QT50UDBQ is part of Banner Engineering’s QT50U ultrasonic sensor family, engineered for robust proximity sensing in demanding industrial applications. It features a rectangular PBT housing designed to withstand harsh conditions while maintaining sensing accuracy. The sensor provides configurable discrete NPN/PNP outputs and integrates easily through a 7/8-inch mini quick-disconnect interface. It is commonly used in material handling, level detection, and automation systems where non-contact long-range sensing is required.
Key Features:
- Ultrasonic Time-of-Flight Sensing: Detects objects using sound-based distance measurement independent of target color or transparency.
- Extended Sensing Range: Supports detection distances from 200 mm up to 8000 mm.
- Configurable Discrete Outputs: Includes two selectable NPN/PNP outputs for control system compatibility.
- Chemical-Resistant Housing Material: Constructed from PBT for durability in industrial environments.
- Wide Operating Temperature Range: Operates reliably from −20 °C to 70 °C.
- Push Button and Remote Teach: Allows straightforward setup and sensitivity adjustment.
- Industrial Environmental Protection: Rated IP67 and NEMA 4X for protection against dust and moisture.
The QT50UDBQ delivers the reliability and precision required for industrial ultrasonic proximity sensing applications.
