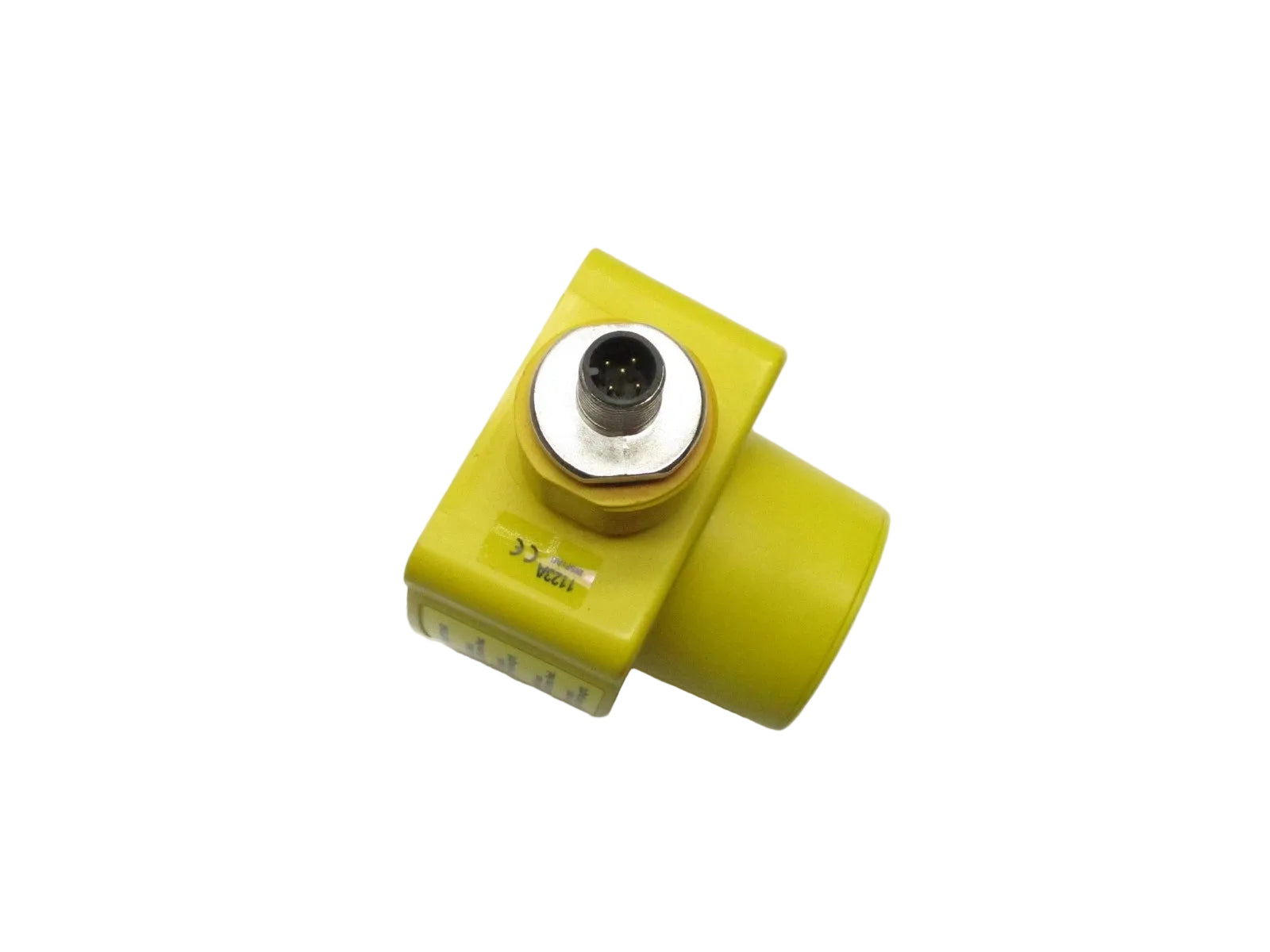

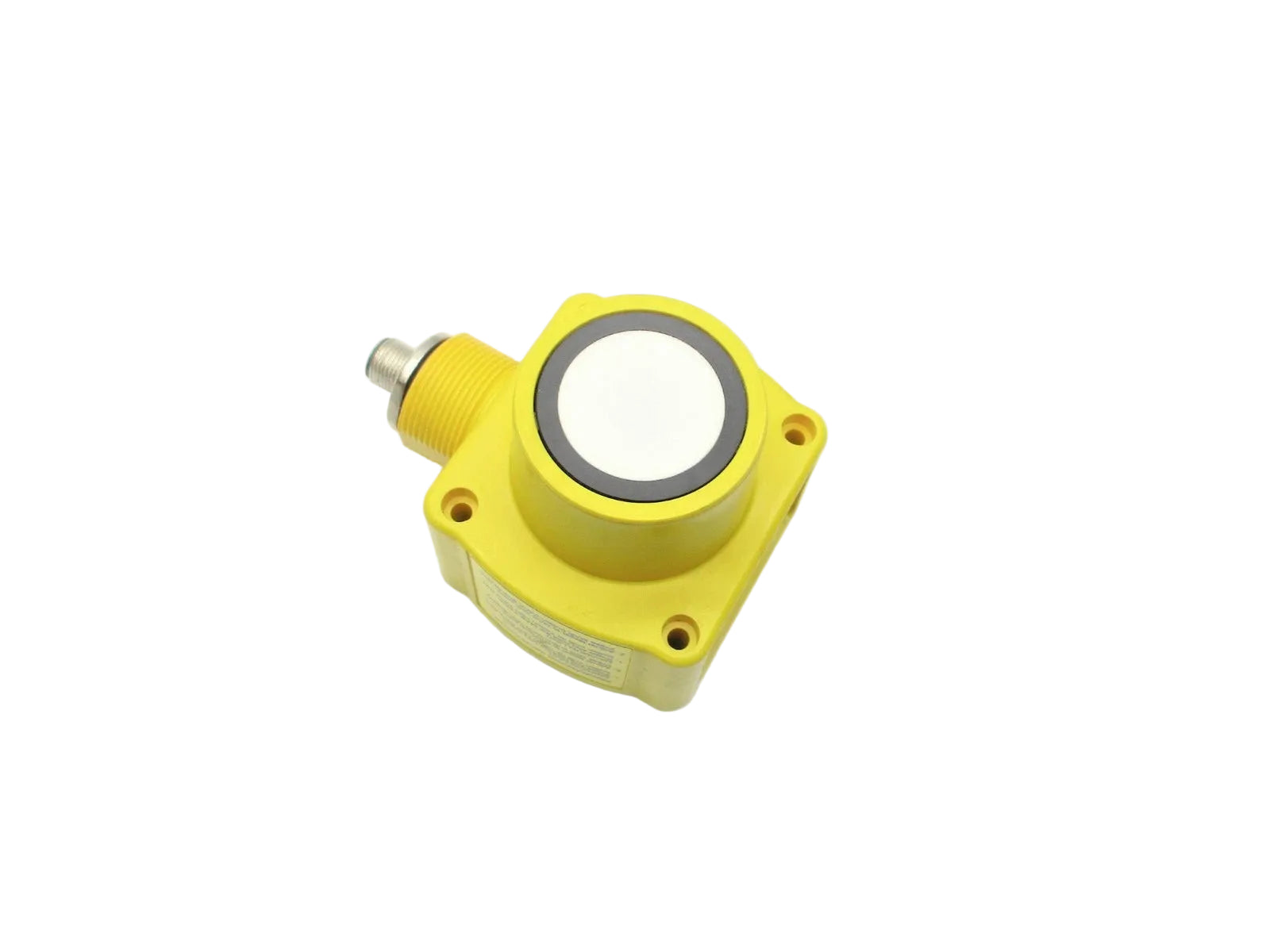

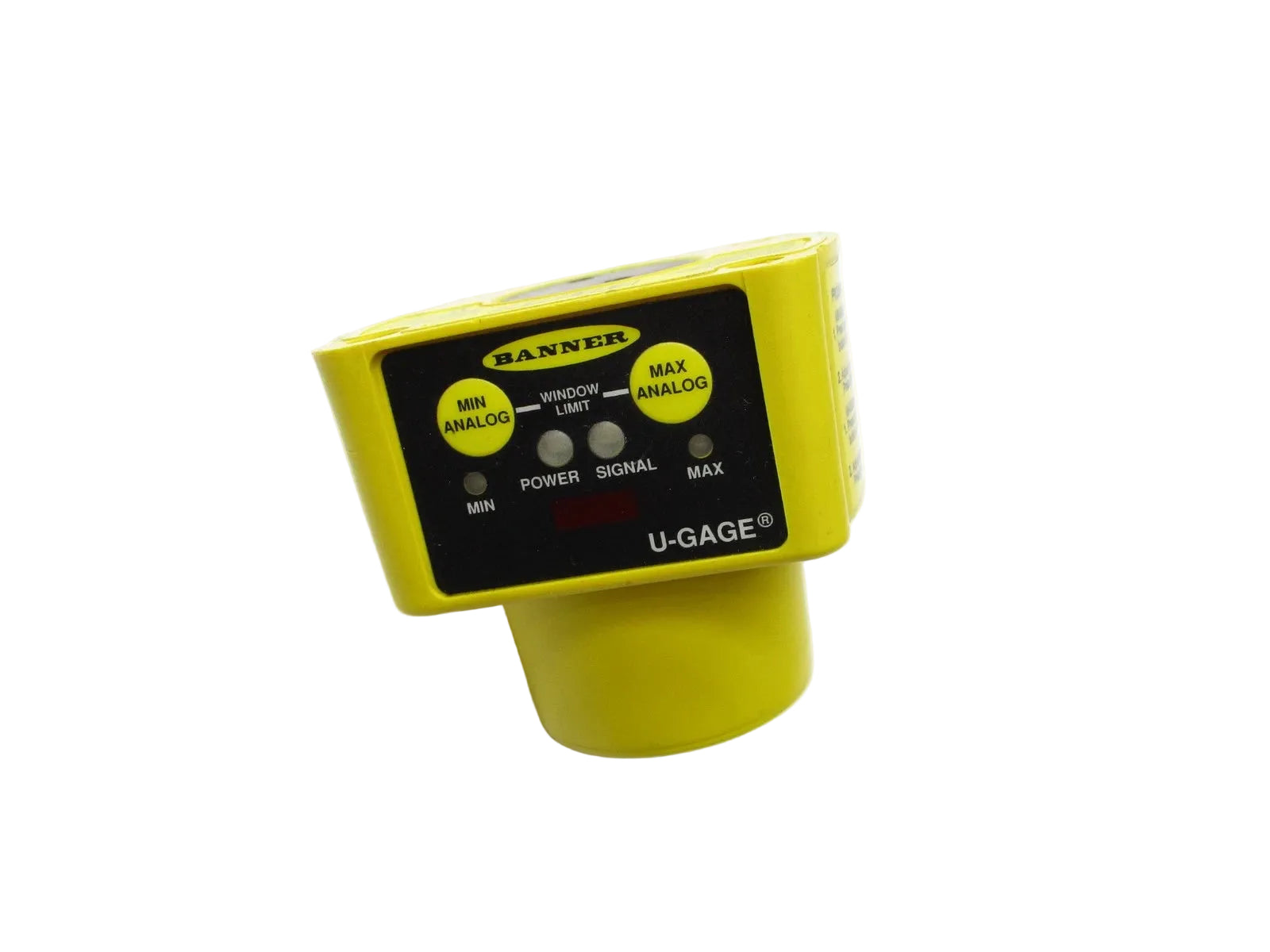

QT50ULBQ6 | Banner Engineering QT50U Series Ultrasonic Proximity Sensor 200–8000 mm
- Regular price
- $874.00
- Sale price
- $874.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QT50ULBQ6
Description
The Banner Engineering QT50ULBQ6 is a long-range ultrasonic proximity sensor designed for non-contact distance measurement in demanding industrial environments. It provides accurate analog output over a wide sensing range using ultrasonic technology with temperature compensation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Industrial Automation |
| Part Number | QT50ULBQ6 |
| Subcategory | Ultrasonic Proximity Sensors |
| Sensor Type | Ultrasonic Proximity Sensor |
| Series | QT50U Series |
| Measurement Range | 200 mm to 8 m |
| Sensing Technology | Ultrasonic |
| Output Type | Analog |
| Analog Output Options | 0–10 VDC or 4–20 mA |
| Supply Voltage | 10–30 VDC |
| Connection Type | M12 Connector |
| Number of Pins | 5-Pin |
| Mounting Style | Flange Mount |
| Housing Material | Plastic |
| Ingress Protection | IP67 |
| Temperature Compensation | Yes |
| Operating Temperature Range | -20 to +70 °C |
| Maximum Frequency | 75 kHz |
| Indicator Type | LED Status Indicators |
| Weight | 1.1 lb |
Information About QT50ULBQ6
The QT50ULBQ6 is part of Banner Engineering’s QT50U series, developed to provide reliable long-range ultrasonic sensing for industrial automation and material handling applications. This sensor is capable of detecting targets regardless of color, transparency, or surface finish, making it suitable for challenging environments where optical sensors may be ineffective. It incorporates temperature compensation to maintain measurement accuracy across varying ambient conditions. The rugged encapsulated design with protected transducer supports consistent operation in harsh industrial settings.
Key Features:
- Long-Range Ultrasonic Sensing: Measures distances from 200 mm up to 8 meters with minimal dead zone for flexible application coverage.
- Analog Output Flexibility: Supports both 0–10 VDC and 4–20 mA outputs for easy integration with PLCs and control systems.
- Temperature Compensation: Automatically adjusts sensing performance to maintain accuracy across changing environmental temperatures.
- Push-Button Configuration: Allows quick and straightforward setup without external programming tools.
- High-Visibility LED Indicators: Provides clear visual feedback for power status, setup, and operation.
- Rugged Industrial Housing: Encapsulated plastic enclosure with IP67 protection supports use in harsh environments.
- Quick-Disconnect Interface: M12 5-pin connector simplifies installation, maintenance, and replacement.
The QT50ULBQ6 delivers the reliability and precision required for long-range ultrasonic distance measurement in industrial automation and proximity sensing applications.
