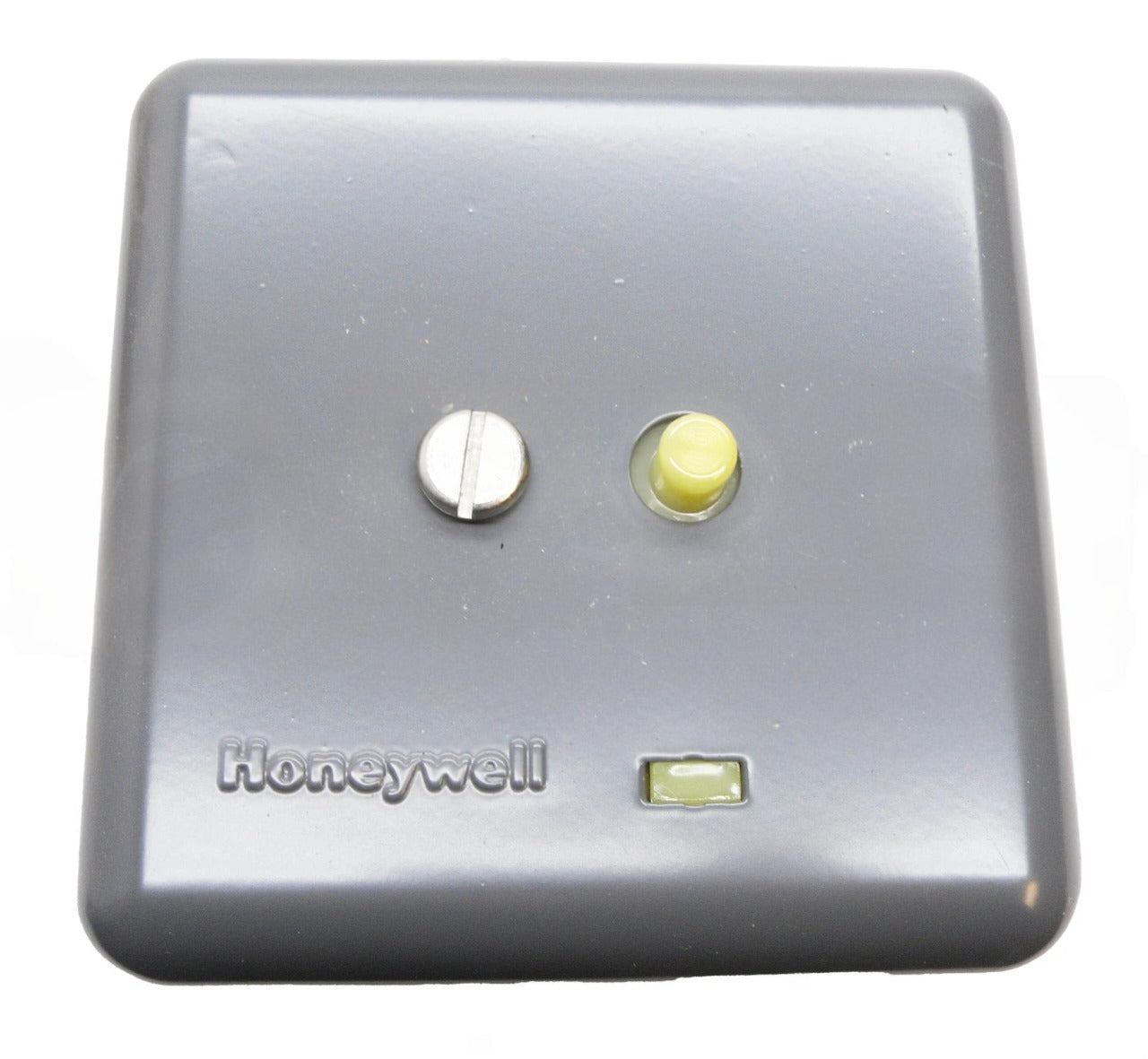

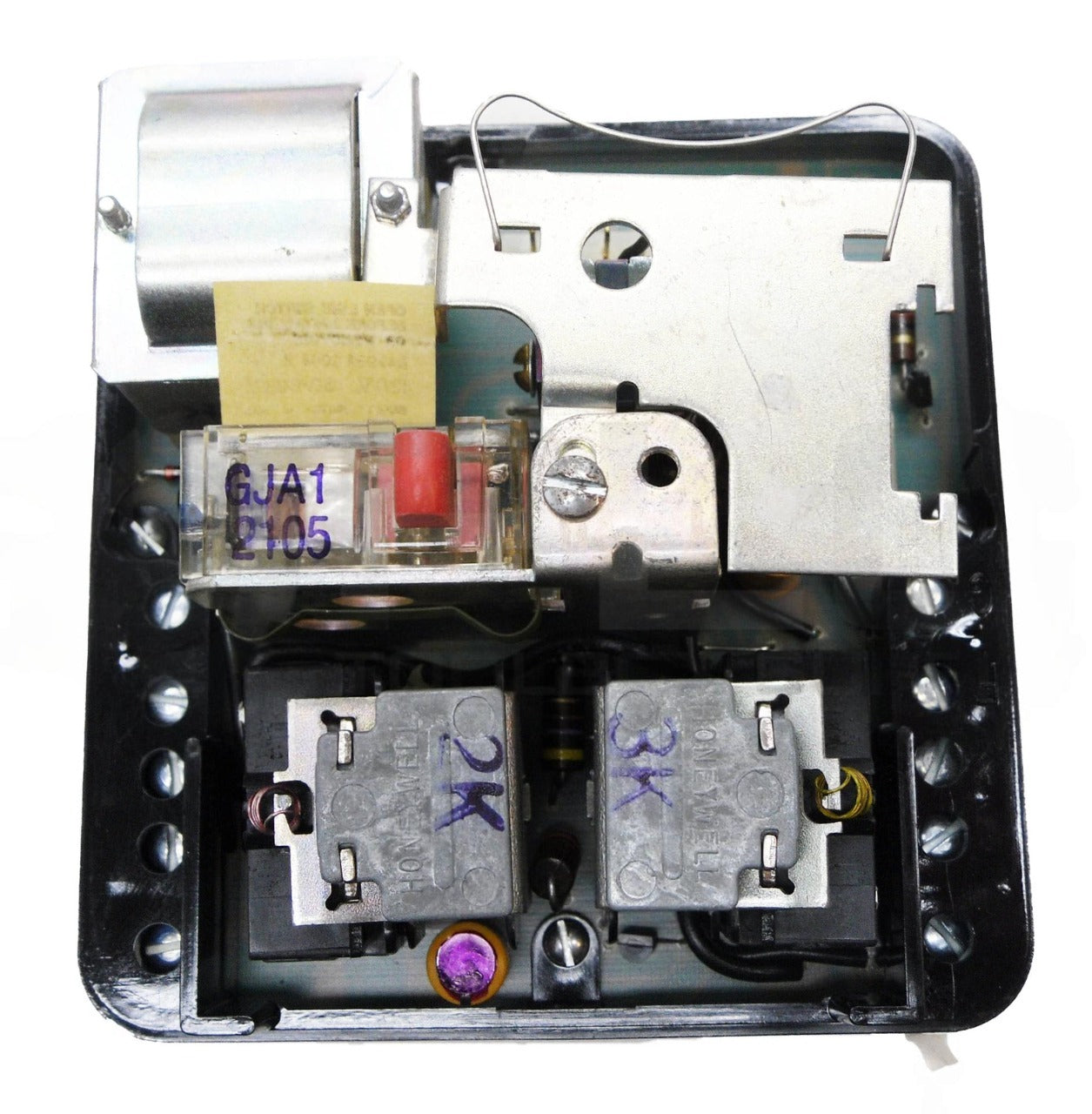

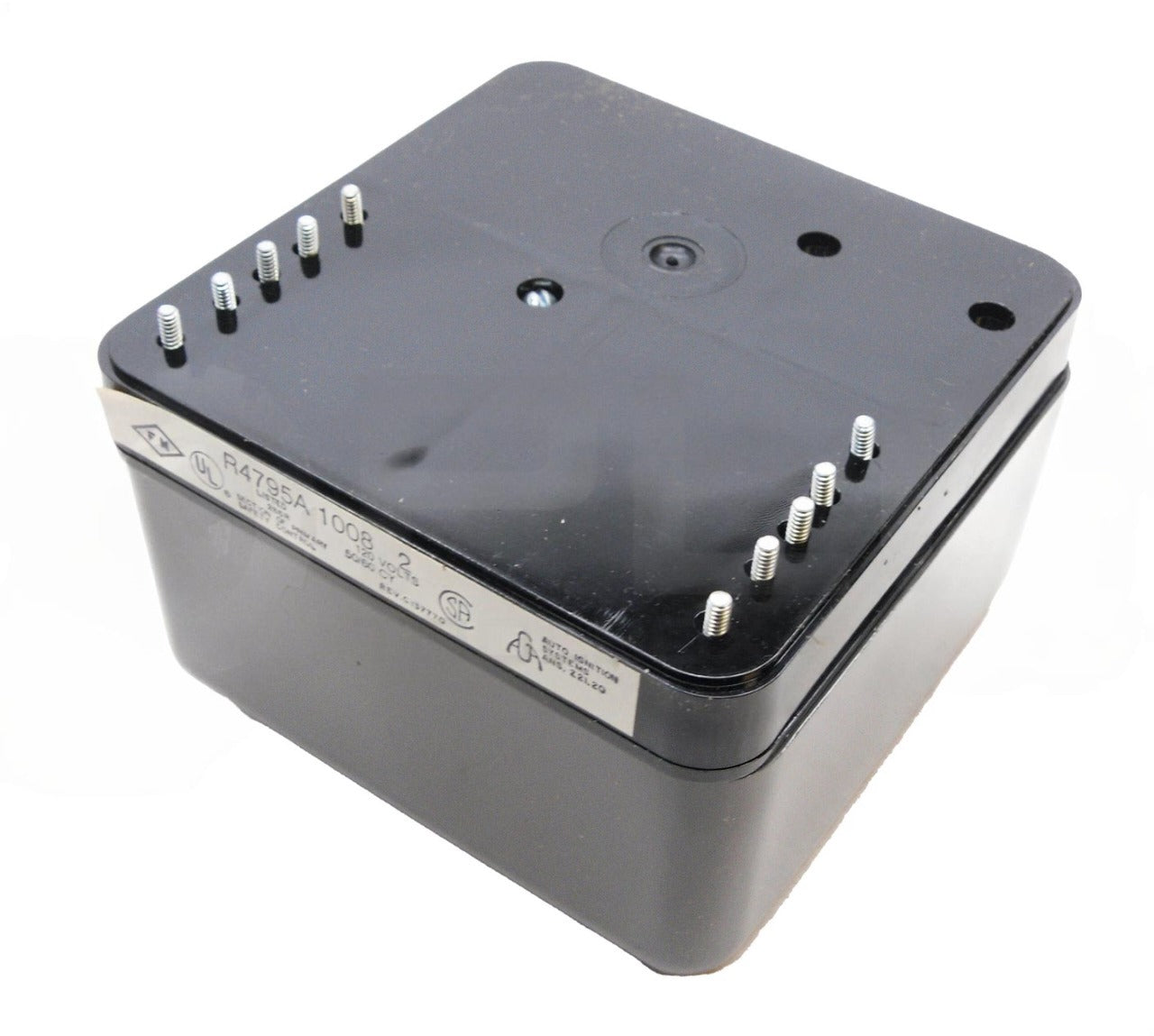

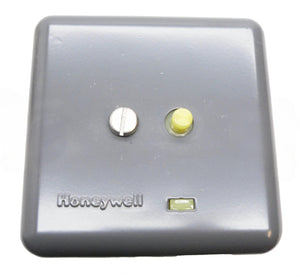

R4795A 1008 | Honeywell Boiler FSG Programming Relay
- Regular price
- $1,870.00
- Sale price
- $1,870.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: R4795A 1008
Description
The Honeywell R4795A 1008 is a flame safeguard programming relay designed for use in gas, oil, and coal-fired burner systems. Operating at 120V, 50/60 Hz, this solid-state control module ensures reliable burner management through integrated safety features, flame detection compatibility, and configurable prepurge timing.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Flame Safety Products
|
| Part Number | R4795A 1008 |
| Subcategory | Flame Safety Accessory |
| Voltage | 120V |
| Frequency | 50/60 Hz |
| Compatible Fuels |
Gas, Oil, Coal |
| Flame Detection Type | UV or Rectification (via plug-in amplifier) |
| Prepurge Timing | Variable (with plug-in timer card) |
| Flame Failure Response | Recycle through prepurge or lockout if pilot not established |
| Alarm Contacts | None |
| Operating Temperature | -20°F to +125°F (-29°C to +52°C) |
| Electrical Connection | Mounting Screws |
| Mounting Base | Thermoplastic (Q270-style subbase) |
| Weight | 2.00 lbs |
Information About R4795A 1008
The R4795A 1008 is part of Honeywell’s Flame Safeguard (FSG) series and functions as a primary burner control for commercial and industrial boiler applications. It supports either electronic rectification or ultraviolet flame detection when used with the appropriate color-coded plug-in amplifier. The control performs a safe-start check to prevent startup in unsafe flame conditions and will lock out the system if a flame is not established during pilot trial. It also automatically recycles through a prepurge sequence if the flame signal is lost while in run. This model allows for variable prepurge durations through plug-in purge timers and offers built-in protection against ignition crossover in flame rod systems. With a rugged thermoplastic base and captive mounting screws, it is easy to install and service. The R4795A1008 weighs approximately 2.00 lbs and is rated for ambient temperatures from -20°F to +125°F (-29°C to +52°C).
Key Features:
- Flexible Flame Detection: Supports UV or rectification detection with plug-in amplifiers.
- Variable Prepurge: Adjustable timing with plug-in purge timer cards.
- Automatic Recycle: Returns to prepurge if flame is lost during operation.
- Safe-Start Logic: Prevents startup when unsafe flame conditions are detected.
- Solid-State Reliability: Durable electronics ensure stable performance over time.
- No Alarm Contacts: Streamlined model for systems not requiring external alert circuits.
- Easy Installation: Captive screws and thermoplastic subbase simplify mounting and replacement.
The R4795A 1008 offers dependable flame supervision and burner control with flexible configuration and safety protections.
