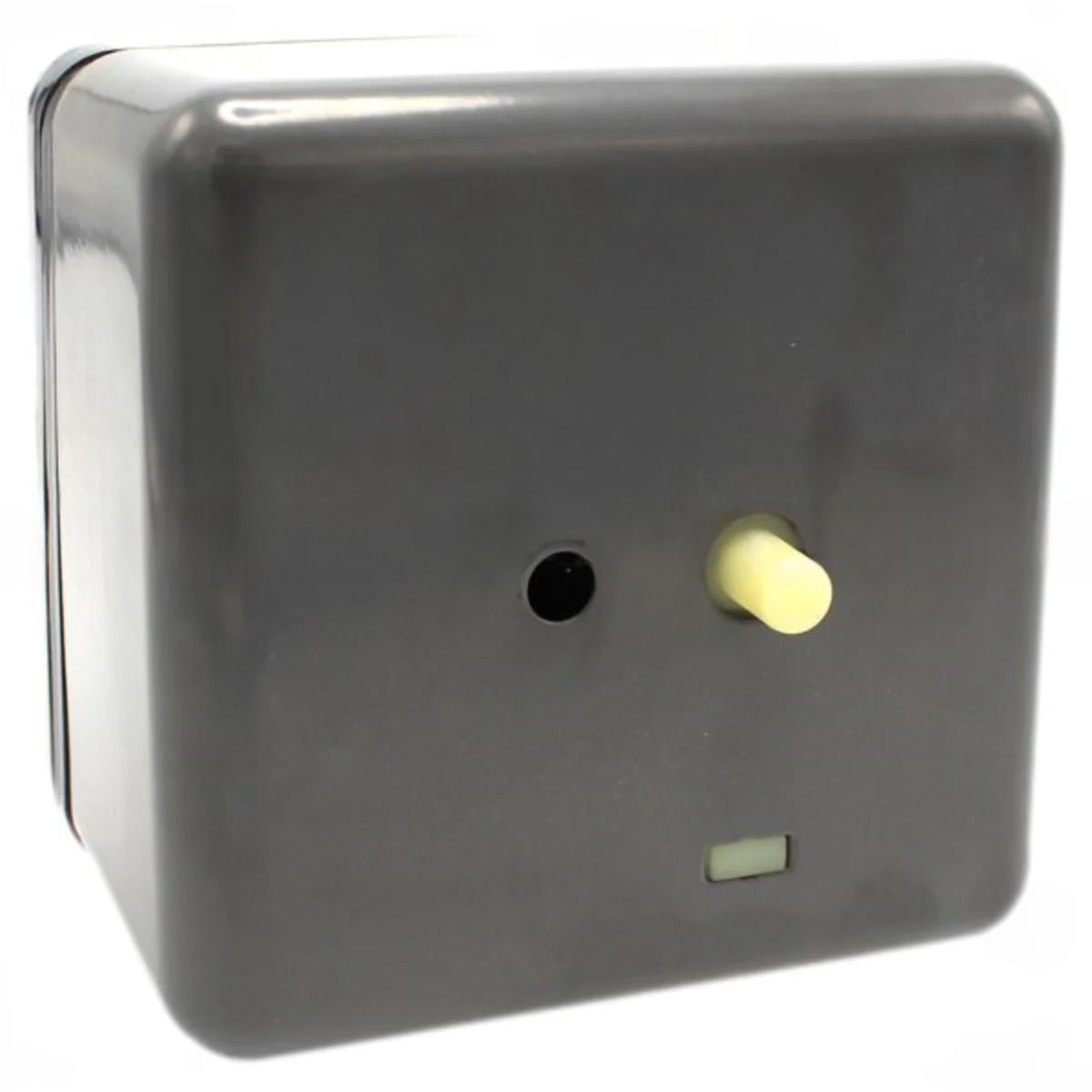

R4795A1016 | Honeywell Primary Control 120 V
- Regular price
- $2,249.00
- Sale price
- $2,249.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: R4795A1016
Description
The Honeywell R4795A1016 is a flame safeguard primary control module designed for use in burner and boiler safety systems. Operating on 120 VAC, it provides dependable ignition sequence control, safety lockout, and flame supervision for oil or gas-fired burners in commercial and industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Flame Safety Products
|
| Part Number | R4795A1016 |
| Subcategory | Flame Safety Timing Module |
| Control Type | FSG (Flame Safeguard) |
| Safety Lockout Timing | 15 seconds |
| Switch Type |
SPDT (Single-Pole, Double-Throw) |
| Voltage | 120 VAC |
| Frequency | 50/60 Hz |
| Ambient Temperature Range | -20°F to +125°F (–29°C to +52°C) |
| Electrical Connections | Mounting screws |
| Mounting Base | Q270A1024 subbase |
| Weight | 2.35 lbs |
Information About R4795A1016
The R4795A1016 is part of Honeywell’s flame safeguard control family and is built to manage burner startup and shutdown processes reliably. It features a 15-second safety lockout timing and includes an SPDT (Single-Pole, Double-Throw) switch configuration for alarm signaling and interlock feedback. This module is designed to mount directly onto the Q270A1024 subbase using captive mounting screws, streamlining installation and serviceability. With an ambient operating temperature range of -20°F to +125°F (-29°C to +52°C), the R4795A1016 is well-suited for operation in demanding field environments. Weighing 2.35 lbs, it offers solid-state performance for systems requiring 120 VAC at 50/60 Hz.
Key Features:
- 15-Second Safety Lockout: Initiates a system lockout if flame is not proven within the trial-for-ignition period.
- SPDT Alarm Contacts: Provides status indication or alarm feedback for integration with supervisory systems.
- 120 VAC Operation: Designed for use in standard line-voltage burner control circuits.
- Wide Temperature Range: Suitable for environments ranging from -20°F to +125°F.
- Reliable Mounting: Installs easily on Honeywell’s Q270A1024 subbase with secure screw terminals.
- Flame Supervision: Works with compatible flame amplifiers to monitor burner flame integrity.
The R4795A1016 delivers reliable, code-compliant primary burner safety control in a durable and field-serviceable format.
