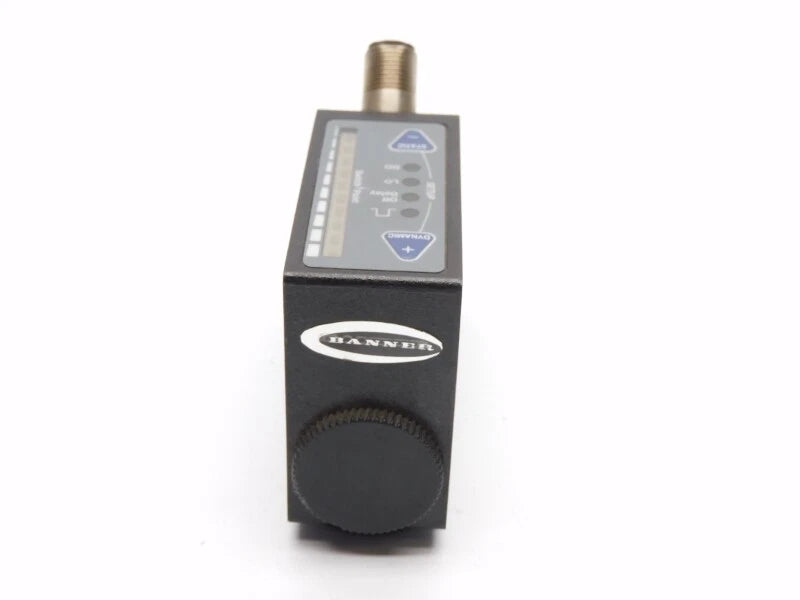

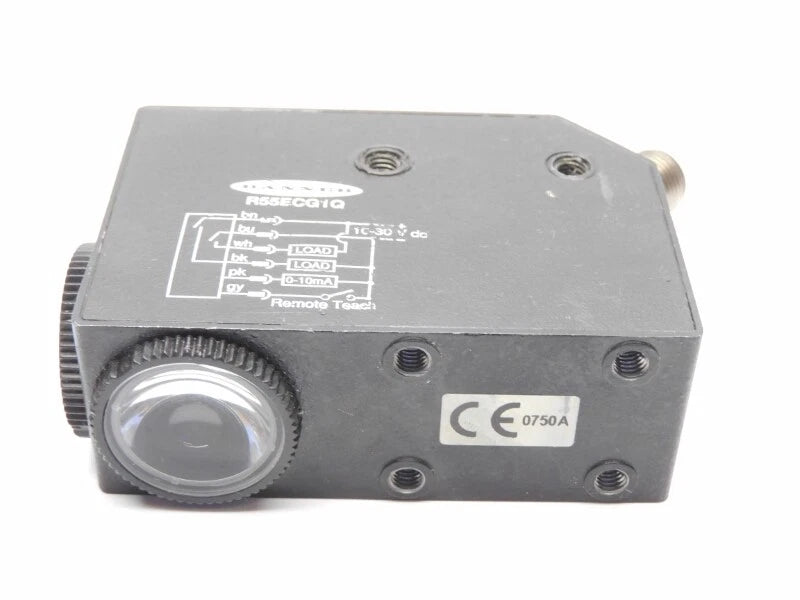

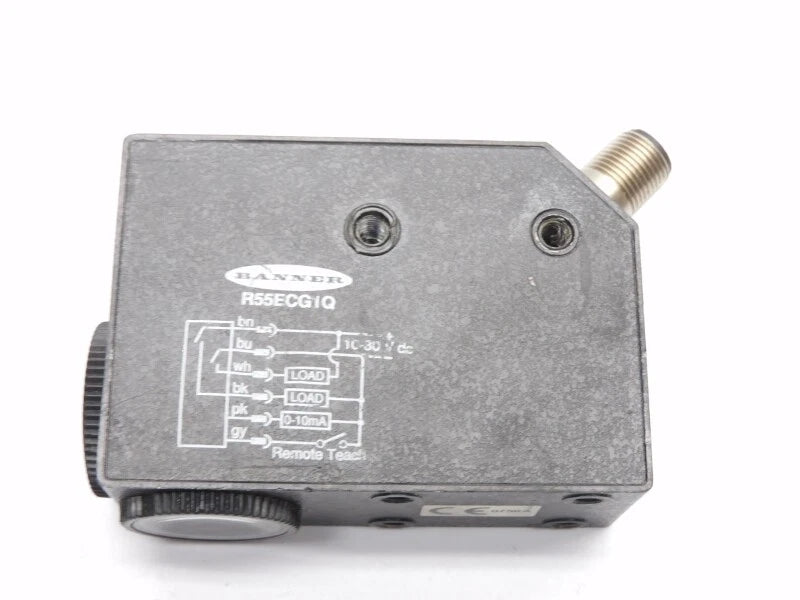

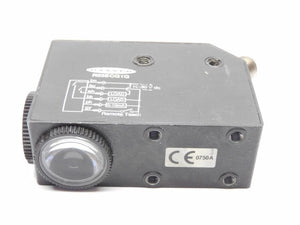

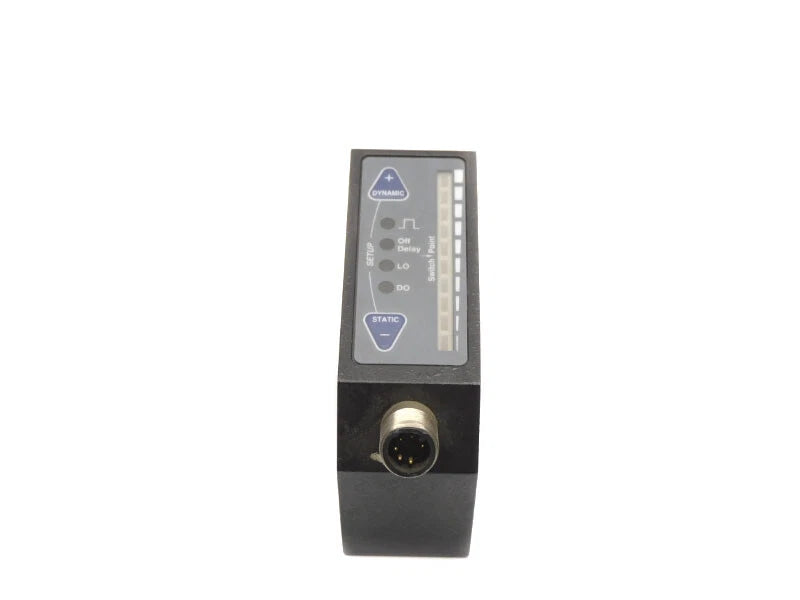

R55ECG1Q | Banner Engineering R55 Expert Convergent Color Mark Sensor
- Regular price
- $1,255.00
- Sale price
- $1,255.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R55ECG1Q
Description
The Banner Engineering R55ECG1Q color mark sensor is a convergent optical sensor designed for precise color and contrast detection in industrial automation systems. Utilizing a blue-green LED sensing beam, this sensor provides reliable non-contact detection for high-speed packaging, printing, and material handling applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | R55ECG1Q |
| Subcategory | Color Mark Sensors |
| Series | R55 Expert Color Mark Series |
| Sensor Type | Color Mark / Contrast Sensor |
| Optical Design | Convergent |
| Parallel Focal Point | 10 mm |
| Light Source | Blue-Green LED |
| Supply Voltage | 10–30 VDC |
| Discrete Output Type | Bipolar NPN/PNP |
| Analog Output | 0–10 mA |
| Operation Modes | Dark-ON / Light-ON |
| Indicator | Bargraph |
| Connection Type | M12 Integral Quick Disconnect |
| Number of Pins | 6 |
| Application Use | Color Mark Detection |
| Operating Environment | Industrial |
| Weight | 0.89 lbs |
Information About R55ECG1Q
The R55ECG1Q is part of Banner Engineering’s R55 Expert Color Mark Series, developed for high-accuracy color discrimination at close sensing distances. This sensor features a convergent optical design with a fixed parallel focal point of 10 mm, ensuring consistent detection performance on moving targets. It operates on a 10–30 VDC power supply and supports both bipolar NPN/PNP discrete outputs and a 0–10 mA analog output for flexible system integration. Designed with an integral M12 quick-disconnect connector and a built-in bargraph indicator, it supports efficient installation, setup, and diagnostics in industrial environments.
Key Features:
- Convergent Color Mark Sensing: Optimized for accurate detection at a fixed 10 mm focal distance.
- Blue-Green LED Light Source: Enhances contrast detection across a wide range of colors and materials.
- Bipolar NPN/PNP Outputs: Supports flexible wiring for compatibility with various control systems.
- Analog Output Capability: Provides a 0–10 mA signal for monitoring and fine adjustment.
- Integrated Bargraph Indicator: Offers real-time visual feedback for signal strength and alignment.
- M12 Quick-Disconnect Connector: Ensures secure, vibration-resistant electrical connections.
- Expert Series Performance: Designed for high-speed and high-precision industrial sensing tasks.
The R55ECG1Q delivers the reliability and precision required for industrial color mark detection and automated inspection applications.
