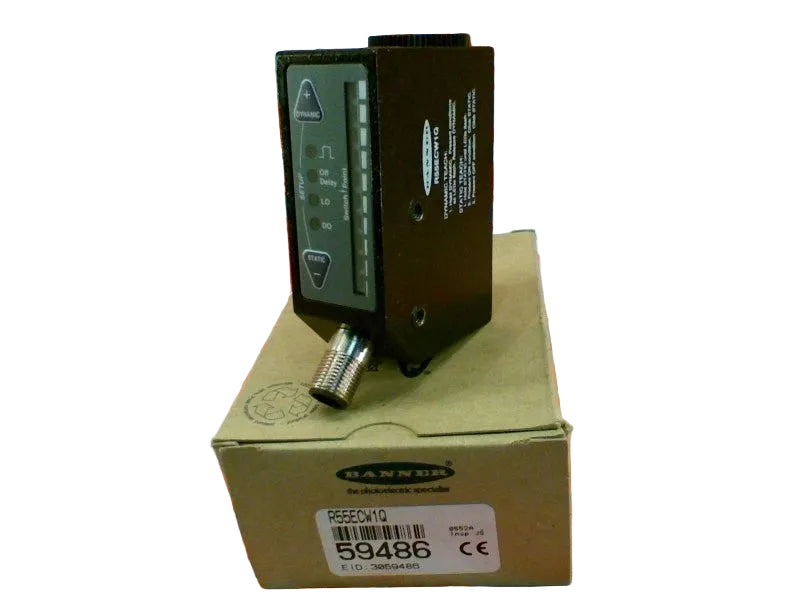

R55ECW1Q | Banner Engineering R55 Expert Color Mark Sensor, White LED
- Regular price
- $919.00
- Sale price
- $919.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R55ECW1Q
Description
The Banner Engineering R55ECW1Q color mark sensor is a convergent optical sensor designed for precise color and contrast detection in industrial automation systems. Using a white LED light source and advanced signal processing, this sensor provides reliable mark recognition for packaging, printing, and material handling applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | R55ECW1Q |
| Subcategory | Color Mark Sensors |
| Series | R55 Color Mark Series |
| Sensor Type | Color / Contrast Sensor |
| Sensing Mode | Color x1 |
| Measurement Range | 10 mm |
| Optical Design | Convergent |
| Light Source | White LED |
| Supply Voltage | 10–30 VDC |
| Discrete Output Type | Bipolar NPN/PNP |
| Analog Output | 0–10 mA |
| Operation Modes | Dark-ON, Light-ON |
| Indicator | Bargraph |
| Connection Type | M12 Integral Connector |
| Number of Pins | 6 |
| Housing Material | Zinc Alloy Die-Cast |
| Lens Material | Acrylic |
| IP Rating | IP67 |
| NEMA Rating | 6 |
| Operating Temperature | -10°C to 55°C |
| Weight | 0.99 lbs |
Information About R55ECW1Q
The R55ECW1Q is part of Banner Engineering’s R55 Expert Color Mark Series, developed for high-accuracy color and contrast sensing at close range. This sensor features a convergent optical design with a fixed 10 mm parallel focal point, ensuring consistent detection performance on fast-moving materials. It operates on a 10–30 VDC supply and supports both bipolar NPN/PNP discrete outputs and a 0–10 mA analog output for flexible system integration. Housed in a rugged zinc alloy die-cast body with IP67 protection, it is well suited for harsh industrial environments.
Key Features:
- Convergent Color Mark Sensing: Optimized for accurate detection at a fixed 10 mm sensing distance.
- White LED Light Source: Enhances contrast differentiation across a wide range of colors and materials.
- Bipolar NPN/PNP Outputs: Supports flexible discrete output wiring configurations.
- Analog Output Capability: Provides a 0–10 mA signal for advanced monitoring and diagnostics.
- Integrated Bargraph Indicator: Allows visual confirmation of signal strength and alignment.
- Rugged Industrial Housing: Zinc alloy die-cast construction with IP67 protection for harsh environments.
- M12 Integral Connector: Ensures secure, vibration-resistant electrical connections.
The R55ECW1Q delivers the reliability and precision required for high-speed color mark detection and industrial inspection applications.
