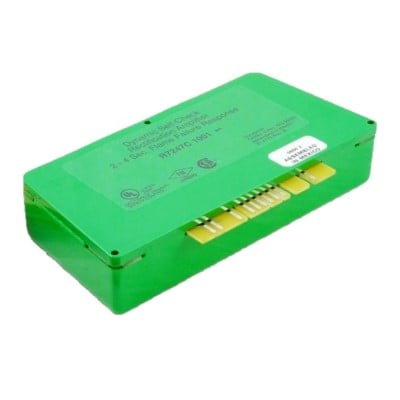

R7247C1001 | Honeywell Flame Amplifier Dynamic Self-Check
- Regular price
- $2,999.00
- Sale price
- $2,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: R7247C1001
Description
The R7247C1001 is a solid-state rectification flame amplifier designed to detect ultraviolet flame signals in combustion systems. With a 2–4 second flame failure response time, it ensures reliable operation in safety-critical applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Flame Safety Products
|
| Part Number | R7247C1001 |
| Subcategory | Flame Safety Amplifier |
| Type | Rectification Flame Amplifier |
| Flame Detector Type | UV (C7012E/F Series) |
| Construction | Solid-State, Plug-In |
| Flame Failure Response | 2–4 seconds |
| Input Voltage | 102–132 VAC |
| Frequency | 50/60 Hz |
| Self-Check Function | Dynamic, Continuous |
| Application | Gas/Oil Burner Flame Monitoring |
| Mounting Style | Plug-in Module |
| Compatibility | Honeywell Flame Safeguard Controls |
| Product Status | Discontinued by Manufacturer |
| Certifications | UL recognized (when used with matching flame detectors) |
| Weight | 0.45 lbs |
Information About R7247C1001
The R7247C1001 is a discontinued plug-in rectification amplifier from Honeywell’s flame safeguard product line. Designed for use with C7012E or C7012F ultraviolet flame detectors, it processes UV signals to determine flame presence in gas and oil burners. Its solid-state construction enhances durability, and the built-in dynamic self-check functionality supports continuous system integrity monitoring. Operating at 102–132 VAC, this unit provides a dependable interface between UV flame sensors and safety control modules.
Key Features:
- Flame Signal Amplification: Converts UV sensor signals into usable control outputs for burner safety systems.
- Dynamic Self-Check: Continuously verifies system performance to ensure safe burner operation.
- Ultraviolet Compatibility: Specifically engineered for use with C7012E and C7012F flame detectors.
- Plug-In Design: Modular construction allows for quick and easy installation or replacement.
- Fast Response Time: Detects flame loss within 2 to 4 seconds, enabling rapid safety shutdowns.
- Solid-State Electronics: Offers high reliability and minimal maintenance over extended service life.
- Voltage Range: Operates within a 102–132 VAC range at 50/60 Hz, suitable for standard power systems.
- System Integration: Compatible with Honeywell flame safeguard systems used in industrial burners.
- Compact and Lightweight: Weighs only 0.45 lbs, facilitating installation into control panels.
- Discontinued Model: No longer in production, but still used in legacy systems for safety assurance.
The R7247C1001 delivers the fast, accurate flame monitoring required for reliable burner safety system performance.
