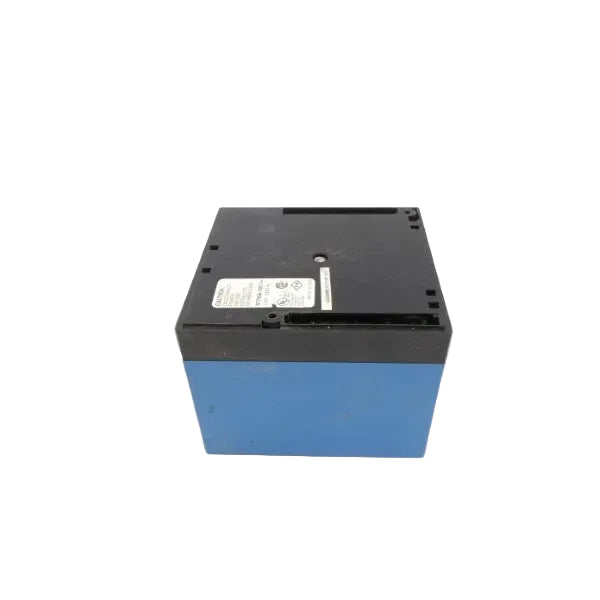

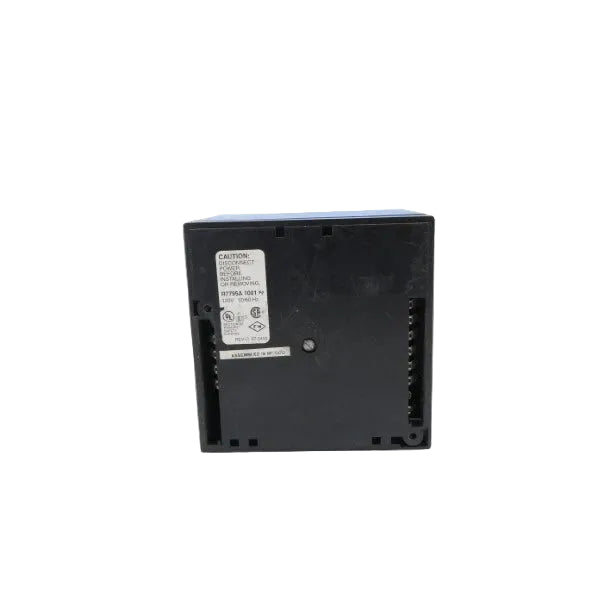

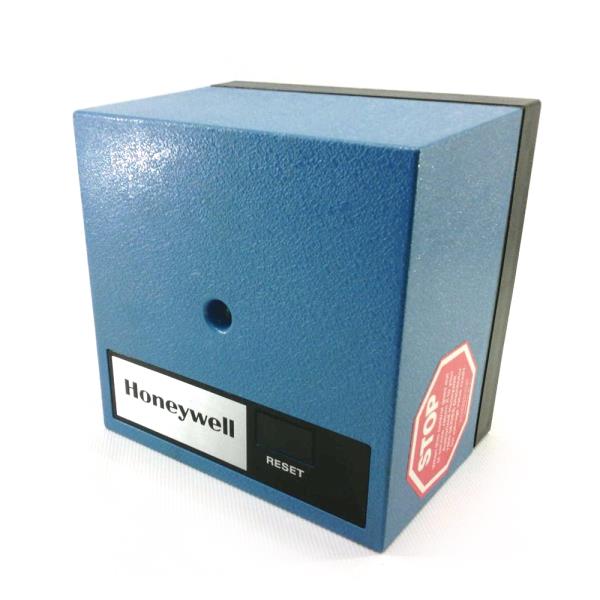

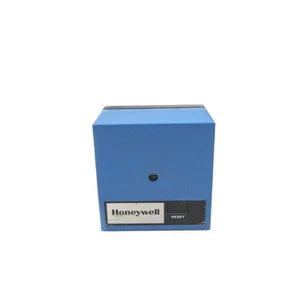

R7795A1001 | Honeywell Primary Flame Safeguard Burner Control
R7795A1001 | Honeywell Primary Flame Safeguard Burner Control
R7795A1001 | Honeywell Primary Flame Safeguard Burner Control
    R7795A1001 | Honeywell Primary Flame Safeguard Burner Control
R7795A1001 | Honeywell Primary Flame Safeguard Burner Control

R7795A1001 | Honeywell Primary Flame Safeguard Burner Control

Part #: R7795A1001 Manufactured by: Honeywell
Regular price
$3,299.00
Sale price
$3,299.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Honeywell R7795A1001 is a primary burner control with UV flame sensing, alarm outputs, and prepurge timing for commerc...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: R7795A1001
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Honeywell
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: R7795A1001

Description / Specifications

Description

The Honeywell R7795A1001 is a full-function primary flame safeguard control that provides critical flameout protection and burner management for commercial and industrial oil-fired burners. Featuring ultraviolet flame sensing, intermittent pilot support, and integrated safety features, it ensures safe burner operation and reliable system shutdown during fault conditions.





Technical Specifications

Condition New/Never Used Surplus
Brand Honeywell
Category
Safety Systems
Part Number R7795A1001
Subcategory Safety Relay
Flame Sensing Type Ultraviolet (UV) – Purple-coded amplifier
Voltage 120 VAC
Frequency
50 / 60 Hz
Prepurge Timer Options 1.5, 7, 10, 30, 60, or 90 seconds (plug-in)
Temperature Range -40°F to 135°F
Fuel Type Oil
Airflow Verification Line voltage airflow switch supported
Mounting Base Q795A Subbase (2 captive screws)
Dimensions 5" H × 5" W × 5-1/4" D
Weight 2.96 lbs





Information About R7795A1001

The R7795A1001 burner control is part of Honeywell’s robust flame safeguard product line and is designed for use in oil-burning systems that require interrupted ignition or intermittent pilot sequences. Operating at 120 VAC and supporting 50/60 Hz frequency, this control includes alarm contacts and a plug-in prepurge timer (configurable from 1.5 to 90 seconds). It uses a color-coded UV amplifier (purple) to detect flame presence and supports automatic lockout if flame is sensed at an incorrect time—preventing unsafe startups. The unit is mounted on a Q795A subbase and features a line-voltage airflow switch to verify airflow during the prepurge and run cycles.

Key Features:

  • Ultraviolet Flame Detection: Supports UV flame sensing through a purple-coded amplifier for reliable flame signal recognition.
  • Prepurge Timer Compatibility: Accepts plug-in timers with durations from 1.5 to 90 seconds for prepurge sequencing.
  • Intermittent Pilot and Interrupted Ignition: Provides flexible burner startup sequences to fit various system designs.
  • Alarm and Lockout Functions: Offers flame failure lockout and alarm output to alert operators to unsafe conditions.
  • Wide Temperature Range: Operates reliably from -40°F to 135°F in challenging industrial environments.
  • Mounting Simplicity: Installs on a Q795A subbase using two captive screws for fast service and replacement.
  • Airflow Verification: Includes line-voltage airflow switch support to ensure proper combustion air during operation.

The R7795A1001 safeguards combustion processes by coordinating safe ignition, flame sensing, and emergency shutdown operations.

IQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Honeywell R7795A1001 is a full-function primary flame safeguard control that provides critical flameout protection and burner management for commercial and industrial oil-fired burners. Featuring ultraviolet flame sensing, intermittent pilot support, and integrated safety features, it ensures safe burner operation and reliable system shutdown during fault conditions.





Technical Specifications

Condition New/Never Used Surplus
Brand Honeywell
Category
Safety Systems
Part Number R7795A1001
Subcategory Safety Relay
Flame Sensing Type Ultraviolet (UV) – Purple-coded amplifier
Voltage 120 VAC
Frequency
50 / 60 Hz
Prepurge Timer Options 1.5, 7, 10, 30, 60, or 90 seconds (plug-in)
Temperature Range -40°F to 135°F
Fuel Type Oil
Airflow Verification Line voltage airflow switch supported
Mounting Base Q795A Subbase (2 captive screws)
Dimensions 5" H × 5" W × 5-1/4" D
Weight 2.96 lbs





Information About R7795A1001

The R7795A1001 burner control is part of Honeywell’s robust flame safeguard product line and is designed for use in oil-burning systems that require interrupted ignition or intermittent pilot sequences. Operating at 120 VAC and supporting 50/60 Hz frequency, this control includes alarm contacts and a plug-in prepurge timer (configurable from 1.5 to 90 seconds). It uses a color-coded UV amplifier (purple) to detect flame presence and supports automatic lockout if flame is sensed at an incorrect time—preventing unsafe startups. The unit is mounted on a Q795A subbase and features a line-voltage airflow switch to verify airflow during the prepurge and run cycles.

Key Features:

  • Ultraviolet Flame Detection: Supports UV flame sensing through a purple-coded amplifier for reliable flame signal recognition.
  • Prepurge Timer Compatibility: Accepts plug-in timers with durations from 1.5 to 90 seconds for prepurge sequencing.
  • Intermittent Pilot and Interrupted Ignition: Provides flexible burner startup sequences to fit various system designs.
  • Alarm and Lockout Functions: Offers flame failure lockout and alarm output to alert operators to unsafe conditions.
  • Wide Temperature Range: Operates reliably from -40°F to 135°F in challenging industrial environments.
  • Mounting Simplicity: Installs on a Q795A subbase using two captive screws for fast service and replacement.
  • Airflow Verification: Includes line-voltage airflow switch support to ensure proper combustion air during operation.

The R7795A1001 safeguards combustion processes by coordinating safe ignition, flame sensing, and emergency shutdown operations.
