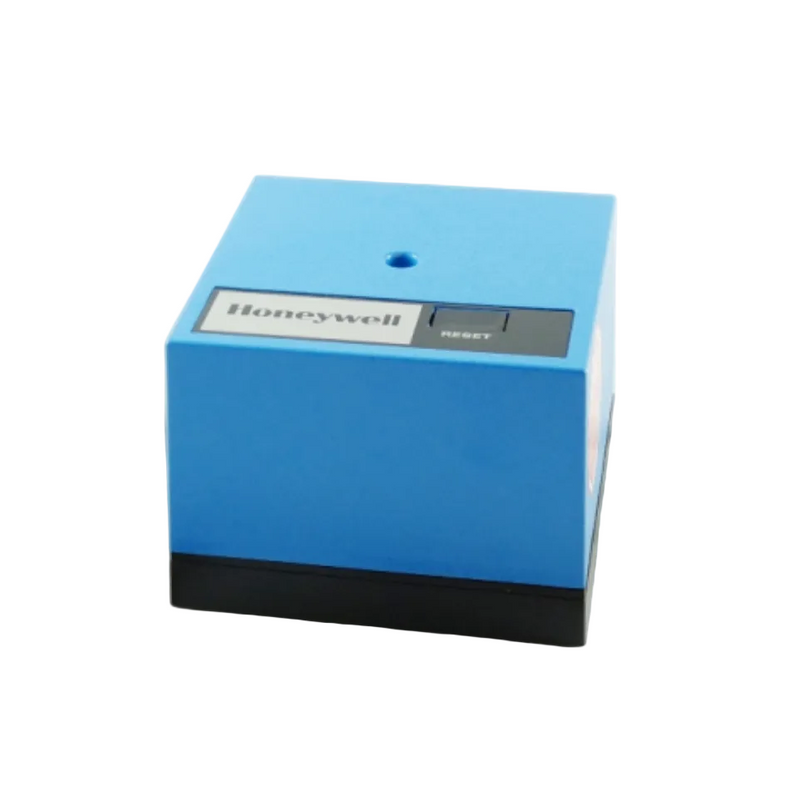

R7795B1009 | Honeywell Intermittent Pilot Primary Burner Control 120 VAC
- Regular price
- $2,849.05
- Sale price
- $2,849.05
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R7795B1009
Description
The Honeywell R7795B1009 is a solid-state primary control designed to provide flame safeguard protection for commercial and industrial single- or dual-fuel burners. It supports intermittent pilot operation with rectification-based flame detection and fast flame failure response.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Burner Controls |
| Part Number | R7795B1009 |
| Subcategory | Primary Burner Controls |
| Control Type | Primary safety control |
| Pilot Type | Intermittent pilot |
| Flame Detection | Rectification |
| Supply Voltage | 120 VAC |
| Supply Frequency | 50/60 Hz |
| Flame Failure Response Time | 3 seconds |
| Safety Switch Timing | 10–15 seconds |
| Alarm Output Voltage | 120 VAC |
| Prepurge Timer | Plug-in, selectable (1.5 to 90 s) |
| Airflow Switch Input | Line voltage |
| Operating Temperature | -40 to +135 °F |
| Mounting | Q795A wiring subbase |
| Weight | 2.0 lbs |
Information About R7795B1009
The R7795B1009 is part of Honeywell’s primary burner control lineup, engineered to provide reliable electronic flame safeguarding for industrial combustion systems. It uses rectification flame sensing and requires a compatible plug-in prepurge timer to define purge duration before ignition. The control mounts on a Q795A wiring subbase and includes airflow switch monitoring from the start of prepurge through the run cycle. Built-in safety logic prevents startup and enforces lockout if flame presence or flame-simulating faults are detected.
Key Features
- Primary Flame Safeguard Control: Designed to protect single- and dual-fuel burners by supervising flame presence during operation.
- Intermittent Pilot Operation: Supports controlled ignition sequences with intermittent pilot burner systems.
- Fast Flame Failure Response: Provides a 3-second flame failure response to minimize unsafe fuel conditions.
- Selectable Prepurge Timing: Uses plug-in prepurge timers with multiple selectable purge durations for application flexibility.
- Airflow Proving Input: Monitors a line-voltage airflow switch throughout prepurge and run periods.
- Rectification Flame Amplifier: Uses green-coded rectification sensing compatible with Honeywell flame detection systems.
- Wide Operating Temperature Range: Rated for reliable operation from -40 °F to +135 °F in industrial environments.
The R7795B1009 delivers the reliability and precision required for safe intermittent pilot burner control in commercial and industrial combustion systems.
