Product Description P/N: R7795C1007
Description

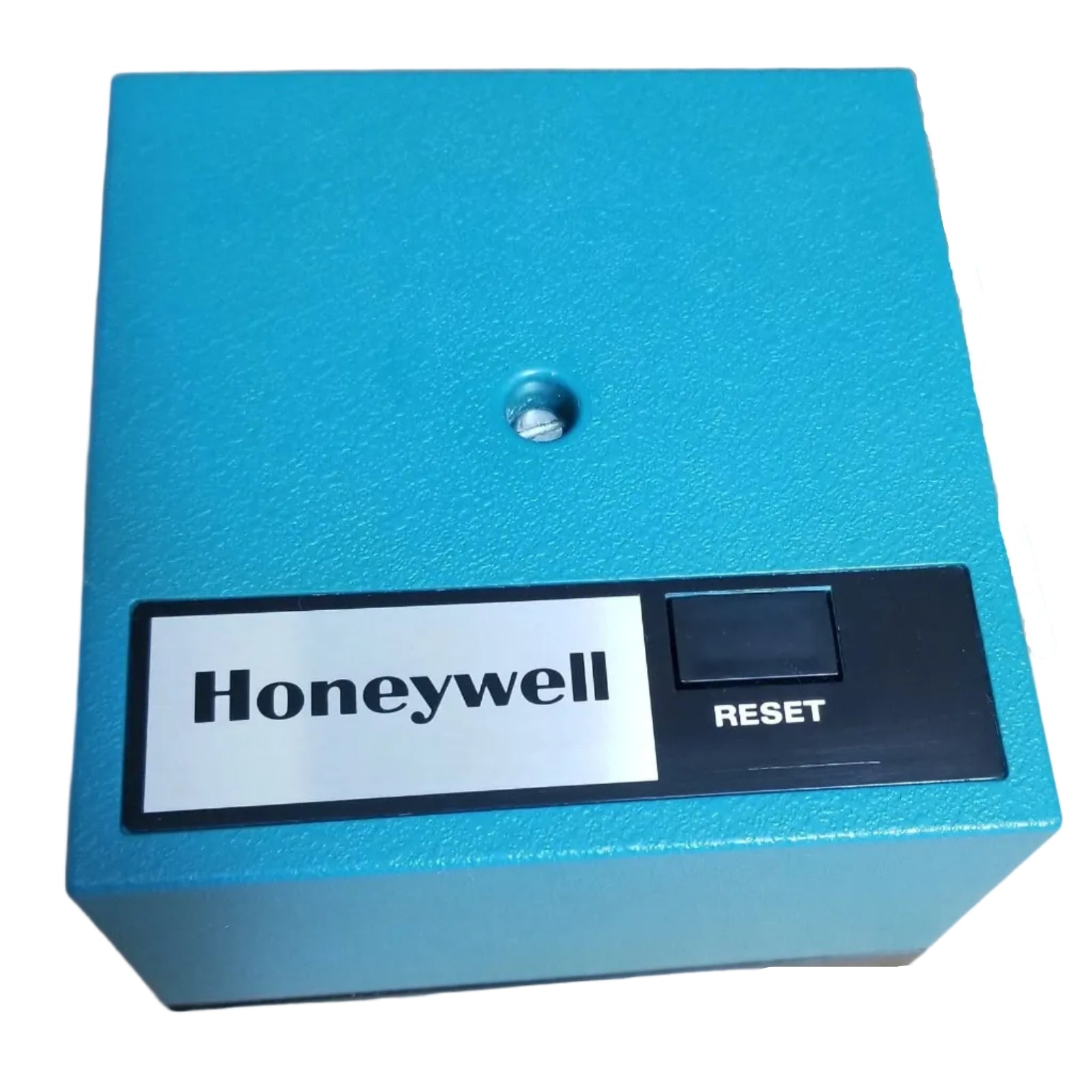

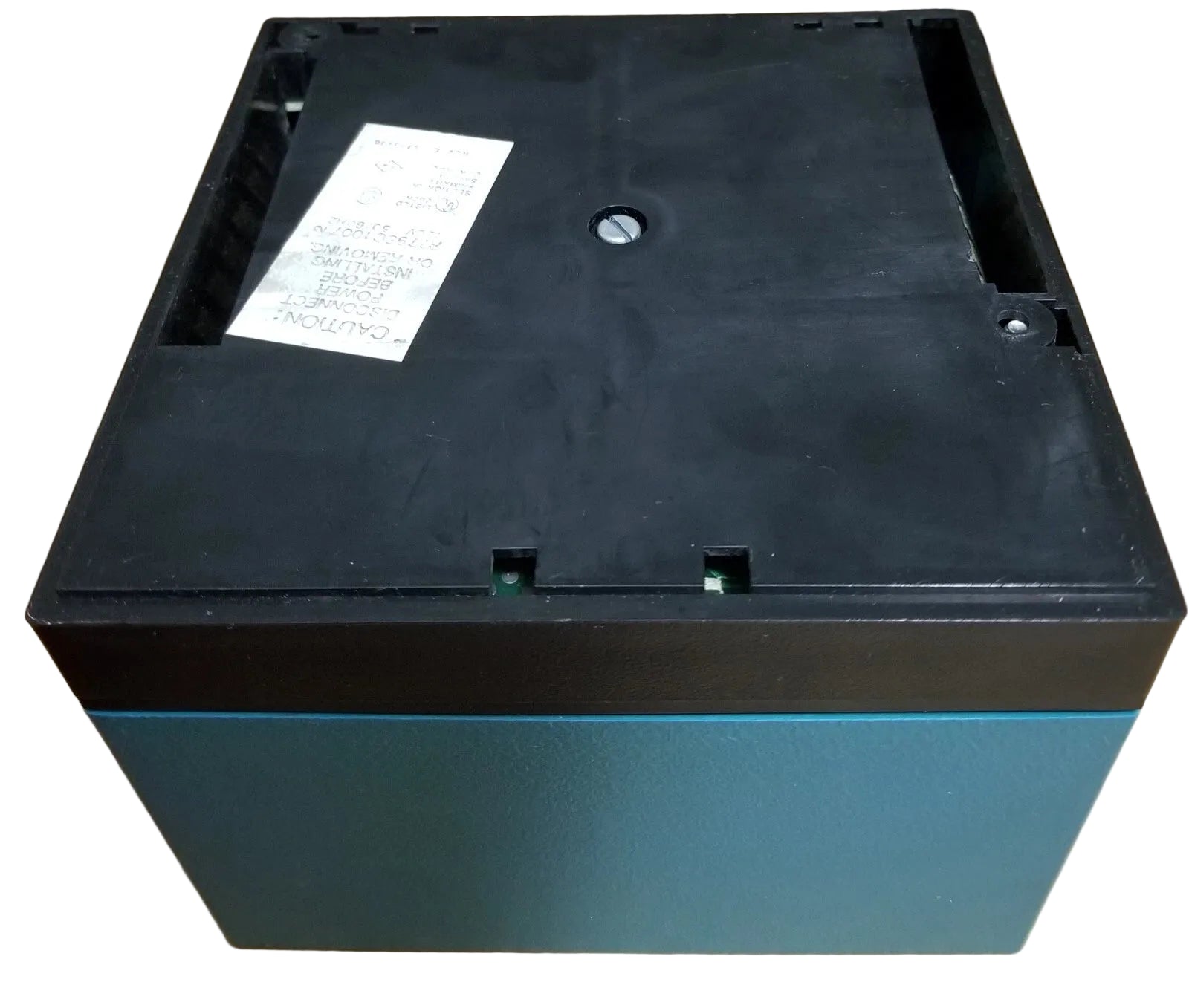

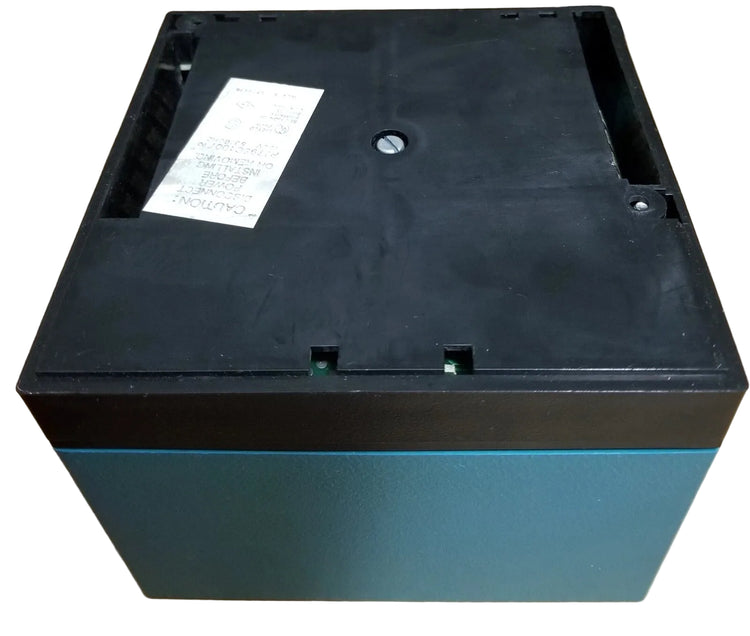

The Honeywell R7795C1007 is a solid-state primary safety control designed for intermittent pilot burner systems with ultraviolet flame detection. It provides fast flame failure response and reliable electronic flame safeguard protection for commercial and industrial single- or dual-fuel burners.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Burner Controls |
| Part Number | R7795C1007 |
| Subcategory | Primary Burner Controls |
| Control Type | Electronic programming relay |
| Pilot Type | Interrupted pilot |
| Flame Detection | Ultraviolet (UV) |
| Supply Voltage | 120 VAC |
| Supply Frequency | 50/60 Hz |
| Flame Failure Response Time | 3 seconds |
| Safety Switch Timing | 10–15 seconds |
| Prepurge Timer | Plug-in, selectable (1.5 / 7 / 10 / 30 / 60 / 90 s) |
| Airflow Switch Input | Line voltage |
| Mounting | Q795A wiring subbase |
| Operating Temperature | -40 to +135 °F |
| Weight | 2.1 lbs |
Information About R7795C1007
The R7795C1007 is part of Honeywell’s electronic primary control lineup developed for robust flame safeguard protection in industrial combustion systems. It uses ultraviolet flame sensing with a purple-coded amplifier and requires a compatible plug-in prepurge timer to define purge duration. The control mounts on a Q795A wiring subbase and continuously monitors airflow from the start of prepurge through the run period. Built-in lockout logic prevents unsafe startup conditions if flame presence or flame-simulating faults are detected.
Key Features
- Primary Flame Safeguard Control: Provides solid-state electronic protection for commercial and industrial burner applications.
- Interrupted Pilot Operation: Supports controlled ignition sequences for interrupted pilot burner systems.
- Ultraviolet Flame Detection: Uses UV sensing for reliable flame supervision in demanding combustion environments.
- Fast Flame Failure Response: 3-second response time minimizes unsafe fuel conditions during flame loss.
- Selectable Prepurge Timing: Requires plug-in timers offering multiple purge durations for application flexibility.
- Airflow Proving Capability: Monitors a line-voltage airflow switch throughout prepurge and burner operation.
- Wide Temperature Rating: Designed for operation from -40 to +135 °F in harsh industrial settings.
The R7795C1007 delivers the reliability and precision required for safe interrupted pilot burner control in industrial combustion systems.
