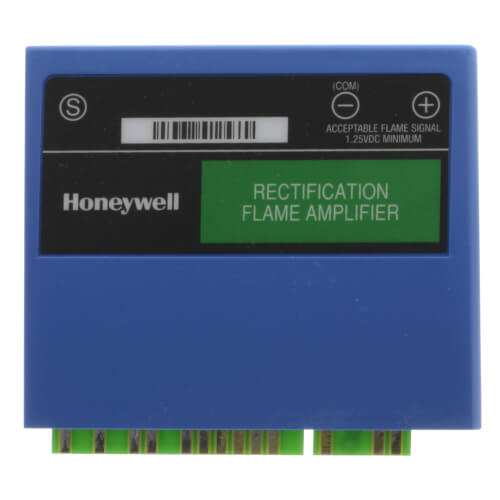

R7824C1002 | Honeywell Flame Signal Amplifier For 7800 Series Relay Modules With Dynamic Self Check
- Regular price
- $1,032.00
- Sale price
- $1,032.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R7824C1002
Description
The Honeywell R7824C1002 is a flame signal amplifier engineered for integration with Honeywell 7800 Series relay modules to provide accurate flame supervision. It processes rectification-based flame signals and supports fast response times to maintain safe and stable burner operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Burner Controls |
| Part Number | R7824C1002 |
| Subcategory | Flame Signal Amplifiers |
| Flame Detection Type | Rectification |
| Self-Check Function | Dynamic Self-Check |
| Flame Failure Response Time | 0.8 sec or 3.0 sec |
| Flame Signal Strength Range | 0.0 to 5.0 VDC |
| Compatible Flame Detectors | C7024E, F Flame Detector |
| Compatible Primary Control | RM7824 |
| Mounting Style | Plug-in module |
| Connection Type | Printed circuit board edge connector (keyed) |
| Construction | Solid-state |
| Series Compatibility | Honeywell 7800 Series Relay Modules |
| Weight | 70 g |
Information About R7824C1002
The R7824C1002 is a solid-state flame signal amplifier from Honeywell’s 7800 Series, designed specifically for rectification flame detection in automatically fired burner systems. It connects directly to compatible 7800 Series relay modules through a keyed printed circuit board edge connector, ensuring correct installation and reliable electrical contact. The amplifier incorporates dynamic self-check technology that continuously monitors the flame detector and internal electronics during operation. It is used with Honeywell flame detectors such as the C7024E and F models and operates in combination with RM7824 primary safety controls.
Key Features
- Dynamic Self-Check Technology: Continuously verifies flame detector operation and internal electronics for consistent system safety.
- Selectable Flame Failure Response Time: Supports 0.8 or 3.0 second response to accommodate different safety requirements.
- Wide Signal Measurement Range: Monitors flame signal strength from 0.0 to 5.0 VDC for accurate diagnostics.
- Plug-In Design: Installs directly into 7800 Series relay modules using a keyed PCB edge connector.
- Integrated Test Jacks: Allows direct measurement of flame signal voltage during commissioning and service.
- Clear Visual Identification: Color-coded labels indicate flame detection type to reduce configuration errors.
- Solid-State Construction: Provides stable performance and long service life in industrial burner applications.
The R7824C1002 delivers the reliability and precision required for continuous flame monitoring and safety shutdown functions in industrial combustion control systems.
