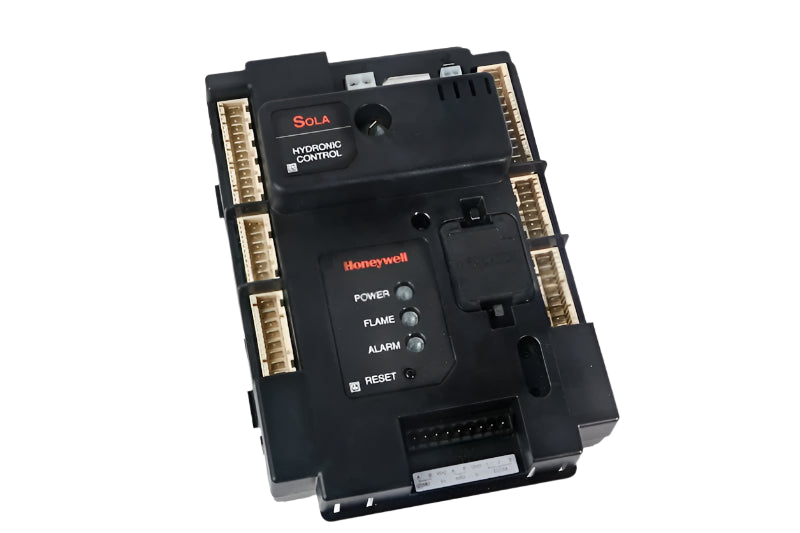

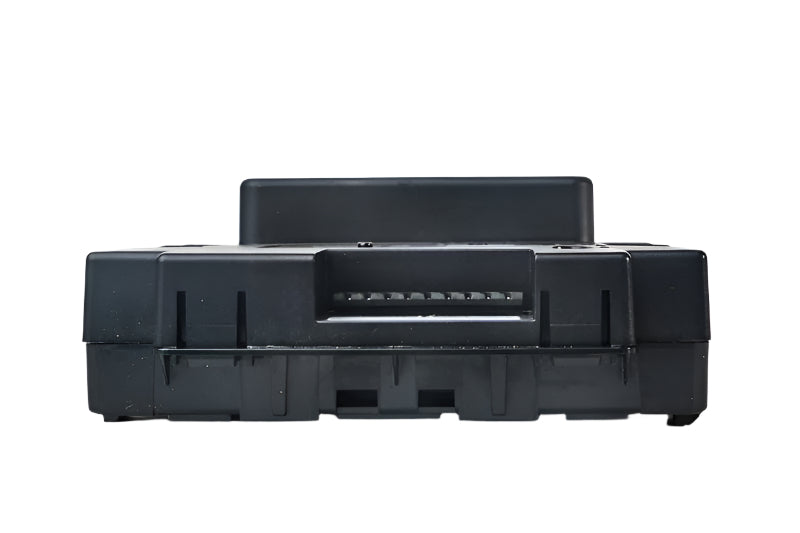

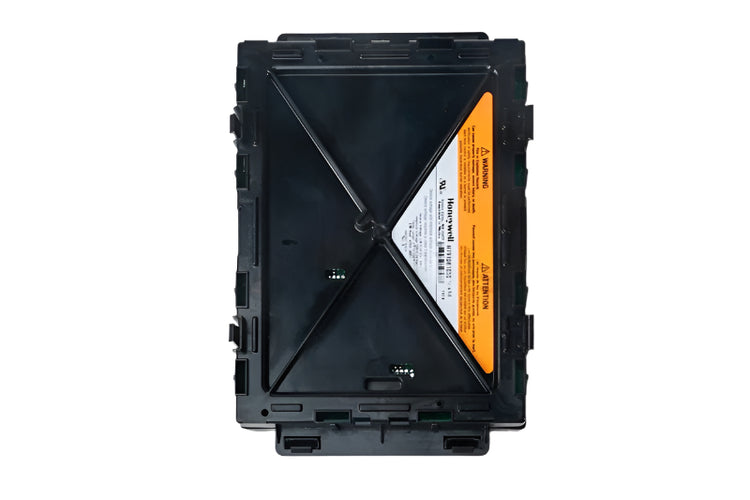

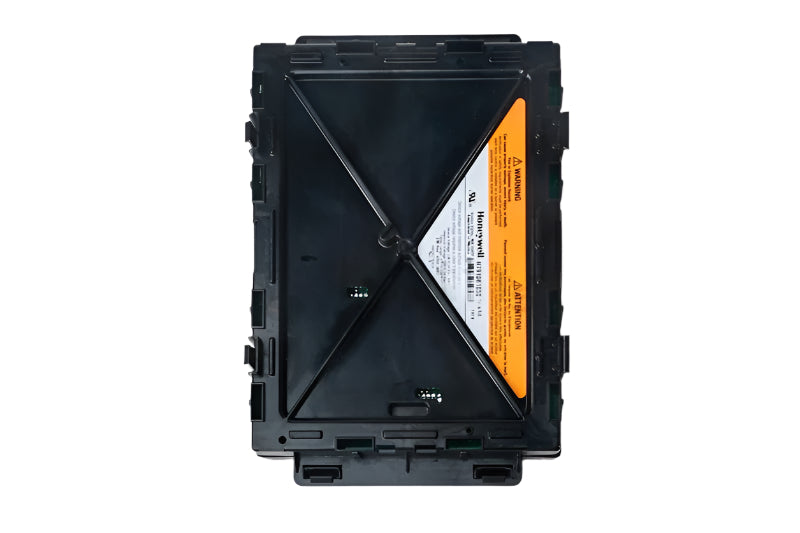

R7910B1030 | Honeywell Control Board
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: R7910B1030
Description
The Honeywell R7910B1030 is a programmable control board designed for use with NTH/NTV850 burner systems. Operating at 24 VAC, it enables safe, efficient sequencing of burner functions in commercial and industrial combustion applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Combustion Controls
|
| Part Number | R7910B1030 |
| Subcategory | Burner Management Control Boards |
| Compatible Systems | NTH/NTV850 Burner Systems |
| Control Voltage | 24 VAC, 60 Hz (J8-1) |
| Interlock Voltage |
24 VAC (J5-1) |
| Temperature Range | -4°F to 150°F (-20°C to 65°C) |
| Weight | 1.7 lbs |
Information About R7910B1030
The R7910B1030 is part of Honeywell’s burner management system series and is engineered to control and monitor flame safety and burner operations for NTH and NTV850 systems. It operates on 24 VAC at 60 Hz and includes interlock voltage inputs for system safety verification. Designed for flexibility and integration, the board is programmable to suit specific burner sequencing requirements and supports temperature operation from -4°F to 150°F (-20°C to 65°C), making it suitable for a range of mechanical room and field installations. Its design allows connection to peripheral sensors, interlocks, and actuators, enabling comprehensive burner supervision and lockout protection.
Key Features:
- Burner Control Interface: Designed specifically for Honeywell NTH and NTV850 systems.
- 24 VAC Operation: Supports both control power (J8-1) and interlock verification (J5-1) at standard low-voltage input.
- Programmable Logic: Supports custom burner sequencing and logic adaptations.
- Safety Interlocks: Includes inputs for monitoring critical burner safety interlocks.
- Wide Temperature Range: Operates reliably from -4°F to 150°F, suitable for demanding environments.
- Compact Board Format: Allows easy integration into OEM burner cabinets and control panels.
The R7910B1030 enhances burner reliability and safety through programmable control and interlock management.
