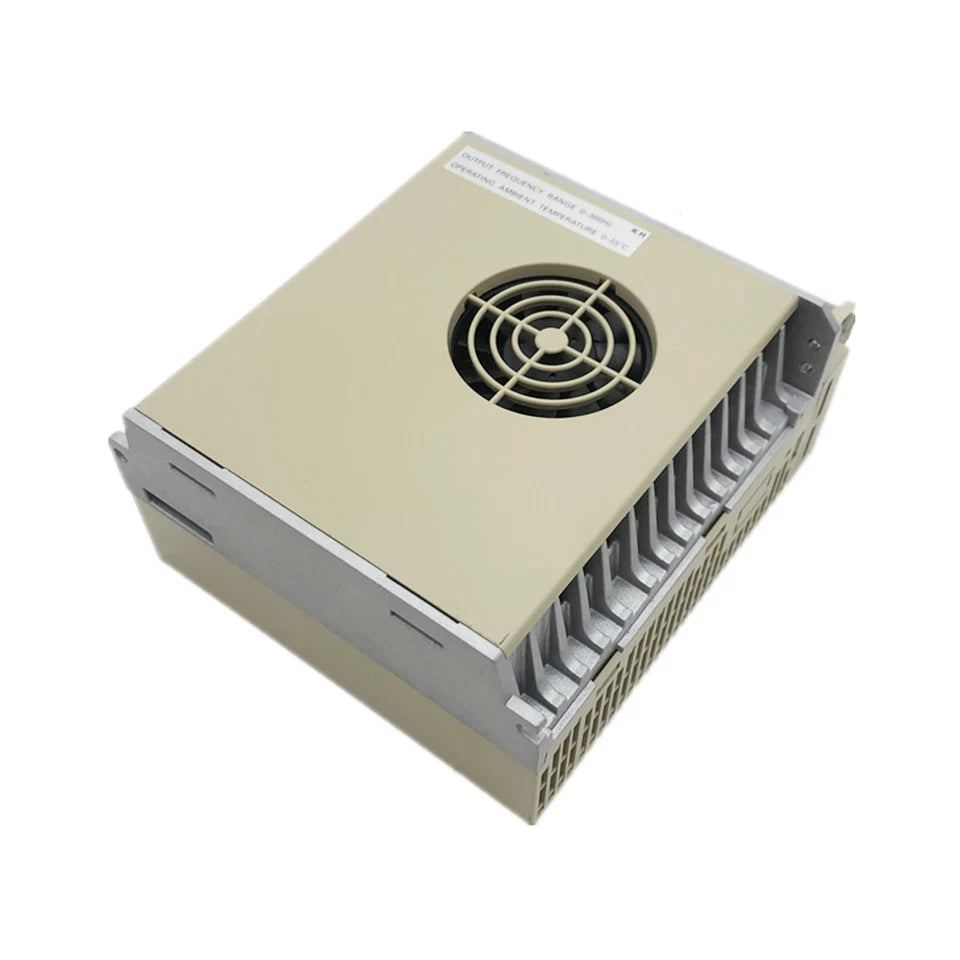

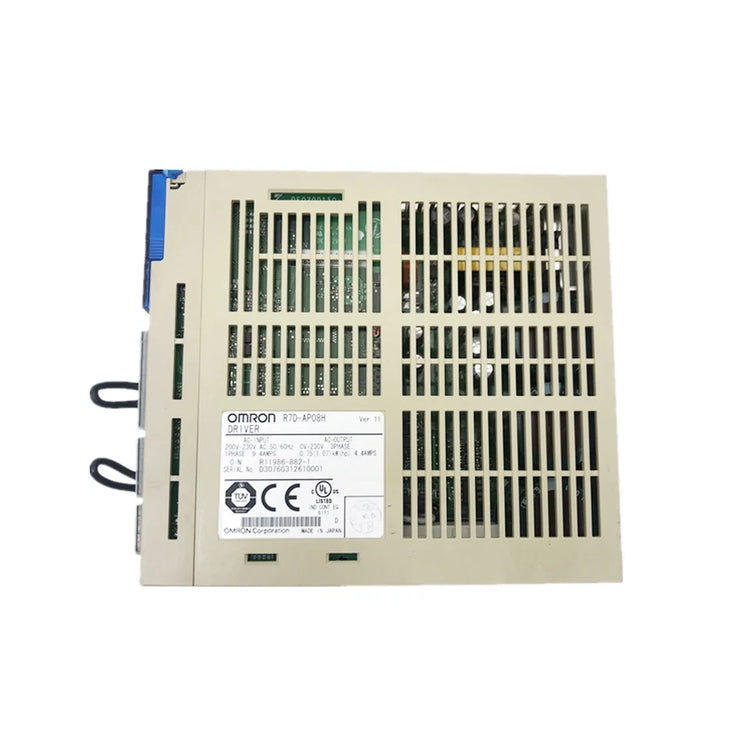

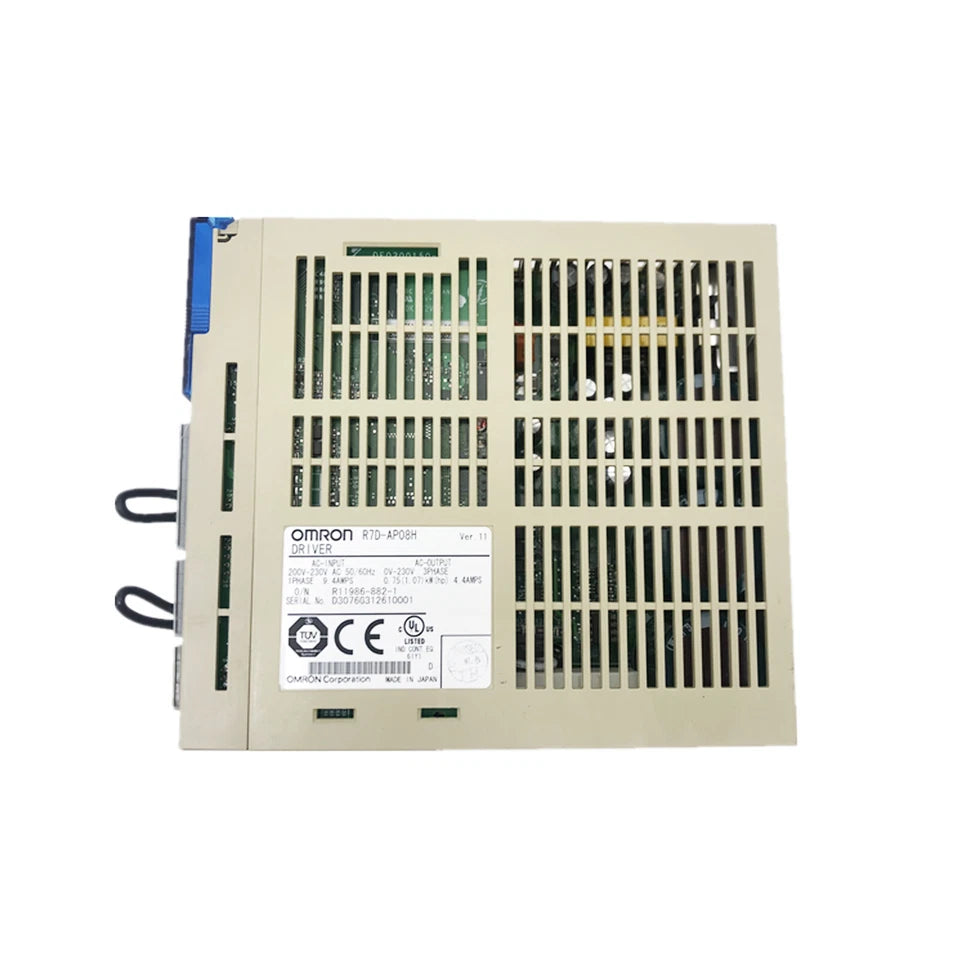

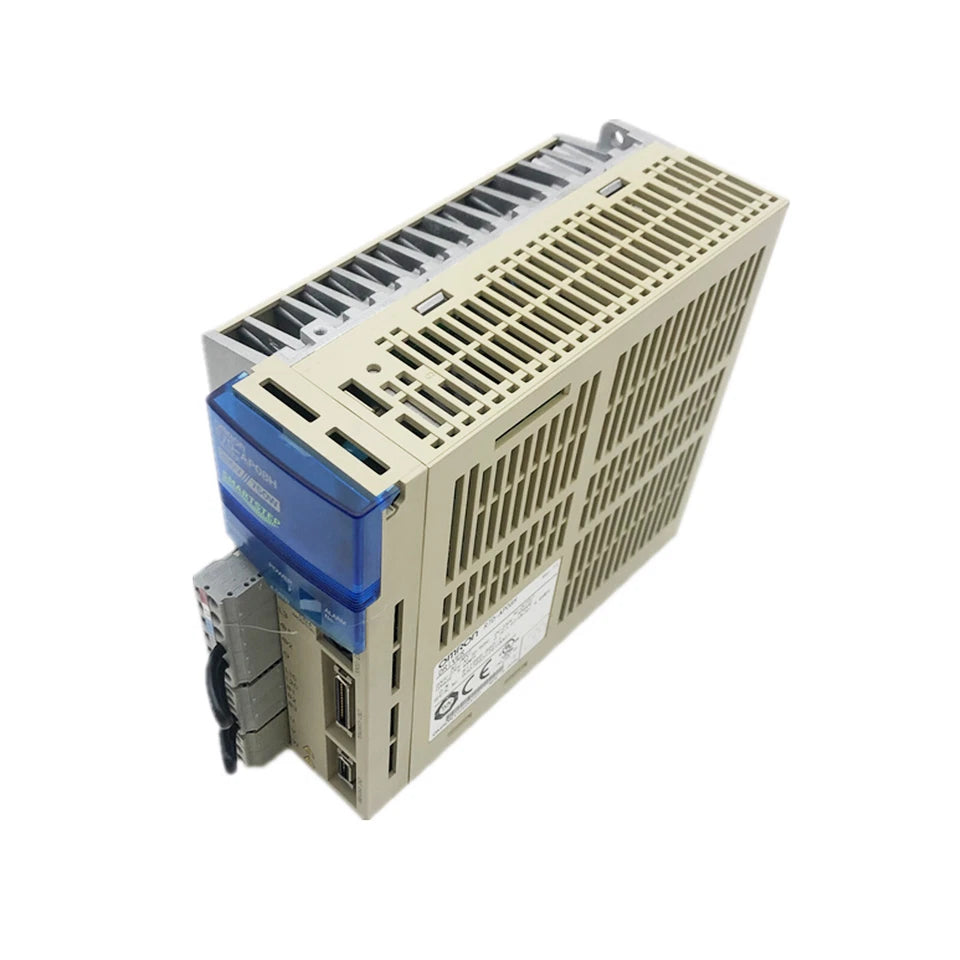

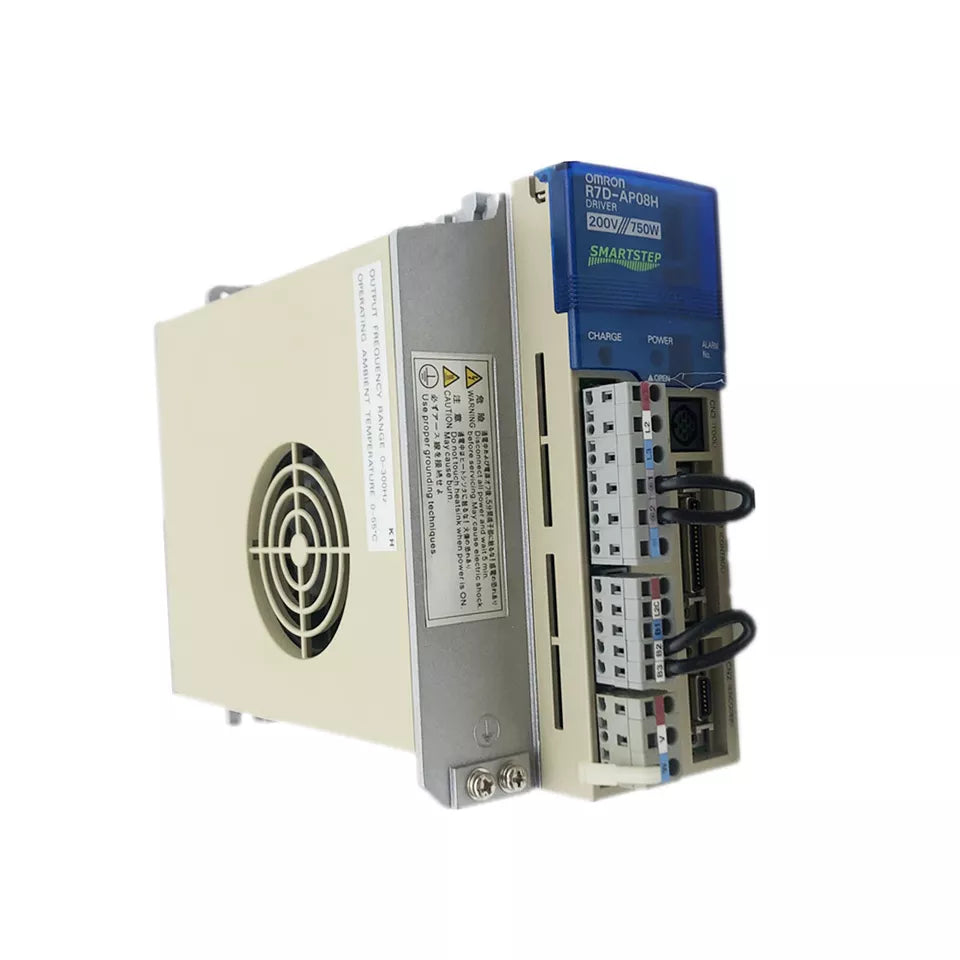

R7D-AP08H | Omron 750 W AC Servo Drive Single-Phase Input
- Regular price
- $3,899.00
- Sale price
- $3,899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: R7D-AP08H
Description
The Omron R7D-AP08H is a 750 W AC servo drive designed for precise motion control in industrial applications. It accepts single-phase 200–230 VAC input and delivers three-phase output with advanced all-digital servo control for high-performance motor operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Motion Control |
| Part Number | R7D-AP08H |
| Subcategory | Servo Drives |
| Type | Module |
| Motor Type | Servo |
| Control / Drive Type | Servo AC |
| Number of Motors | 1 |
| Voltage Class | 200 VAC |
| Voltage - Load | 200 V |
| Current - Output | 4.4 A RMS |
| Momentary Max Output Current | 13.9 A RMS |
| Wattage - Load | 750 W |
| Voltage - Supply | 200–230 VAC (single-phase) |
| Output Voltage | 0–230 VAC (three-phase, 300 Hz) |
| Leakage Current | 16 mA |
| Control Method | All-digital servo control |
| Speed Feedback | 2,000 pulses/rev incremental encoder |
| Interface | Serial |
| Mounting Type | Chassis mount |
| Operating Temperature | 0°C to 55°C |
| Weight | 1.7 kg |
Information About R7D-AP08H
The R7D-AP08H is part of Omron’s R7D series of AC servo drives, engineered for high accuracy and responsive control in automation systems. It supports a continuous output current of 4.4 A RMS and a momentary peak of 13.9 A RMS, providing sufficient power for demanding motion tasks. Designed for compatibility with a 200 VAC voltage class, it operates with a single-phase main circuit power supply while delivering three-phase motor output. The unit features a built-in all-digital servo control method, speed feedback via a 2,000 pulses/revolution incremental encoder, and serial interface connectivity. Its chassis-mount design and operating temperature range of 0°C to 55°C make it suitable for various industrial environments.
Key Features:
-
750 W Rated Output: Delivers robust performance for medium-capacity servo motor applications.
-
Single-Phase 200–230 VAC Input: Supports both main and control circuits with wide voltage tolerance from 170 to 253 V.
-
Three-Phase 0–230 VAC Output: Drives compatible servo motors with precision and stability.
-
Continuous and Peak Current Capacity: Provides 4.4 A RMS continuous and up to 13.9 A RMS momentary output for demanding load changes.
-
All-Digital Servo Control: Ensures high-speed, high-accuracy positioning in industrial automation.
-
Incremental Encoder Feedback: Utilizes 2,000 pulses/revolution for precise motion monitoring.
-
Serial Interface Communication: Enables streamlined integration with control systems.
-
Compact Chassis-Mount Design: Facilitates efficient installation in control panels.
-
Operating Temperature Range: Functions reliably between 0°C and 55°C for a variety of environments.
The R7D-AP08H delivers the reliability and precision required for advanced servo motor control in industrial automation systems.
