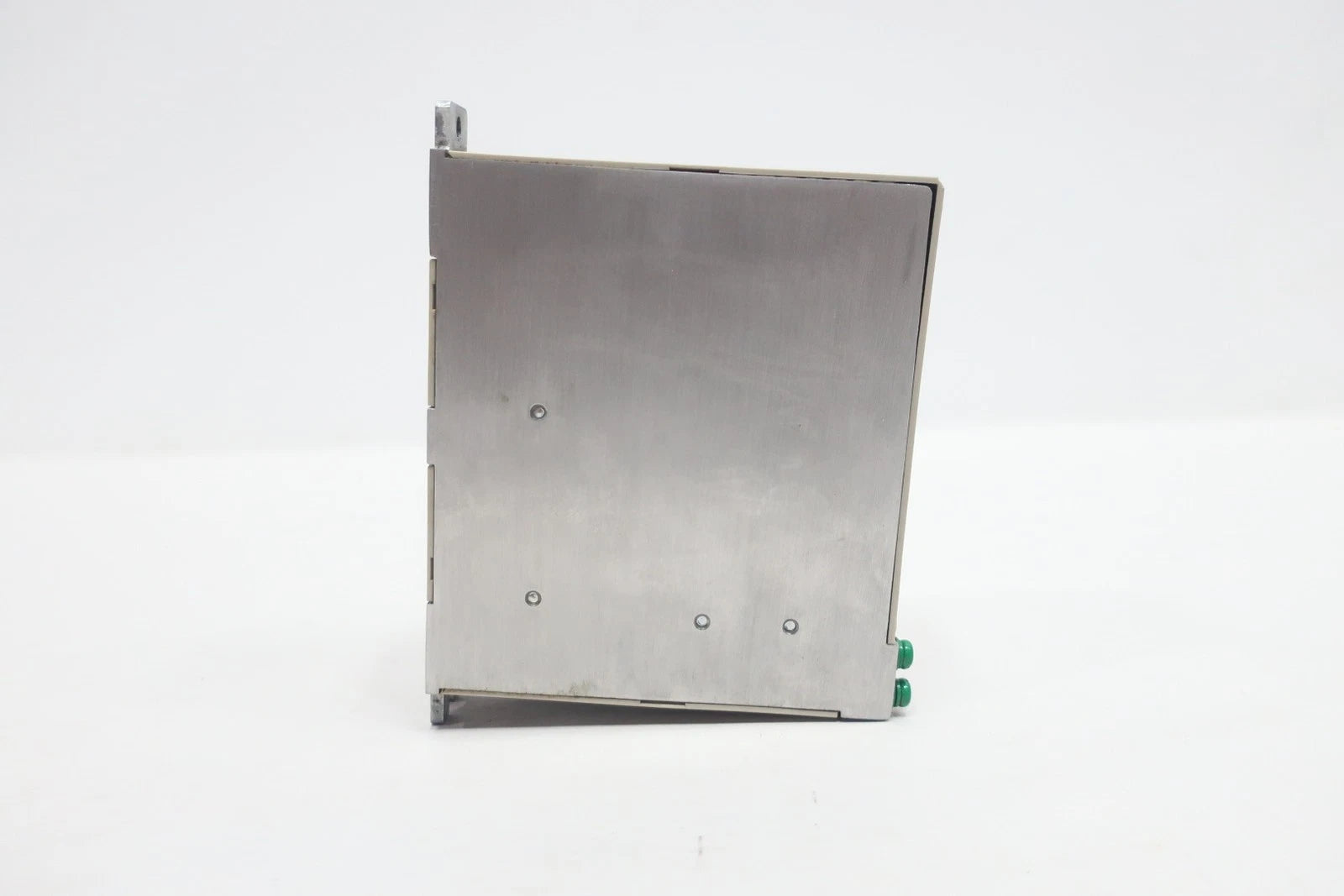

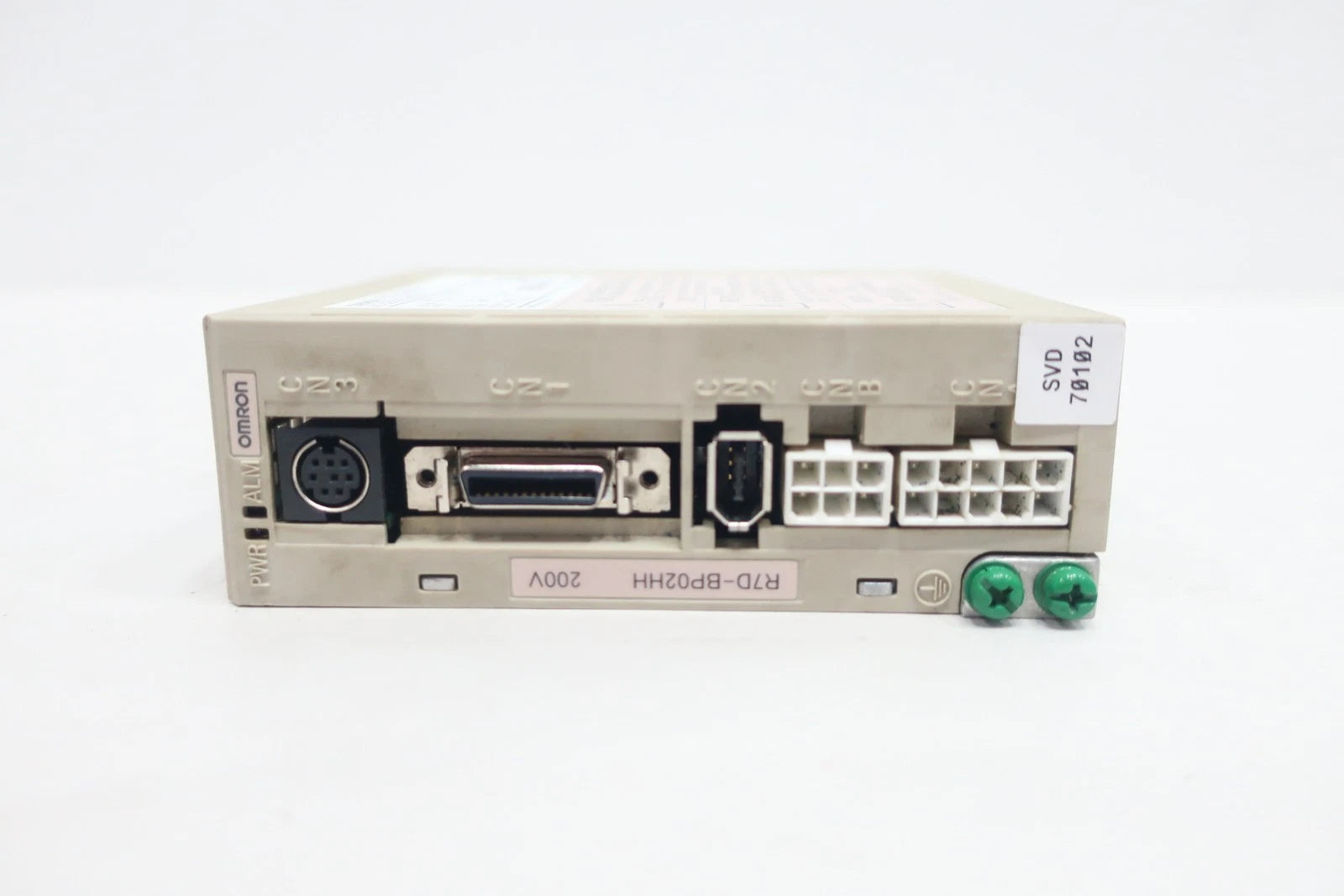

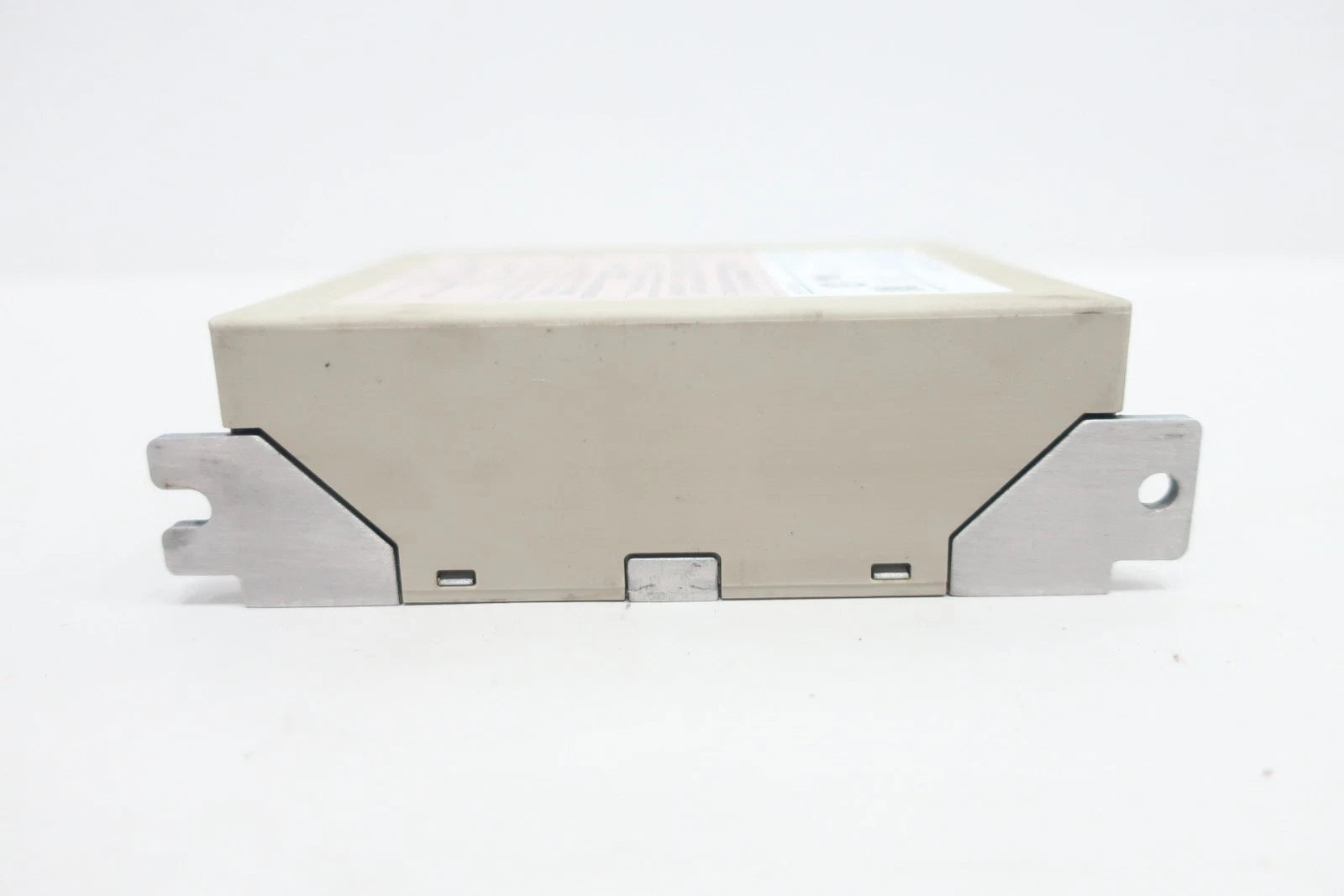

R7D-BP02HH | Omron SmartStep 2 AC Servo Drive 200W Pulse Input 200VAC
- Regular price
- $492.00
- Sale price
- $492.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R7D-BP02HH
Description
The Omron R7D-BP02HH is an AC servo drive designed for precise single-axis motion control using pulse train input in SmartStep 2 systems. It supports 200 W servo motors and operates on single-phase 200 VAC power, making it suitable for compact industrial automation and positioning applications. This drive is engineered for stable torque and speed control in machinery requiring accurate motion performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron Automation and Safety |
| Category | Servo Drives |
| Part Number | R7D-BP02HH |
| Subcategory | AC Servo Drives |
| Series | SmartStep 2 |
| Product Type | Servo drive module |
| Motor Type | AC servo |
| Control Method | Pulse train input |
| Number of Motors | 1 |
| Rated Load Voltage | 200 V |
| Rated Output Power | 200 W (0.2 kW) |
| Rated Output Current | 1.6 A |
| Supply Voltage | 200–230 VAC, single-phase |
| Communication Interface | Serial |
| Mounting Type | Chassis mount |
| Compatible Motors | OMNUC G Series |
| Operating Temperature | 0°C to 55°C |
| Weight | 420 g |
Information About ![]()
R7D-BP02HH
The R7D-BP02HH is part of Omron’s SmartStep 2 series, which is designed for reliable and efficient servo control in small to medium-scale automation systems. It is a chassis-mounted module intended for installation inside industrial control panels and enclosures. The drive supports pulse train control methods and is compatible with OMNUC G Series servo motors. Its electrical and thermal design allows dependable operation in demanding industrial environments with consistent performance over extended operating periods.
Key Features:
- SmartStep 2 Series Compatibility: Designed for seamless integration with Omron SmartStep 2 servo systems.
- Pulse Train Control Method: Supports pulse input control for precise positioning and speed regulation.
- Single-Axis Operation: Controls one AC servo motor for focused motion control applications.
- 200 W Rated Output: Suitable for light-duty to moderate-duty servo-driven machinery.
- Single-Phase 200 VAC Supply: Operates on standard industrial single-phase power systems.
- Stable Current Output: Provides up to 1.6 A output for consistent motor torque delivery.
- Serial Communication Interface: Enables parameter configuration and diagnostics through serial communication.
- Chassis Mount Design: Allows secure mounting inside control cabinets and automation panels.
- Wide Operating Temperature Range: Reliable operation from 0°C to 55°C in industrial environments.
The R7D-BP02HH delivers the reliability and precision required for compact servo motion control in industrial automation systems.
