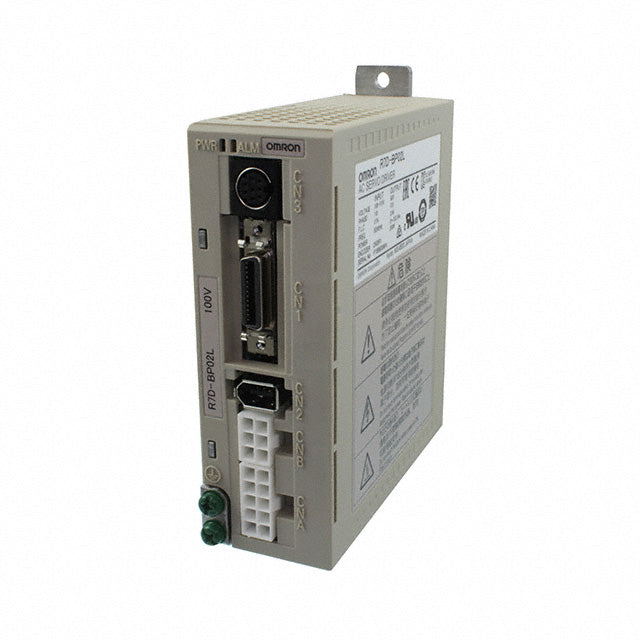

R7D-BP02L | Omron Servo Drive 200 W
- Regular price
- $1,390.00
- Sale price
- $1,390.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: R7D-BP02L
Description
The Omron R7D-BP02L is a compact 200 W digital servo drive designed for precise and responsive motor control in automated systems. With IGBT-driven PWM at 6 kHz and advanced digital regulation, it delivers efficient and high-speed operation in space-constrained applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| BrandPart Number | Omron |
| Category |
Servo Products
|
| Part Number | R7D-BP02L |
| Subcategory | Servo Drive/Servo Control |
| Series | R7 |
| Inverter Type | IGBT-driven PWM |
| PWM Frequency | 6 kHz |
| Max Response Frequency | 500 kpps (line driver); 200 kpps (collector) |
| Operating Temperature | 0–55°C |
| Weight | 0.42 kg |
| Motor Capacity | 200 W |
| Protection Design | IP10 (enclosure mounting) |
| Control Method | Digital control |
| Heat Generation | 22 W |
| Power Capacity | 0.42 KVA |
| Continuous Output Current | 2.5 A (rms) |
| Max Output Current | 7.5 A (rms) |
| Input Voltage | 100–115 VAC, 50/60 Hz |
| Input Current | 3.7 A (rms) |
Information About R7D-BP02L
The R7D-BP02L is part of the Omron R7 series of digital servo drives, tailored for systems requiring smooth motion control and real-time responsiveness. It supports a motor capacity of 200 W and operates with an input voltage range of 100–115 VAC at 50/60 Hz. Utilizing IGBT-based pulse-width modulation (PWM), it achieves a stable output through a 6 kHz PWM frequency. This drive supports a maximum response frequency of 500 kpps (line driver) or 200 kpps (collector), allowing for precise positioning and high-speed commands. It is enclosed in an IP10-rated housing suitable for mounting inside electrical cabinets and is capable of delivering up to 7.5 A (rms) peak output current. Despite its compact 0.42 kg build, the unit manages 0.42 kVA of power capacity and dissipates 22 W during operation.
Key Features:
- 200 W Motor Capacity: Supports mid-range servo motors for robotics, conveyors, or assembly equipment.
- IGBT-Driven PWM Control: Operates with a 6 kHz PWM frequency for efficient switching and smooth torque delivery.
- High-Speed Positioning: Max response frequency of 500 kpps ensures rapid feedback and tight motion loops.
- Compact and Lightweight: Weighs only 0.42 kg, facilitating easy integration into densely packed control cabinets.
- Peak Output Performance: Provides up to 7.5 A (rms) output current to handle dynamic motion demands.
- Wide Voltage Compatibility: Accepts 100–115 VAC input, adaptable to standard power systems.
- Thermal Efficiency: Low heat generation of 22 W ensures stable operation with minimal cooling needs.
- IP10 Protection Design: Suitable for cabinet mounting with basic ingress protection and efficient ventilation.
The R7D-BP02L offers fast, responsive, and space-saving servo control ideal for precise automation in compact machinery.
