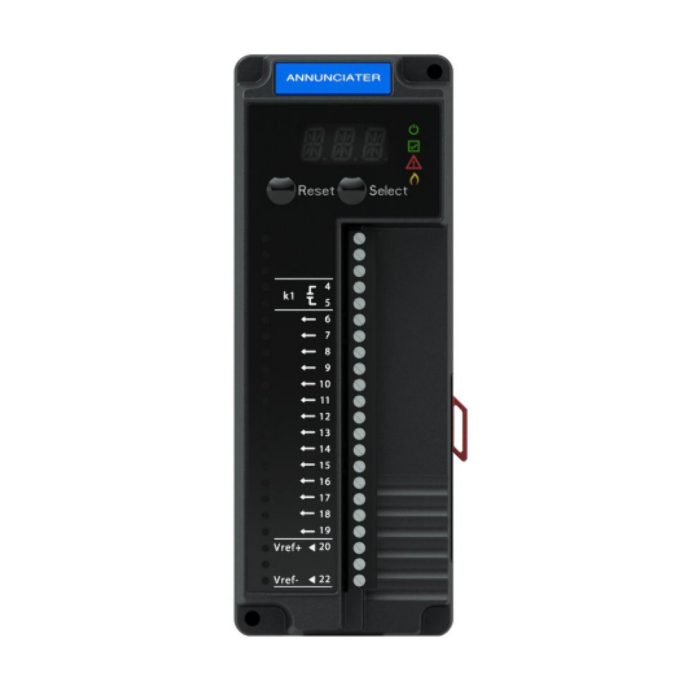

Part #: R8001N7001 Manufactured by: Honeywell
Regular price
$879.00
Sale price
$879.00
Regular price
2 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The R8001N7001 is a robust annunciator module that monitors burner control interlocks and delivers reliable fault feedback...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: R8001N7001
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Honeywell
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: R8001N7001

Description / Specifications

Description

The R8001N7001 is a Honeywell SLATE annunciator module used for monitoring multiple burner interlock conditions. It enhances system diagnostics by reporting fault and status messages to the burner control system via its integrated inputs and relay output.





Technical Specifications

Condition New/Never Used Surplus
Brand Honeywell
Category
HVAC
Part Number R8001N7001
Subcategory Burner Control
Voltage Input Range 24 VDC (±15%), 24 VAC (±15%), or 85–264 VAC
Frequency 50/60 Hz
Relay Outputs 1 Output
Input Points 14 Opto-Isolated Inputs
Maximum Connected Load 2000 VA
Fusing Requirement 15A Fast Blow Fuse (Type SC or equivalent)
Mounting Method DIN Rail
Temperature Range -20°F to 150°F (-29°C to 66°C)
System Use Works with R8001B2001, R8001S9001/U, R8001A1001/U
Certifications FCC Part 15, Class A
Weight 2 lb 1 oz (0.94 Kg)





Information About R8001N7001

The R8001N7001 is part of the Honeywell SLATE system, specifically designed to work with the R8001B2001 Burner Control Module and R8001A1001/U SLATE Base Module. It features 14 opto-isolated inputs that detect the status of various burner safety interlocks, helping identify faults quickly and supporting efficient troubleshooting. A single relay output provides a means of communicating aggregate status or alerts to other components in the control system.

This annunciator module automatically adapts to input voltages ranging from 24 VDC to 240 VAC, enabling wide installation flexibility in both low- and high-voltage environments. The R8001N7001 supports dual-fuel burner applications, making it ideal for industrial environments where fuel redundancy and safety are priorities. It is DIN rail mountable and designed for integration within electrical enclosures, meeting FCC Part 15, Class A emission standards.

Key Features:

  • Multi-Voltage Support: Operates from 24 VDC or 24–240 VAC for maximum installation versatility.
  • High Input Capacity: Includes 14 opto-isolated inputs for monitoring interlocks and control logic strings.
  • Relay Output Function: Provides a relay signal output for alarm or system indication.
  • Diagnostics Support: Indicates fault locations by monitoring a daisy-chained input configuration.
  • Dual-Fuel Capable: Compatible with burners that support both primary and secondary fuels.
  • DIN Rail Mounting: Designed for quick installation inside control panels or standard enclosures.
  • Environmental Durability: Operational across a wide temperature range from -20°F to 150°F (-29°C to 66°C).
  • System Integration: Works with SLATE Subbase R8001S9001/U and integrates seamlessly into Honeywell’s modular combustion management system.

The R8001N7001 provides a reliable annunciation solution that improves safety, diagnostics, and control system integration in demanding burner environments.
