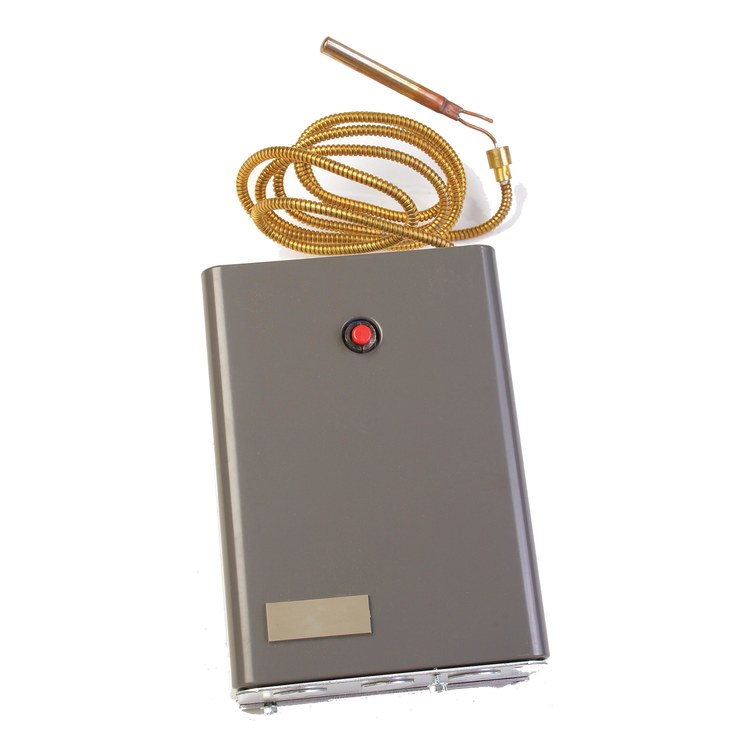

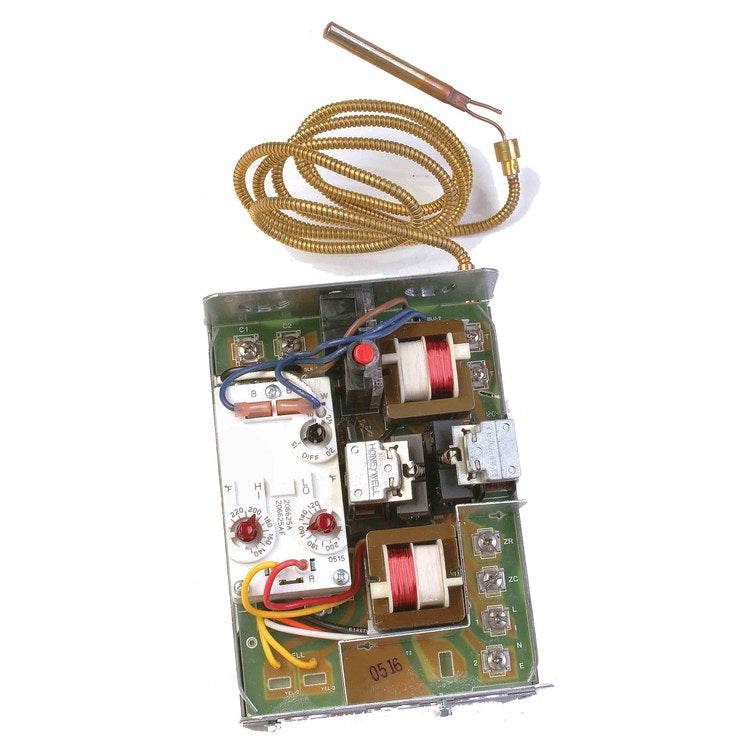

Product Description P/N: R8182D1079
Description
The Honeywell R8182D1079 is a combination Protectorelay and hydronic heating control designed for oil-fired heating systems. It provides high-limit, low-limit, and circulator control functions in one compact unit, ensuring safe, efficient operation of intermittent ignition and zone-controlled hydronic systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | R8182D1079 |
| Subcategory | Burner Control |
| Control Type | Combination Protectorelay and Aquastat |
| Voltage | 120 Vac |
| Frequency | 60 Hz |
| Switching Action | SPST |
| Ignition Rating | 360 VA |
| Burner Rating (AFL) | 4.4 A @ 120 Vac |
| Burner Rating (Locked Rotor) | 26.4 A @ 120 Vac |
| Power Consumption | 9 W |
| Safety Switch Timing | 45 seconds |
| High Limit Range (°F) | 130 – 240 °F |
| Low Limit Range (°F) | 110 – 220 °F |
| Differential Temperature | 10 °F fixed / 10–25 °F adjustable |
| Anticipator Setting | 0.2 A |
| Max Pressure (psi) | 200 (immersion well) / 100 (direct immersion) |
| Operating Humidity | 0 – 95% RH (non-condensing) |
| Max Ambient Temp | 250 °F (121 °C) at element |
| Mounting Type | Vertical mount (on burner) |
| Dimensions (H×W×D) | 7 ⅛″ × 5 ¼″ × 3 ⁷⁄₁₆″ |
| Insulation Depth | 1 ½″ (38 mm) |
| Certifications | UL Listed, CSA Certified |
| Weight | 5.00 lb (2.27 kg) |
Information About R8182D1079
The R8182D1079 is part of Honeywell’s R8182 series of combination control relays that integrate burner primary safety and Aquastat temperature regulation in one assembly. It mounts directly on the oil burner and is intended for use in intermittent ignition applications with hydronic heating systems. The unit features dual temperature limits: a fixed high limit for burner cutout and an adjustable low limit with circulator differential for maintaining boiler temperature. With its integrated safety timing, auxiliary ZC/ZR terminals for zone control, and compatibility with the C554A cadmium sulfide flame detector, the R8182D1079 ensures reliable flame supervision and heating control.
Key Features:
- Integrated Control Design: Combines Protectorelay safety, high-limit, and low-limit/circulator control in one compact unit.
- Intermittent Ignition Compatibility: Specifically designed for oil-fired hydronic systems using intermittent ignition.
- Dual Temperature Limits: Provides 10°F fixed high limit and adjustable 10–25°F low-limit differential for efficient boiler management.
- Automatic Safety Reset: Includes a 45-second safety timing period with manual reset required after flame failure.
- Auxiliary ZC/ZR Terminals: Allow zone control through an external R845A switching relay.
- High Pressure Tolerance: Rated for up to 200 psi on immersion wells and 100 psi for direct immersion.
- Thermal and Electrical Protection: Operates within 0–95% RH non-condensing and up to 250°F at element temperature.
- UL and CSA Certified: Approved for safety and reliability in residential and light commercial applications.
- Convenient Mounting: Vertical mounting design for direct burner installation with heat-conductive compound included.
- Low Power Consumption: Operates at only 9 W, ensuring energy-efficient system control.
The R8182D1079 delivers the reliability and precision required for hydronic heating systems requiring integrated safety and temperature control.
