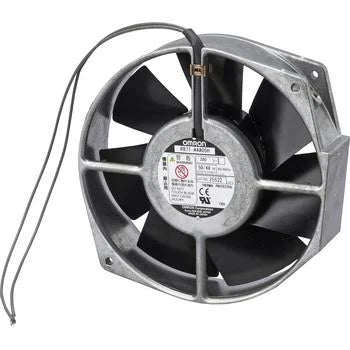

R87T-A4A05H | Omron 200VAC 150mm Tubeaxial Cooling Fan 203.4CFM
- Regular price
- $189.00
- Sale price
- $189.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R87T-A4A05H
Description
The Omron R87T-A4A05H is a 200 VAC tubeaxial fan designed to provide efficient airflow for cooling industrial equipment and control panels. With a 150 mm round frame and airflow capacity of 203.4 CFM, it ensures effective heat dissipation in enclosed systems. Its ball bearing construction and aluminum frame support stable, long-term operation in demanding environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Cooling & Thermal Management |
| Part Number | R87T-A4A05H |
| Subcategory | AC Tubeaxial Fan |
| Series | R87T |
| Fan Type | Tubeaxial |
| Rated Voltage | 200 VAC |
| Current Rating | 0.220 A |
| Power Consumption | 48 W |
| Fan Speed | 3100 RPM |
| Air Flow | 203.4 CFM (5.70 m³/min) |
| Static Pressure | 0.430 in H2O (107.1 Pa) |
| Size / Dimension | 150 mm Diameter |
| Width | 38 mm |
| Bearing Type | Ball Bearing |
| Noise Level | 58.0 dB |
| Termination | 2 Wire Leads |
| Frame Material | Aluminum |
| Blade Material | Zinc |
| Operating Temperature | -20°C to +70°C |
| Approvals | CSA, UL |
| Weight | 1.9 lbs (861.8 g) |
Information About R87T-A4A05H
The R87T-A4A05H is part of Omron’s R87T series of AC-powered tubeaxial cooling fans engineered for industrial thermal management applications. Operating at a rated voltage of 200 VAC, it delivers consistent airflow with a maximum speed of 3100 RPM. The fan features a durable aluminum frame and zinc blades, combined with ball bearings to enhance service life and operational stability. Designed for panel and enclosure ventilation, it is commonly used in control cabinets, power supplies, and automation systems requiring reliable cooling performance.
Key Features:
- 200 VAC Operation: Designed for industrial AC power systems.
- 203.4 CFM Airflow: Provides high-volume air movement for effective cooling.
- Tubeaxial Fan Design: Optimized for directional airflow in enclosures.
- Ball Bearing Construction: Ensures durability and extended operating life.
- 150 mm Round Frame: Standardized size for cabinet and panel installations.
- 3100 RPM Speed: Delivers consistent airflow performance.
- Aluminum Frame with Zinc Blades: Offers structural strength and corrosion resistance.
- CSA and UL Approved: Certified for compliance with recognized safety standards.
The R87T-A4A05H delivers the reliability and precision required for industrial enclosure cooling and thermal management systems.
Description
The Omron R87T-A4A05H is a 200 VAC tubeaxial fan designed to provide efficient airflow for cooling industrial equipment and control panels. With a 150 mm round frame and airflow capacity of 203.4 CFM, it ensures effective heat dissipation in enclosed systems. Its ball bearing construction and aluminum frame support stable, long-term operation in demanding environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Cooling & Thermal Management |
| Part Number | R87T-A4A05H |
| Subcategory | AC Tubeaxial Fan |
| Series | R87T |
| Fan Type | Tubeaxial |
| Rated Voltage | 200 VAC |
| Current Rating | 0.220 A |
| Power Consumption | 48 W |
| Fan Speed | 3100 RPM |
| Air Flow | 203.4 CFM (5.70 m³/min) |
| Static Pressure | 0.430 in H2O (107.1 Pa) |
| Size / Dimension | 150 mm Diameter |
| Width | 38 mm |
| Bearing Type | Ball Bearing |
| Noise Level | 58.0 dB |
| Termination | 2 Wire Leads |
| Frame Material | Aluminum |
| Blade Material | Zinc |
| Operating Temperature | -20°C to +70°C |
| Approvals | CSA, UL |
| Weight | 1.9 lbs (861.8 g) |
Information About R87T-A4A05H
The R87T-A4A05H is part of Omron’s R87T series of AC-powered tubeaxial cooling fans engineered for industrial thermal management applications. Operating at a rated voltage of 200 VAC, it delivers consistent airflow with a maximum speed of 3100 RPM. The fan features a durable aluminum frame and zinc blades, combined with ball bearings to enhance service life and operational stability. Designed for panel and enclosure ventilation, it is commonly used in control cabinets, power supplies, and automation systems requiring reliable cooling performance.
Key Features:
- 200 VAC Operation: Designed for industrial AC power systems.
- 203.4 CFM Airflow: Provides high-volume air movement for effective cooling.
- Tubeaxial Fan Design: Optimized for directional airflow in enclosures.
- Ball Bearing Construction: Ensures durability and extended operating life.
- 150 mm Round Frame: Standardized size for cabinet and panel installations.
- 3100 RPM Speed: Delivers consistent airflow performance.
- Aluminum Frame with Zinc Blades: Offers structural strength and corrosion resistance.
- CSA and UL Approved: Certified for compliance with recognized safety standards.
The R87T-A4A05H delivers the reliability and precision required for industrial enclosure cooling and thermal management systems.
