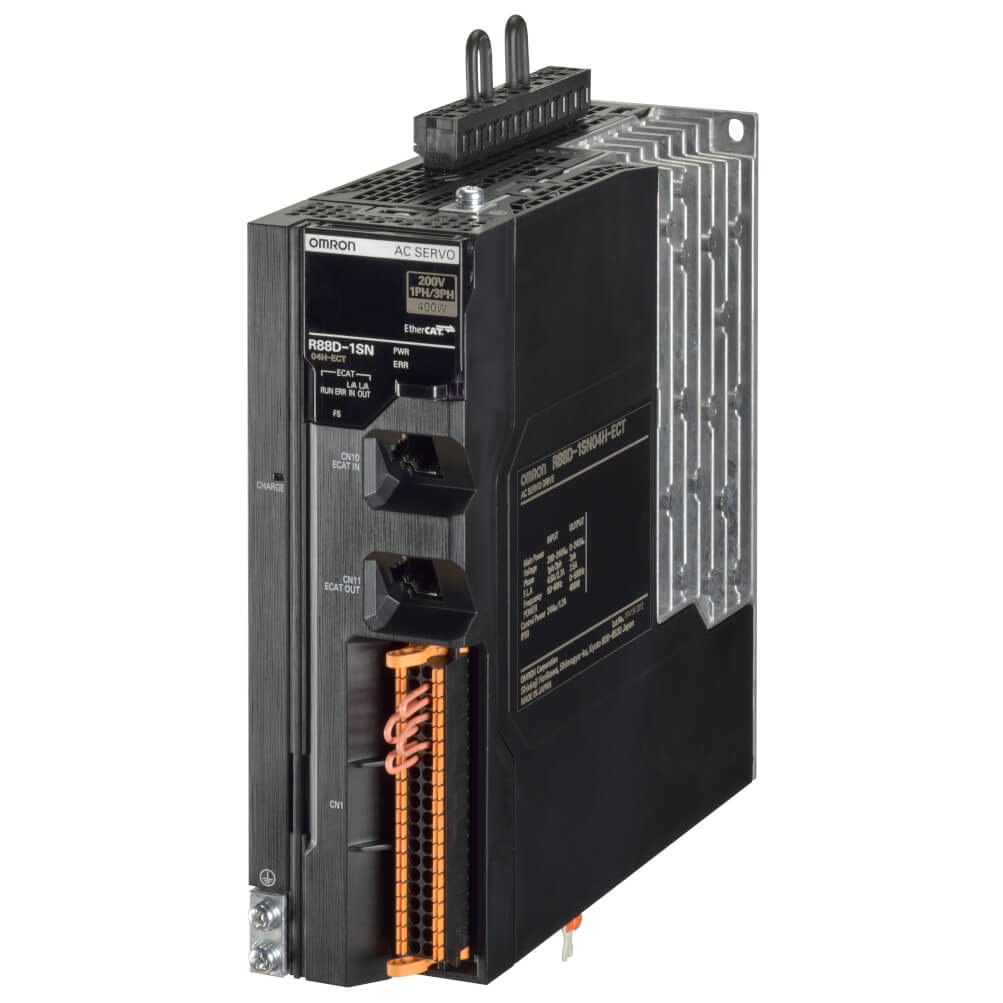

R88D-1SN04H-ECT | Omron 1S Servo Drive EtherCAT
- Regular price
- $1,451.00
- Sale price
- $1,451.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: R88D-1SN04H-ECT
Description
The R88D-1SN04H-ECT is a 400 W servo drive from Omron’s 1S Series, designed for high-performance motion control with EtherCAT communication. It operates on a 230 V single-phase input and includes integrated safety functions for advanced machine protection.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
Servo Products
|
| Part Number | R88D-1SN04H-ECT |
| Subcategory | Servo Drive/Servo Control |
| Series | 1S |
| Communication | EtherCAT |
| Rated Output | 400 W |
| Input Voltage | 230 V AC single-phase |
| Servo Control Method | Sine wave PWM |
| Continuous Output Current | Not specified |
| Safety Functions | STO, SS1, SLS (FSoE), Hardwired STO |
| Encoder Resolution | 23-bit |
| Heat Dissipation | Not specified |
| Dimensions (H x W x D) | 223 x 55 x 196.05 mm |
| Operating Temperature | 0 to 55 °C |
| Compliance Standards | EN ISO 13849-1, EN 61508, EN 62061 |
| Weight | 1.5 kg |
Information About R88D-1SN04H-ECT
The R88D-1SN04H-ECT is part of Omron’s next-generation 1S Series servo drives, purpose-built for speed, accuracy, and ease of integration in industrial automation. With native EtherCAT support and a 125 µs communication cycle, it enables real-time, synchronized motion control across complex systems. This drive delivers a rated output of 0.4 kW and includes built-in Functional Safety over EtherCAT (FSoE) features such as STO, SS1, and SLS, making it compliant with international safety standards. It features push-in connectors, pluggable terminals, direct motor brake control, and wiring flexibility—streamlining installation and service. Its compact footprint makes it suitable for space-constrained control cabinets, while its improved loop control provides precise positioning with minimal overshoot and fast response.
Key Features:
- EtherCAT Communication: 125 µs communication cycle enables ultra-fast, real-time motion control in synchronized multi-axis systems, enhancing machine throughput.
- Integrated Safety Functions (FSoE): Includes STO, SS1, and SLS safety protocols conforming to SIL2/PLd and SIL3/PLe standards, enabling safer motion architectures without additional safety hardware.
- High-Resolution Feedback: Equipped with a 23-bit encoder for precise motion feedback, allowing for smoother control and better repeatability in high-precision applications.
- Tool-Free Push-In Wiring: Screw-less push-in terminals and pluggable connectors simplify installation and maintenance, supporting quick replacements and minimal downtime.
- Brake Control Relay Built-In: Internal relay enables direct brake control for servo motors, reducing wiring complexity and saving space in control panels.
- Improved Loop Control Algorithms: Advanced control response provides better overshoot suppression and rapid positioning—ideal for dynamic and high-speed motion applications.
- Universal Power Compatibility: Operates on 230 VAC single-phase input and supports output ranges from 100 W to 1.5 kW across the series, ensuring flexibility in machine design.
- Compact Design: Slim profile with a height of 223 mm and width of just 55 mm optimizes cabinet space, ideal for densely packed control enclosures.
The R88D-1SN04H-ECT delivers integrated safety, advanced control, and easy connectivity in a compact and scalable motion control solution.
