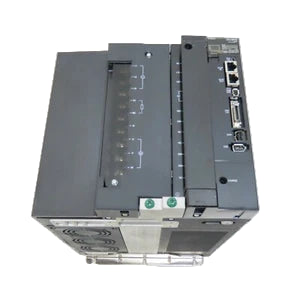

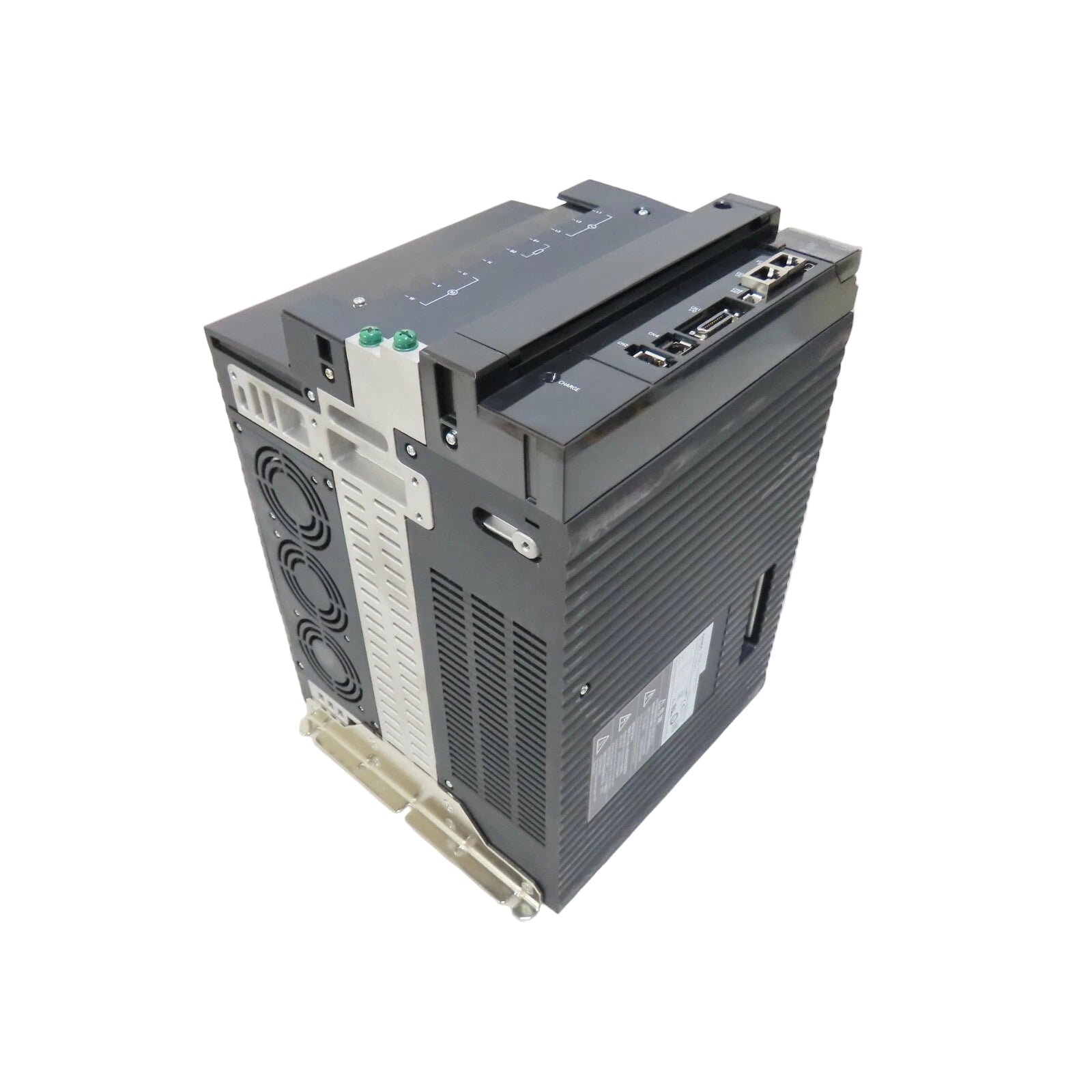

R88D-KN75H-ECT | Omron 750 W EtherCAT Servo Drive for 1S / G5 Series Motors
- Regular price
- $1,357.00
- Sale price
- $1,357.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: R88D-KN75H-ECT
Description
The Omron R88D-KN75H-ECT is a compact, high-performance servo drive designed for precision motion control in industrial automation systems. Supporting EtherCAT communication, it ensures rapid data exchange and precise synchronization with Omron’s 1S Series servo motors. The drive offers robust protection, stable operation, and efficient control for demanding servo applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | R88D-KN75H-ECT |
| Subcategory | Servo Drives |
| Series | R88D-KN / Accurax G5 Series |
| Type | EtherCAT Servo Drive |
| Communication Interface | EtherCAT |
| Compatible Motors | Omron 1S / G5 Series Servo Motors |
| Rated Output Power | 750 W (0.75 kW) |
| Input Voltage | 200–240 V AC (single/three-phase) |
| Rated Output Current | Approx. 4 A |
| Control Method | Sine-Wave PWM, Speed/Position/Torque Control |
| Mounting Type | Panel Mount |
| Protective Structure | Built into panel enclosure |
| Vibration Resistance | 10–60 Hz, 5.88 m/s² max. |
| Insulation Resistance | ≥ 0.5 MΩ at 500 VDC |
| Dielectric Strength | 1,500 VAC for 1 minute |
| Ambient Operating Temperature | 0°C to +55°C |
| Storage Temperature Range | -20°C to +65°C |
| Operating Humidity | ≤ 85% RH (non-condensing) |
| Storage Humidity | ≤ 85% RH (non-condensing) |
| Atmosphere Conditions | Free of corrosive gases |
| Cooling Method | Natural Convection / Forced Air (depending on configuration) |
| Safety Functions | Overload, Overvoltage, Overheat, Short-Circuit Protection |
| Control Modes | Position, Speed, and Torque Control |
| Response Frequency | Up to 2.0 kHz |
| Compliance | CE, UL, RoHS Certified |
| Weight | Approx. 1.3 kg (2.9 lb) |
Information About R88D-KN75H-ECT
The R88D-KN75H-ECT belongs to Omron’s 1S / Accurax G5 Series, combining high-speed EtherCAT networking with precise motion control. Designed for seamless integration with Omron automation systems, this servo drive delivers fast response times, improved accuracy, and energy-efficient operation. It supports a rated power range suitable for 750 W class servo motors and includes comprehensive protection features, such as overvoltage, overload, and regenerative safeguards. The unit’s compact, panel-mount design and rugged construction allow for easy installation in tight control cabinets while maintaining long-term reliability in industrial environments.
Key Features:
- EtherCAT Communication: Provides high-speed, synchronized motion control with low latency.
- 750 W Drive Capacity: Optimized for medium-duty servo motor applications.
- High-Performance Control: Delivers fast response and stable torque under dynamic loads.
- Compact Panel-Mount Design: Saves space and simplifies cabinet integration.
- Built-In Protection: Includes overvoltage, overload, and short-circuit safeguards.
- Environmental Durability: Operates reliably from 0°C to 55°C at up to 85% humidity.
- Precision Engineering: Ensures smooth acceleration, deceleration, and positioning control.
- Omron Quality: Backed by proven reliability for long-term industrial performance.
The R88D-KN75H-ECT delivers the reliability and precision required for high-speed, synchronized motion in advanced manufacturing and automation systems.
