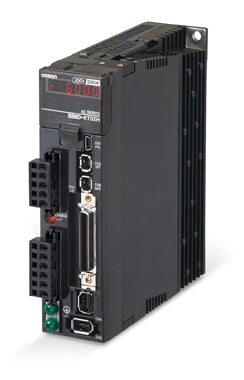

R88D-KT02H | Omron 200W G5 Series Servo Drive for Precision Motion Control
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R88D-KT02H
Description
The Omron R88D-KT02H servo drive is a compact motion control unit designed to precisely regulate speed, torque, and position in industrial automation systems. Engineered for 200 W servo motor applications, this drive delivers stable performance and accurate feedback control for machinery requiring consistent motion accuracy.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Motion Control |
| Part Number | R88D-KT02H |
| Subcategory | Servo Drives |
| Product Line | R88D G5 Series |
| Product Type | Servo Drive |
| Rated Power | 200 W |
| Input Voltage | 200 VAC (0–240 V) |
| Phase | 3 Phase |
| Rated Current | 1.6 A |
| Maximum Speed | 3000 rpm |
| Rated Torque | 0.64 Nm |
| Frequency Range | 0–500 Hz |
| Encoder Type | Incremental |
| Brake | Included |
| Protection Rating | IP20 |
| Cooling Method | Natural Air |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 65°C |
| Operating Humidity | Up to 90% RH (non-condensing) |
| Weight | 2.00 lbs (0.91 kg) |
Information About R88D-KT02H
The R88D-KT02H is part of Omron’s R88D G5 Series servo drive lineup, developed for high-response motion control in compact industrial equipment. It features a robust three-phase design optimized for compatibility with Omron servo motors using incremental encoder feedback. This servo drive supports integrated braking functionality, making it suitable for vertical axes and load-holding applications. Designed for panel-mounted environments, it operates reliably under a wide temperature range with natural air cooling and IP20 protection.
Key Features:
- Compact G5 Series Design: Integrates advanced motion control in a space-efficient servo drive format.
- 200 W Rated Output: Supports precise control of low-power servo motors for detailed motion tasks.
- Three-Phase Power Input: Ensures stable electrical performance and smooth motor operation.
- Incremental Encoder Support: Provides accurate position and speed feedback for closed-loop control.
- Integrated Brake Control: Enables secure stopping and load holding in critical axis applications.
- Wide Frequency Range: Supports motor operation from 0 to 500 Hz for flexible speed control.
- Natural Air Cooling: Eliminates the need for forced cooling systems in standard control panels.
The R88D-KT02H delivers the reliability and precision required for industrial servo motion control systems and automated machinery.
