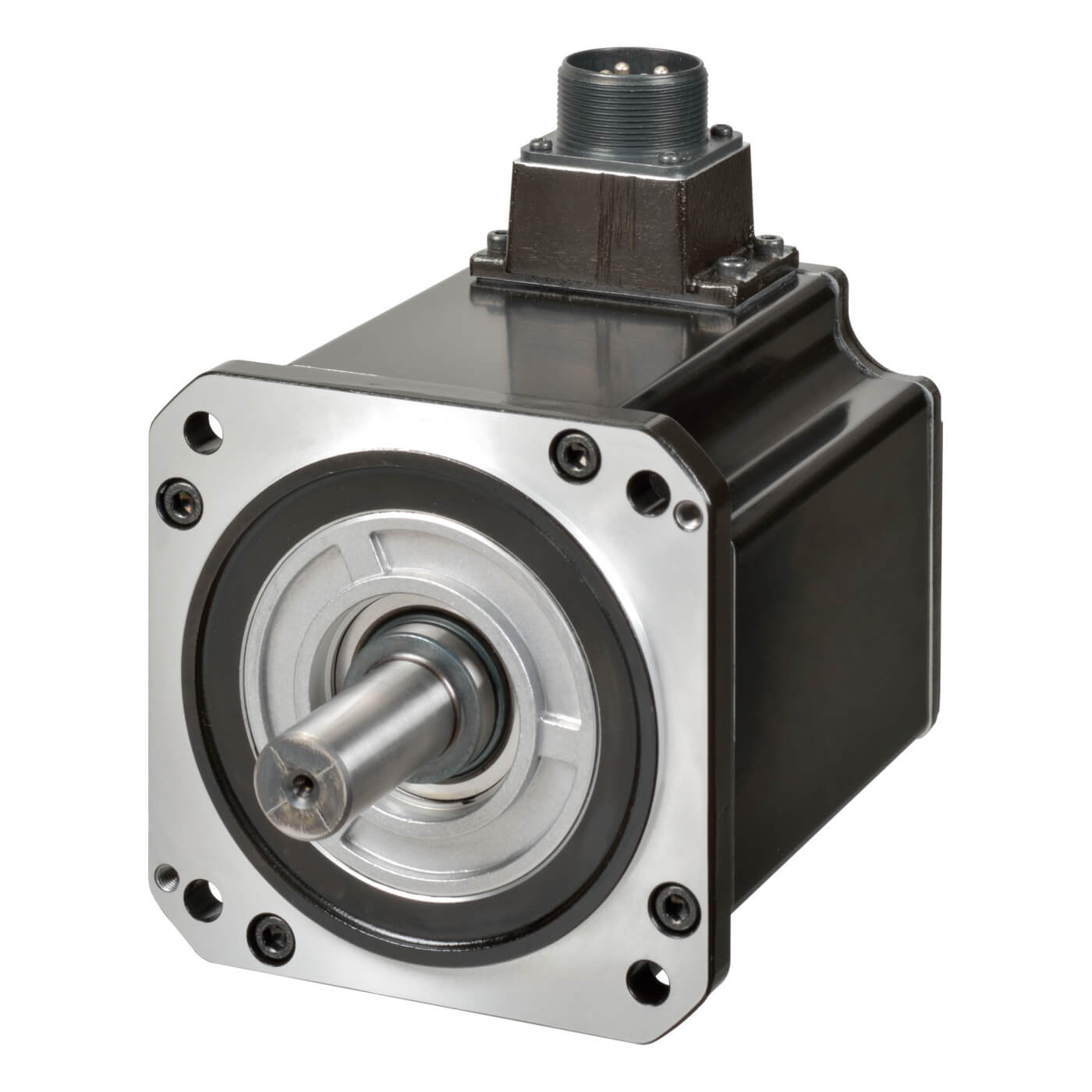

R88M-1M3K020C-BS2 | Omron 1S Series 3kW AC Servo Motor with Brake
- Regular price
- $2,317.00
- Sale price
- $2,317.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R88M-1M3K020C-BS2
Description
The Omron R88M-1M3K020C-BS2 is a high-performance AC servo motor designed for precise motion control in industrial automation systems. It delivers 3 kW output power with a rated speed of 2000 RPM and integrated holding brake for secure positioning. This servo motor is commonly used in high-precision machinery, robotics, and motion control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Servo Products |
| Part Number | R88M-1M3K020C-BS2 |
| Subcategory | Servo Motor |
| Motor Type | AC Servo Motor |
| Series | Omron 1S |
| Rated Output Power | 3 kW |
| Rated Speed | 2000 RPM |
| Rated Torque | 14.3 Nm |
| Peak Torque | 43 Nm |
| Supply Voltage | 400 VAC |
| Rated Current | 8.6 A |
| Encoder Type | Absolute encoder |
| Encoder Resolution | 23-bit |
| Brake | Integrated 24 VDC holding brake |
| Protection Rating | IP67 |
| Flange Size | 130 mm |
| Shaft Type | Straight shaft with key and tap |
| Operating Temperature | 0°C to 40°C |
| Cooling Method | Air cooled |
| Weight | 12.00 lbs |
Information About R88M-1M3K020C-BS2
The R88M-1M3K020C-BS2 belongs to the Omron 1S-series servo motor family engineered for advanced motion control systems. It features a high-efficiency design with a 23-bit absolute encoder that provides precise position feedback for accurate motion control. The motor includes a straight shaft with key and tap for secure mechanical coupling and a built-in 24 VDC brake for holding position during power loss or system stops. With IP67 protection and a robust construction, it is designed to operate reliably in demanding industrial environments.
Key Features:
-
3 kW Servo Motor Output: Provides high power for demanding motion control applications.
-
Absolute Encoder Feedback: 23-bit encoder ensures precise position and speed control.
-
Integrated Holding Brake: Built-in 24 VDC brake maintains shaft position when power is removed.
-
2000 RPM Rated Speed: Suitable for controlled motion in automation and machine systems.
-
High Torque Capability: Rated torque of 14.3 Nm with peak torque up to 43 Nm.
-
Industrial Protection Rating: IP67 protection allows operation in harsh environments.
-
Keyed Shaft with Tap: Ensures secure coupling with mechanical drive components.
-
1S Series Compatibility: Designed for use with Omron 1S-series servo drives and motion systems.
The R88M-1M3K020C-BS2 delivers the reliability and precision required for high-performance motion control in industrial automation systems.
