R88M-1M40030S-BOS2 | Omron 1S AC Servo Motor 400W 100VAC 3000rpm with Brake & Oil Seal (Copy)
- Regular price
- $901.00
- Sale price
- $901.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: R88M-1M40030S-BOS2
Description

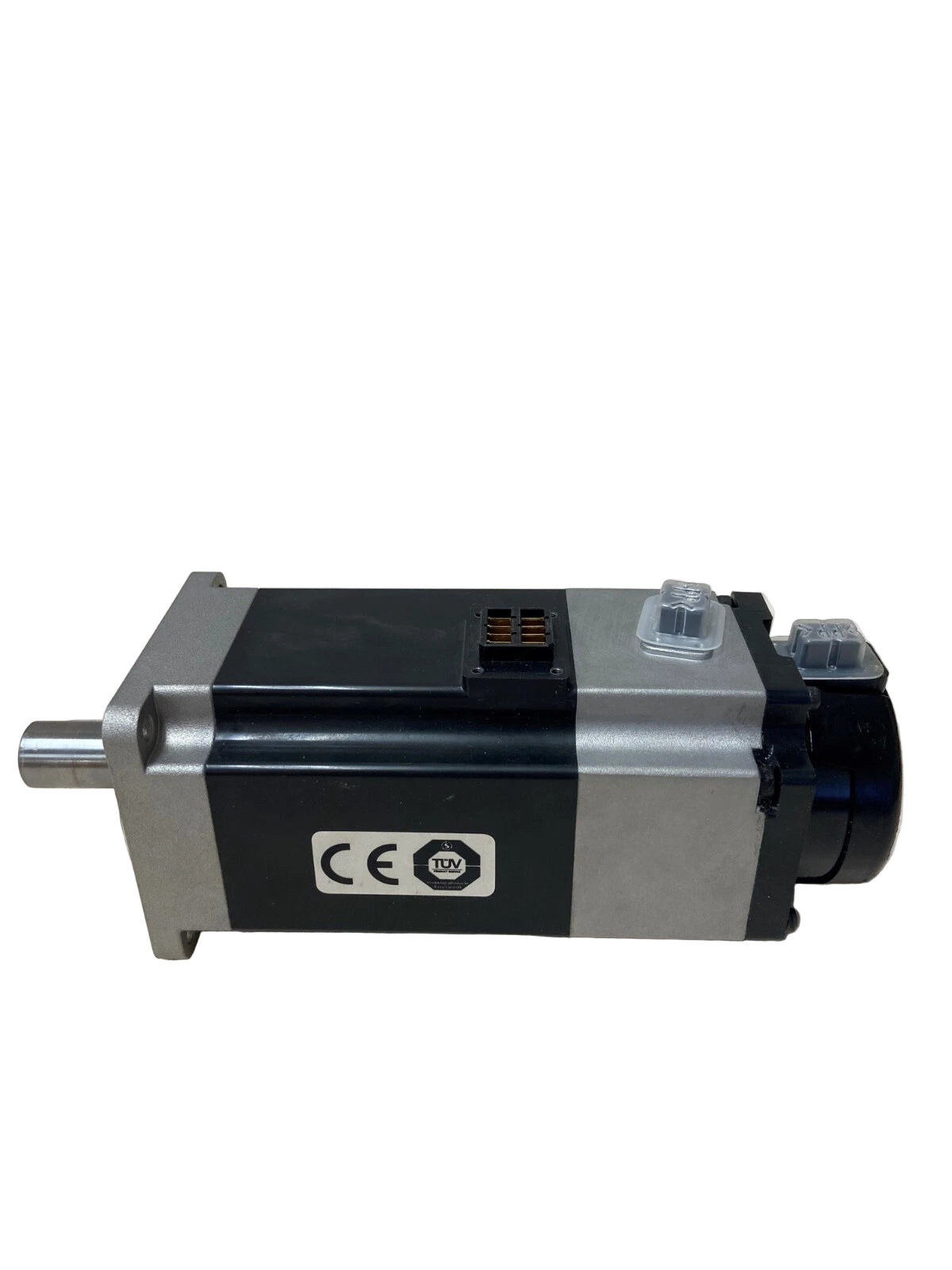

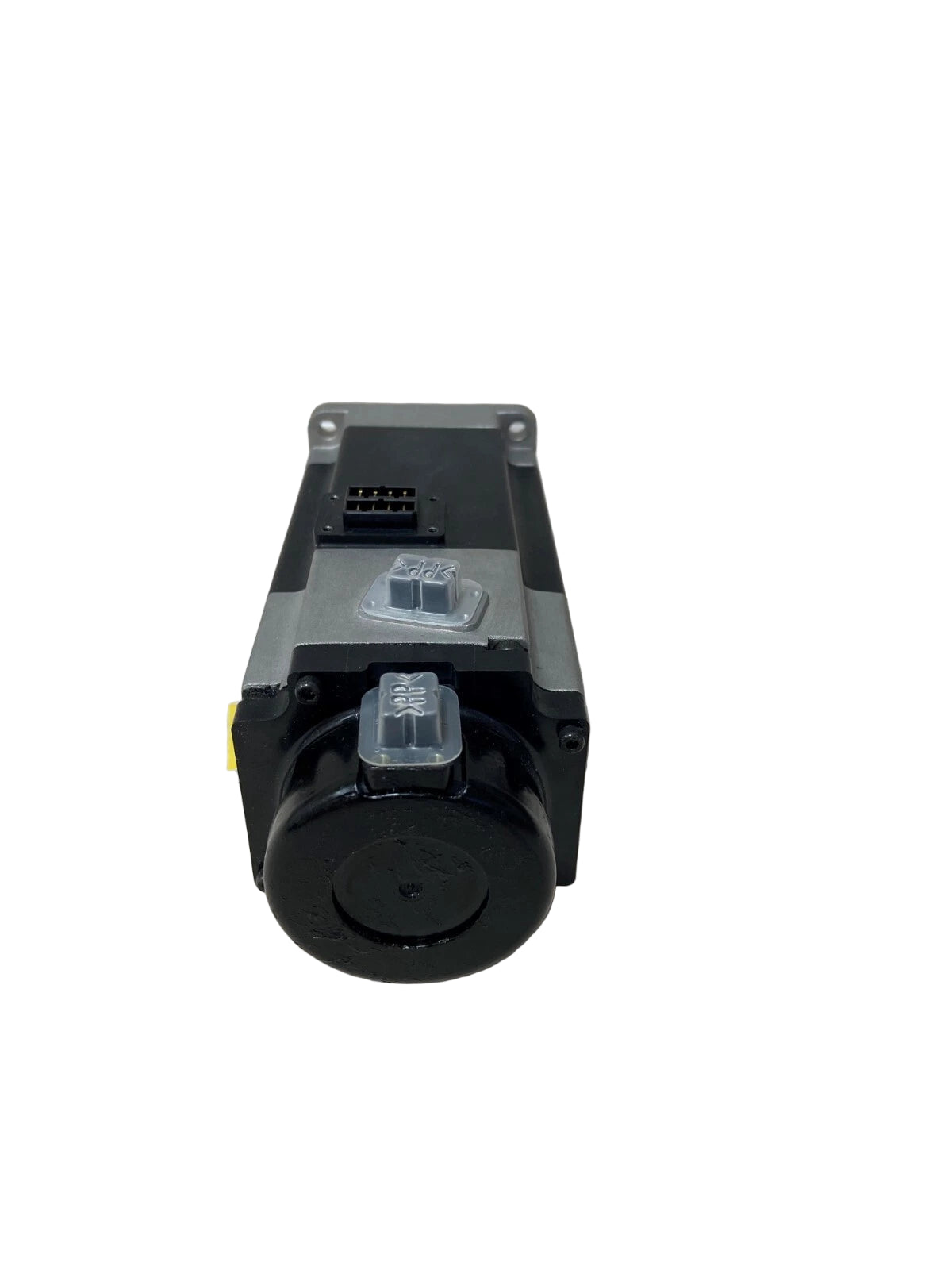

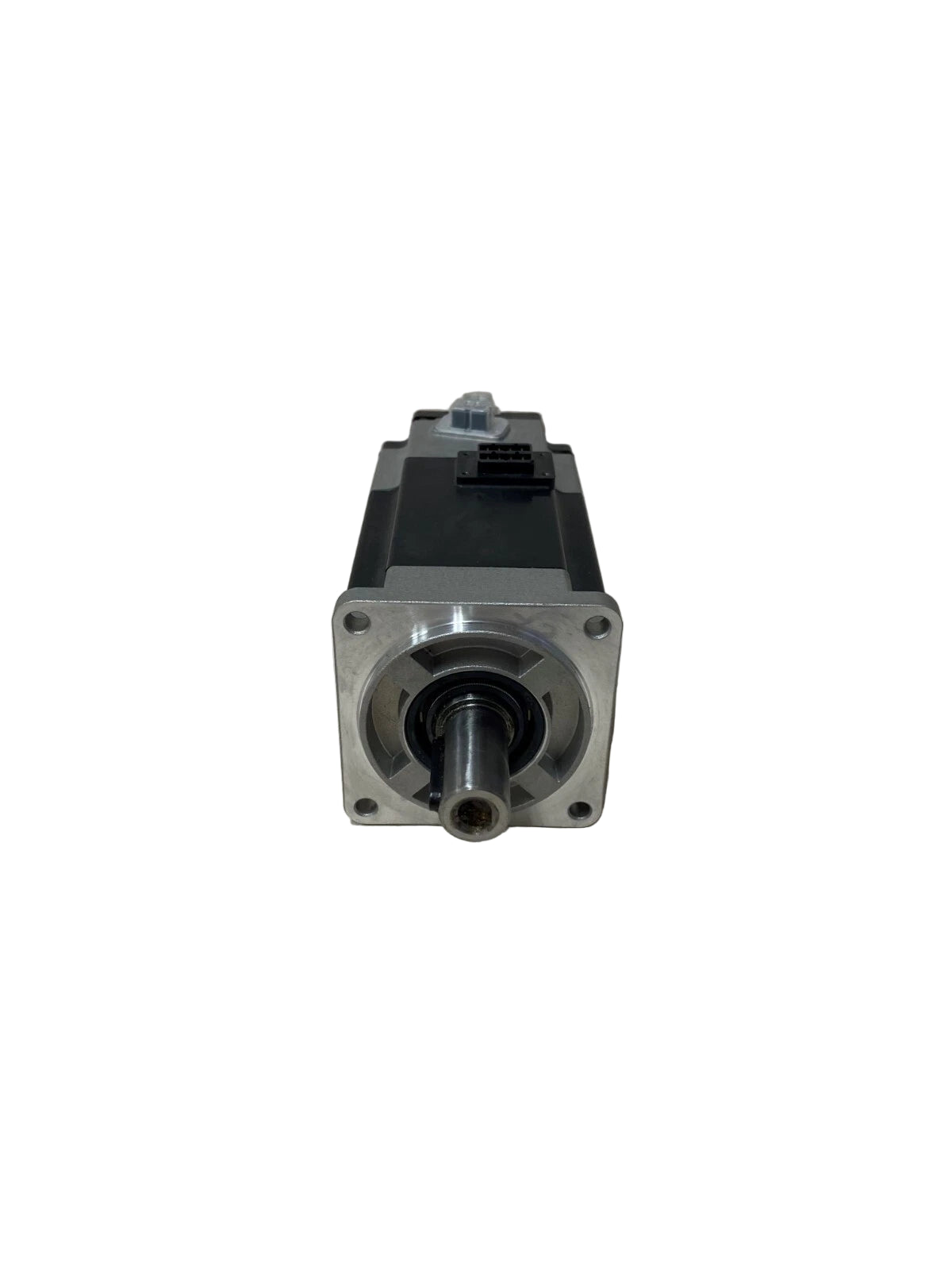

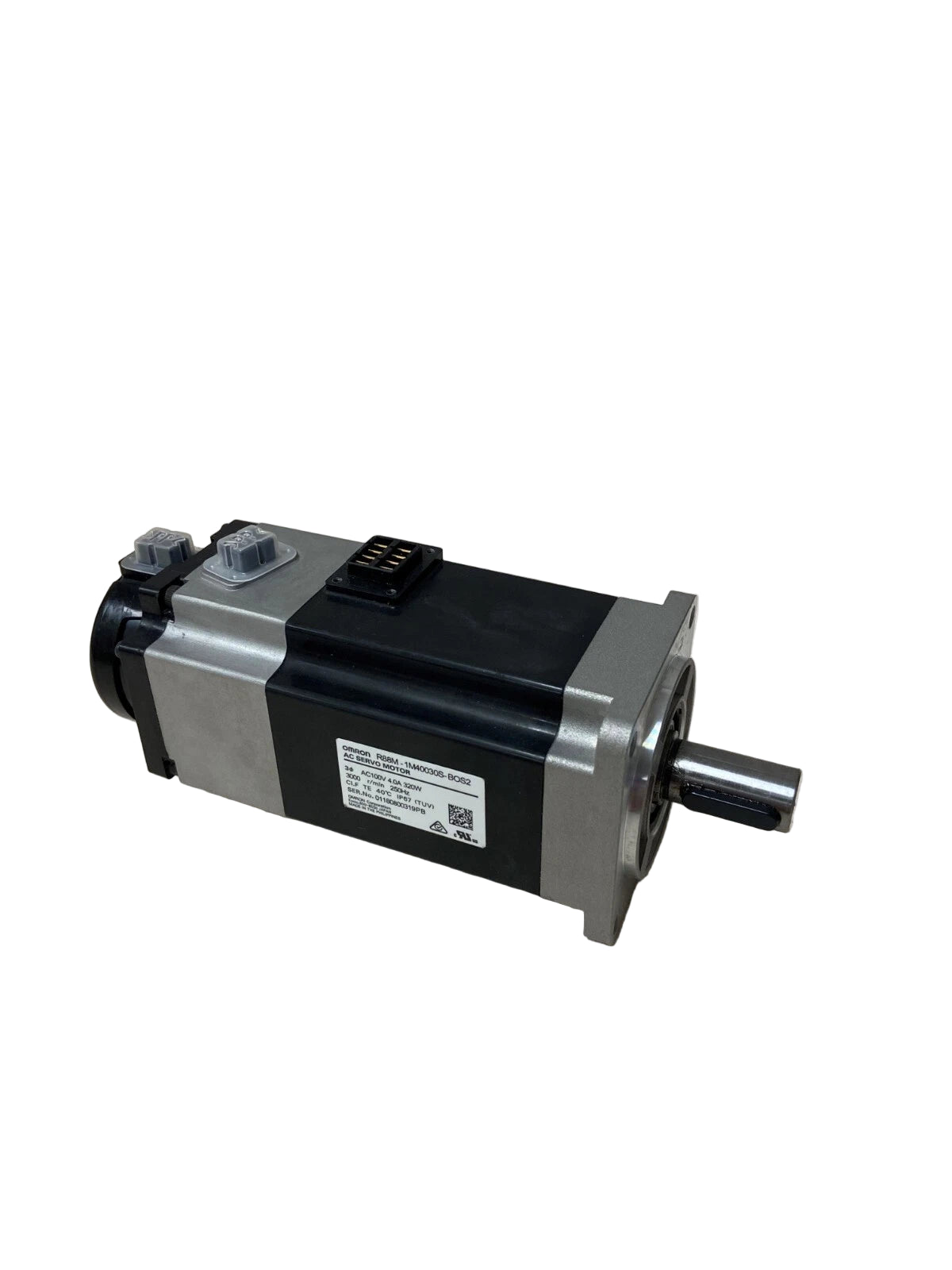

The Omron R88M-1M40030S-BOS2 AC Servo Motor is a 400 W, 100 VAC servo motor from Omron’s advanced 1S Series, designed for high-performance motion control in precision automation systems. Operating at 3000 rpm with a 1.27 Nm rated torque, this model includes an absolute encoder, holding brake, and oil seal for durability in demanding environments. Engineered for seamless integration with Omron servo drives, it provides smooth, responsive motion ideal for robotics, packaging, and machine control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Motion Control Equipment |
| Part Number | R88M-1M40030S-BOS2 |
| Subcategory | AC Servo Motors |
| Series | 1S Servo Series |
| Type | AC Servo Motor |
| Rated Power | 400 W |
| Rated Voltage | 100 VAC |
| Rated Torque | 1.27 Nm |
| Rated Speed | 3000 rpm |
| Maximum Speed | Approx. 5000 rpm (typical for series) |
| Feedback Device | Absolute Encoder (23-bit resolution) |
| Brake | Equipped (Electromagnetic Holding Brake) |
| Oil Seal | Included |
| Control Method | Synchronous AC Servo Control |
| Compatible Drives | Omron R88D-1SN and related 1S Series Drives |
| Rotor Inertia | Approx. 0.32 × 10⁻⁴ kg·m² (typical) |
| Shaft Type | Keyed Shaft |
| Insulation Class | Class F |
| Cooling Method | Natural Convection |
| Protection Rating | IP65 (with oil seal and mating connectors) |
| Mounting Type | Flange Mount |
| Ambient Operating Temperature | 0°C to +40°C |
| Storage Temperature | -20°C to +60°C |
| Construction | Aluminum Alloy Frame |
| Standards Compliance | CE, UL, RoHS |
| Application | Robotics, Conveyors, CNC, Packaging, Assembly Systems |
| Country of Origin | Japan |
| Weight | Approx. 2.9 lbs (1.3 kg) |
Information About R88M-1M40030S-BOS2
The R88M-1M40030S-BOS2 is part of the Omron 1S Servo Series, combining compact design, high torque density, and advanced feedback technology for precise and efficient motion control. Operating at 100 VAC, this 400 W motor offers 3,000 rpm rated speed and supports absolute multi-turn encoder feedback for position accuracy and fast synchronization with Omron’s servo drives (such as R88D-1SN series). The built-in electromagnetic brake ensures load holding during power-off conditions, while the oil seal provides resistance against dust, moisture, and lubricants for extended operational life. Optimized for system integration, it offers plug-and-play compatibility, simplified cabling, and consistent torque delivery across a wide speed range.
Key Features:
- High-Precision Motion Control: 400 W, 1.27 Nm rated torque at 3000 rpm for fast, stable operation.
- Absolute Encoder Feedback: Provides precise position control without re-homing at startup.
- Built-in Holding Brake: Maintains load position when power is off for vertical axis applications.
- Oil-Sealed Shaft: Protects against contamination and enhances longevity in harsh environments.
- Compact Design: Reduces installation space while maintaining high torque performance.
- Seamless Integration: Optimized for use with Omron 1S servo drives and Sysmac automation platforms.
- Energy-Efficient Operation: High-efficiency design reduces heat generation and power loss.
- Durable Construction: Designed for reliability in continuous-duty motion control systems.
The R88M-1M40030S-BOS2 delivers the reliability and precision required for advanced positioning, packaging, and automation machinery.
Description
The Omron R88M-1M40030S-BOS2 AC Servo Motor is a 400 W, 100 VAC servo motor from Omron’s advanced 1S Series, designed for high-performance motion control in precision automation systems. Operating at 3000 rpm with a 1.27 Nm rated torque, this model includes an absolute encoder, holding brake, and oil seal for durability in demanding environments. Engineered for seamless integration with Omron servo drives, it provides smooth, responsive motion ideal for robotics, packaging, and machine control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Motion Control Equipment |
| Part Number | R88M-1M40030S-BOS2 |
| Subcategory | AC Servo Motors |
| Series | 1S Servo Series |
| Type | AC Servo Motor |
| Rated Power | 400 W |
| Rated Voltage | 100 VAC |
| Rated Torque | 1.27 Nm |
| Rated Speed | 3000 rpm |
| Maximum Speed | Approx. 5000 rpm (typical for series) |
| Feedback Device | Absolute Encoder (23-bit resolution) |
| Brake | Equipped (Electromagnetic Holding Brake) |
| Oil Seal | Included |
| Control Method | Synchronous AC Servo Control |
| Compatible Drives | Omron R88D-1SN and related 1S Series Drives |
| Rotor Inertia | Approx. 0.32 × 10⁻⁴ kg·m² (typical) |
| Shaft Type | Keyed Shaft |
| Insulation Class | Class F |
| Cooling Method | Natural Convection |
| Protection Rating | IP65 (with oil seal and mating connectors) |
| Mounting Type | Flange Mount |
| Ambient Operating Temperature | 0°C to +40°C |
| Storage Temperature | -20°C to +60°C |
| Construction | Aluminum Alloy Frame |
| Standards Compliance | CE, UL, RoHS |
| Application | Robotics, Conveyors, CNC, Packaging, Assembly Systems |
| Country of Origin | Japan |
| Weight | Approx. 2.9 lbs (1.3 kg) |
Information About R88M-1M40030S-BOS2
The R88M-1M40030S-BOS2 is part of the Omron 1S Servo Series, combining compact design, high torque density, and advanced feedback technology for precise and efficient motion control. Operating at 100 VAC, this 400 W motor offers 3,000 rpm rated speed and supports absolute multi-turn encoder feedback for position accuracy and fast synchronization with Omron’s servo drives (such as R88D-1SN series). The built-in electromagnetic brake ensures load holding during power-off conditions, while the oil seal provides resistance against dust, moisture, and lubricants for extended operational life. Optimized for system integration, it offers plug-and-play compatibility, simplified cabling, and consistent torque delivery across a wide speed range.
Key Features:
- High-Precision Motion Control: 400 W, 1.27 Nm rated torque at 3000 rpm for fast, stable operation.
- Absolute Encoder Feedback: Provides precise position control without re-homing at startup.
- Built-in Holding Brake: Maintains load position when power is off for vertical axis applications.
- Oil-Sealed Shaft: Protects against contamination and enhances longevity in harsh environments.
- Compact Design: Reduces installation space while maintaining high torque performance.
- Seamless Integration: Optimized for use with Omron 1S servo drives and Sysmac automation platforms.
- Energy-Efficient Operation: High-efficiency design reduces heat generation and power loss.
- Durable Construction: Designed for reliability in continuous-duty motion control systems.
The R88M-1M40030S-BOS2 delivers the reliability and precision required for advanced positioning, packaging, and automation machinery.
