R88M-1M40030T-BS2 | Omron 1S Series EtherCAT AC Servo Motor 400W 3000RPM Absolute Encoder Brake
- Regular price
- $784.00
- Sale price
- $784.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R88M-1M40030T-BS2
Description

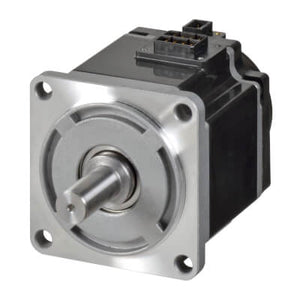

The Omron R88M-1M40030T-BS2 is an AC servo motor designed for high-precision EtherCAT-based motion control in industrial automation systems. The R88M-1M40030T-BS2 delivers 0.4 kW rated output at 3000 r/min and includes a 23-bit absolute encoder without battery for accurate positioning feedback. It is built with an integrated 24 VDC brake and a keyed, tapped shaft for secure mechanical coupling.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Automation Control Modules |
| Part Number | R88M-1M40030T-BS2 |
| Subcategory | Servo Motors |
| Motor Series | Omron 1S Series (Middle Inertia) |
| Servo Control Method | EtherCAT |
| Drive Supply Voltage | 230 V Single Phase |
| Rated Output Power | 0.4 kW (400 W) |
| Rated Speed | 3000 r/min |
| Rated Torque | 1.27 Nm |
| Peak Torque | 4.5 Nm |
| Encoder Type | Absolute Encoder Without Battery |
| Encoder Resolution | 23 Bit |
| Motor Brake | Integrated 24 VDC Brake |
| Motor Oil Seal | No |
| Flange Size | 60 mm Square |
| Shaft Diameter | 14 mm |
| Shaft Features | Keyed Shaft with Tap |
| Product Dimensions (H × W × D) | 82.6 mm × 60 mm × 163.5 mm |
| Weight | 4.19 lb |
Information About R88M-1M40030T-BS2
The R88M-1M40030T-BS2 is part of Omron’s 1S Series middle-inertia servo motor family, engineered for fast-response motion applications requiring stable torque and advanced network control. It operates on a 230 V single-phase supply and supports EtherCAT servo control for synchronized multi-axis automation systems. The motor includes an absolute encoder with 23-bit resolution that does not require battery backup, ensuring reliable position retention. With a 60 mm flange frame, 14 mm keyed shaft, and integrated brake, it is designed for compact industrial machinery such as robotics, packaging equipment, and automated production lines.
Key Features:
-
1S Series AC Servo Motor Design: Engineered for EtherCAT motion automation with middle-inertia performance.
-
0.4 kW Rated Output Power: Provides 400W servo capability for compact industrial positioning axes.
-
3000 r/min Rated Speed: Supports high-speed operation for responsive machine motion control.
-
High Torque Performance: Delivers 1.27 Nm rated torque with 4.5 Nm peak torque capacity.
-
Absolute Encoder Without Battery: Includes 23-bit absolute feedback with position retention without battery maintenance.
-
EtherCAT Servo Control Method: Designed for real-time networked motion synchronization in automation systems.
-
Integrated 24 VDC Brake: Provides holding and safety stopping capability in vertical or precision axis applications.
-
Keyed and Tapped Shaft Output: Ensures secure mechanical coupling for servo-driven machinery assemblies.
The R88M-1M40030T-BS2 delivers the reliability and precision required for EtherCAT servo motion control in industrial automation applications.
