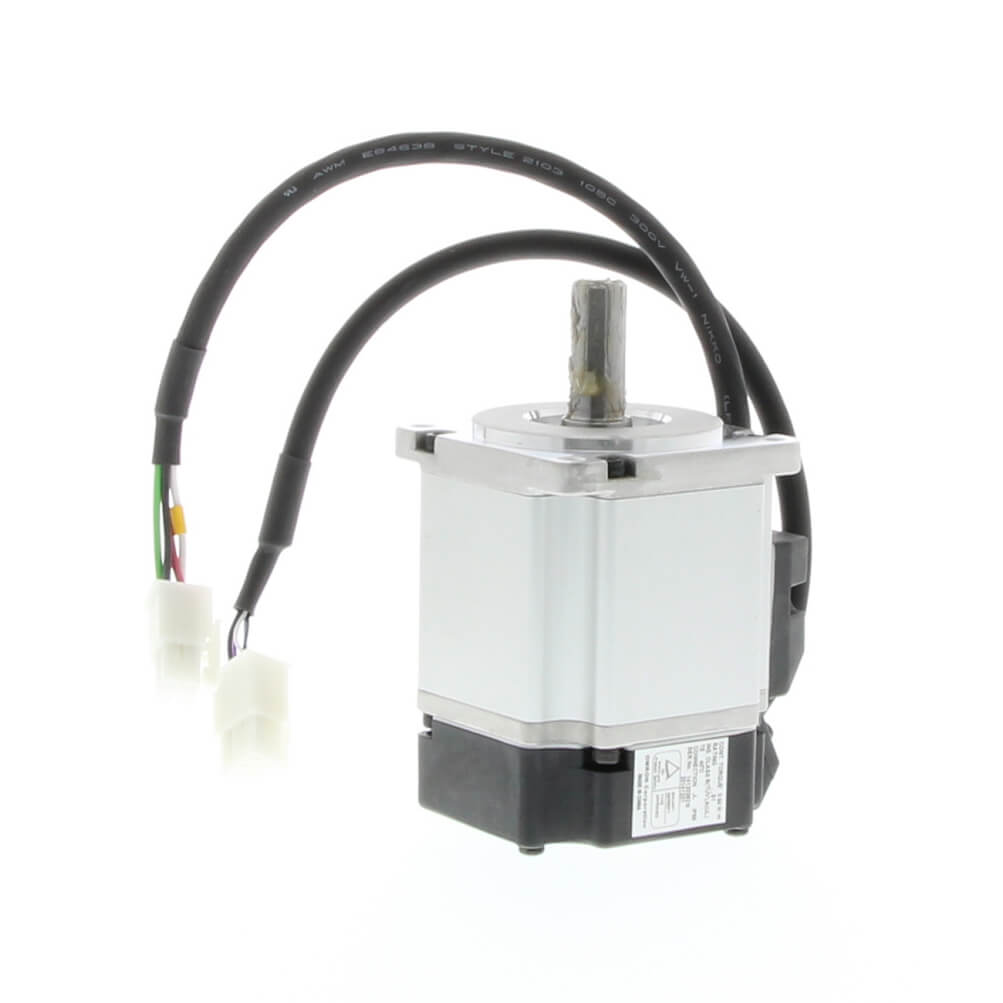

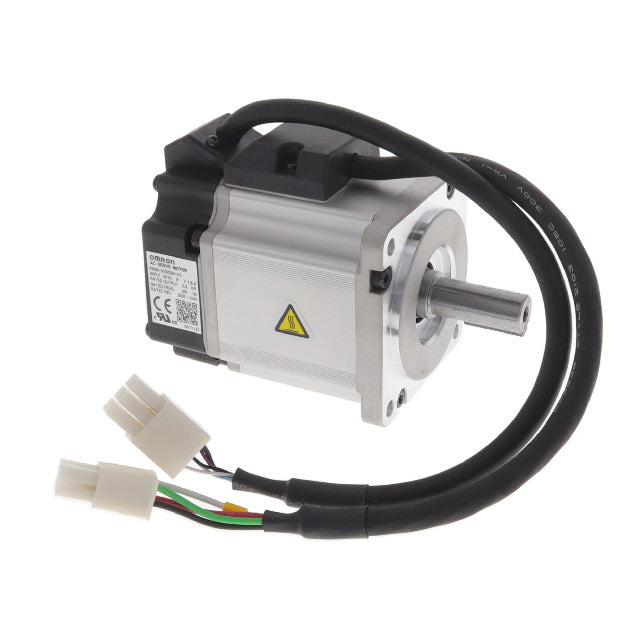

R88M-G20030H-S2 | Omron 200W AC Servo Motor 200VAC 5000 rpm
- Regular price
- $1,198.00
- Sale price
- $1,198.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: R88M-G20030H-S2
Description
The Omron R88M-G20030H-S2 is a 200 W AC servo motor engineered for high-speed, precision motion control. Operating on 200 VAC single-phase power, it delivers up to 5000 rpm with incremental encoder feedback, making it suitable for demanding automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Motors |
| Part Number | R88M-G20030H-S2 |
| Subcategory | AC Servo Motors |
| Series | R88M G-series |
| Motor Type | Cylindrical Servo Motor |
| Rated Output Power | 200 W |
| Rated Voltage | 200 VAC |
| Phase | Single Phase |
| Rated Current | 1.6 A |
| Maximum Current | 4.9 A |
| Rated Torque | 0.64 Nm |
| Peak Torque | 1.78 Nm |
| Maximum Speed | 5000 rpm |
| Encoder Type | Incremental Encoder (10,000 pulses) |
| Shaft Configuration | Straight, Keyed, Tapped |
| Mounting Type | Flange-mounted |
| Termination Style | Cable with Circular Connector |
| Cooling Method | Totally enclosed, self-cooling |
| Vibration Resistance | 49 m/s² |
| Dimensions | 60 mm x 60 mm square face |
| Shaft Diameter | 11.00 mm |
| Shaft Length | 30.00 mm |
| Mounting Hole Spacing | 70.00 mm |
| Operating Temperature | 0°C to 40°C |
| Approvals | CSA, UL |
| Weight | 1.8 lbs (816.5 g) |
Information About R88M-G20030H-S2
The R88M-G20030H-S2 is part of Omron’s G-series of AC servo motors, built for performance and reliability in dynamic control environments. This cylindrical, flange-mounted unit supports 200 VAC single-phase operation and features a straight keyed shaft with tapped end for secure mechanical integration. The motor’s incremental encoder provides 10,000 pulses per revolution, enabling fine control of positioning and speed. With a maximum speed of 5000 rpm and peak torque of 1.78 Nm, it serves in applications requiring fast, repeatable motion such as packaging machinery, robotics, and precise axis drives.
Key Features
-
High Rotational Speed: Reaches up to 5000 rpm, allowing fast response times in dynamic automation sequences and high-speed indexing.
-
High-Resolution Encoder: Equipped with a 10,000 pulse/rev incremental encoder for detailed position tracking and enhanced motion feedback precision.
-
Consistent Torque Output: Rated at 0.64 Nm and supports peak torque of 1.78 Nm to handle demanding load changes without performance drop.
-
Reliable Power Handling: Rated at 200 W with a 1.6 A operating current and 4.9 A peak current, ensuring stable energy delivery across varying cycles.
-
Flange-Mounted Design: Standard 60 mm square flange with 70 mm hole spacing ensures secure installation and alignment in machine assemblies.
-
Durable Shaft Configuration: Features a straight, keyed, and tapped shaft for tight coupling with gearboxes, pulleys, or couplers.
-
Safe and Certified: Complies with CSA and UL standards for use in regulated industrial control environments.
-
Efficient Cooling Structure: Totally enclosed self-cooling design protects internal components while maintaining optimal operating temperature.
The R88M-G20030H-S2 delivers the reliability and precision required for advanced servo-driven machinery and fine-tuned motion control systems.
