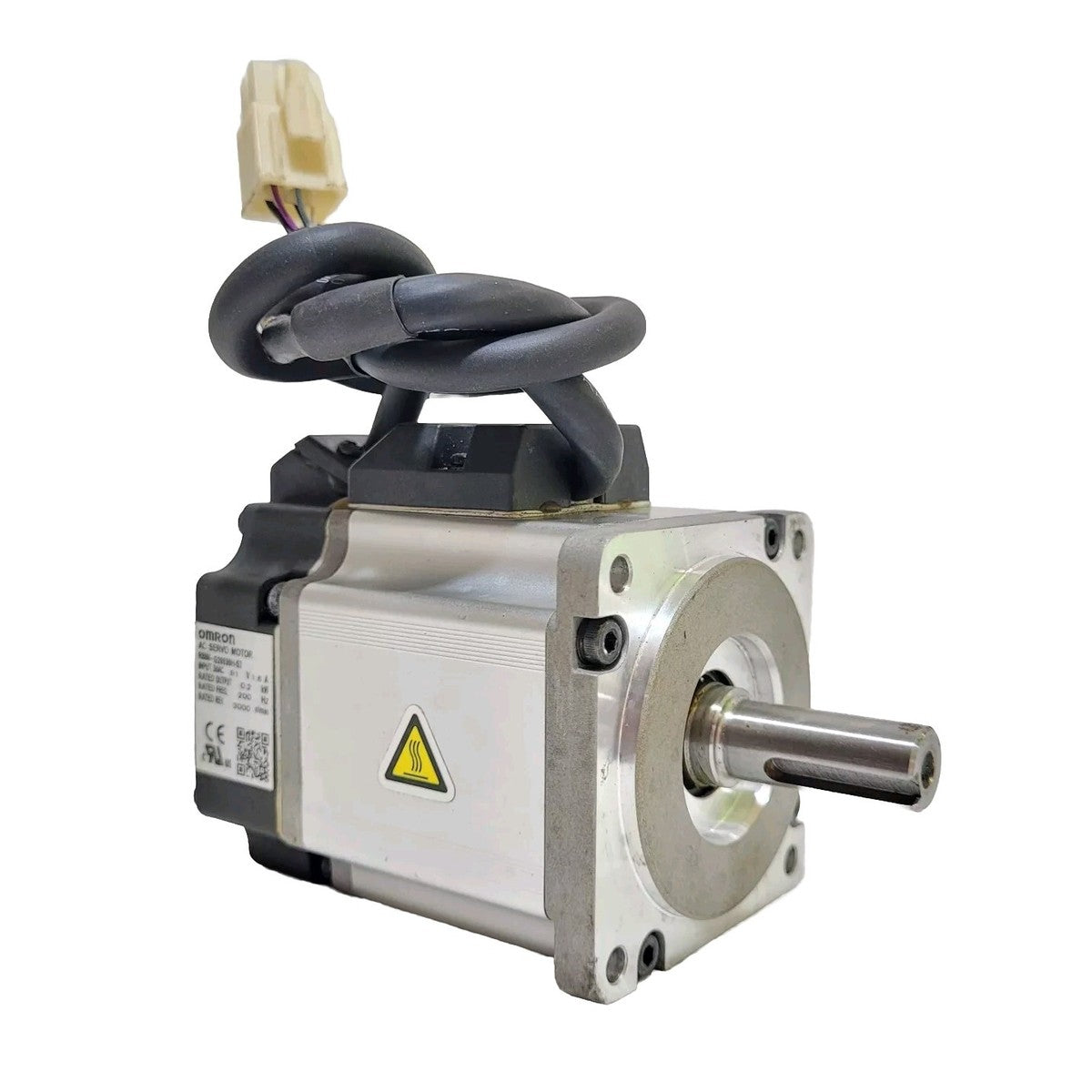

R88M-G20030H-S2-Z | Omron 200W AC Servo Motor
- Regular price
- $1,211.00
- Sale price
- $1,211.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: R88M-G20030H-S2-Z
Description
The Omron R88M-G20030H-S2-Z is a 200 W AC servo motor designed for high-accuracy motion tasks in compact automation setups. Operating on 200 VAC single-phase input, it delivers high-speed output and precise positioning with the help of an incremental encoder.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Motors |
| Part Number | R88M-G20030H-S2-Z |
| Subcategory | AC Servo Motors |
| Series | R88M G-series |
| Motor Type | Cylindrical Servo Motor |
| Rated Output Power | 200 W |
| Rated Voltage | 200 VAC |
| Phase | Single Phase |
| Rated Current | 1.6 A |
| Maximum Current | 4.9 A |
| Rated Torque | 0.64 Nm |
| Peak Torque | 1.78 Nm |
| Maximum Speed | 5000 rpm |
| Encoder Type | Incremental Encoder (10,000 pulses) |
| Shaft Configuration | Straight, Keyed, Tapped |
| Mounting Type | Flange-mounted |
| Termination Style | Cable with Circular Connector |
| Cooling Method | Totally enclosed, self-cooling |
| Vibration Resistance | 49 m/s² |
| Operating Temperature | 0°C to 40°C |
| Approvals | CSA, UL |
| Weight | 1.8 lbs (816.5 g) |
Information About R88M-G20030H-S2-Z
The R88M-G20030H-S2-Z is part of the G-series servo motor family from Omron, known for its compact build and advanced response performance. This model features a cylindrical, flange-mounted structure with a 60 mm square face and straight keyed shaft, supporting a maximum speed of 5000 rpm. With a 10,000 ppr incremental encoder, it enables reliable closed-loop control in demanding applications such as pick-and-place systems, robotic joints, or precision conveyors. Its rugged self-cooling enclosure and CSA/UL approvals make it a trusted solution in regulated industrial automation environments.
Key Features
-
Compact High-Speed Motor: Delivers up to 5000 rpm while maintaining positional stability in compact control systems.
-
Accurate Position Feedback: Integrated 10,000 pulse/rev incremental encoder enables precise real-time motion control.
-
Torque Stability Under Load: Offers rated torque of 0.64 Nm and peak torque of 1.78 Nm for high-load fluctuation tolerance.
-
Industrial Voltage Operation: Operates on 200 VAC single-phase with 1.6 A rated and 4.9 A peak current for consistent drive performance.
-
Durable Mechanical Integration: Straight keyed and tapped shaft allows for rigid coupling with drive mechanisms and precise mechanical alignment.
-
Reliable Flange Mounting: Square 60 mm face with 70 mm bolt spacing provides structural stability during high-speed motion.
-
Thermal and Mechanical Protection: Features a fully enclosed, self-cooling casing designed to manage internal heat and resist vibration.
-
Regulatory Compliance: Certified by UL and CSA for integration into safety-conscious machine designs.
The R88M-G20030H-S2-Z delivers the reliability and precision required for servo applications demanding tight control and compact configuration.
