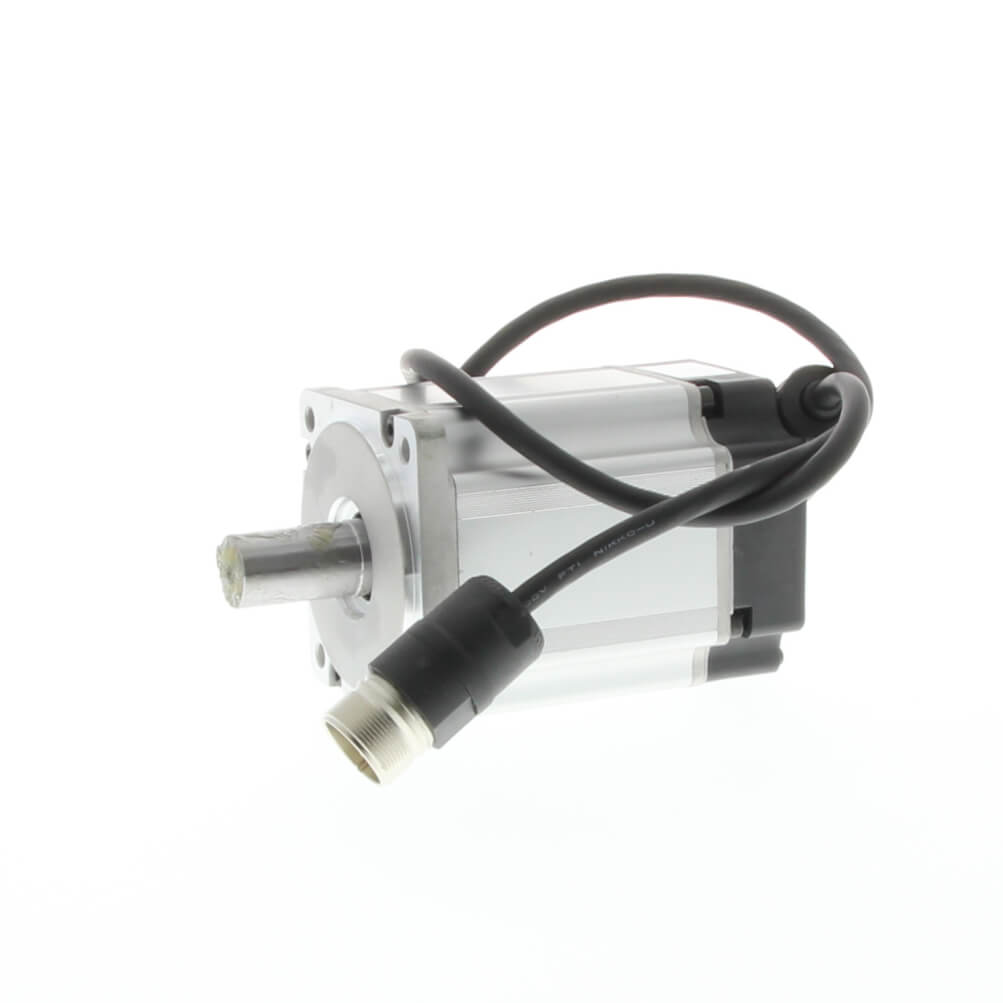

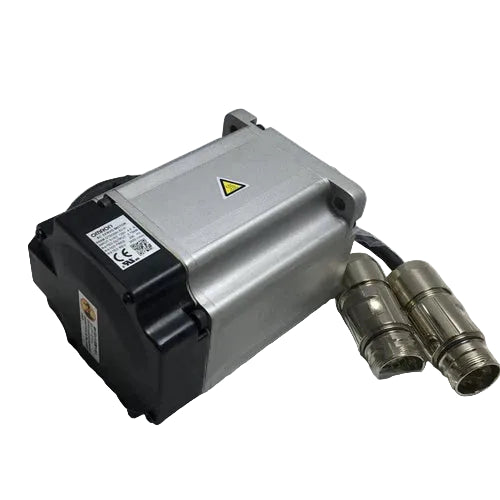

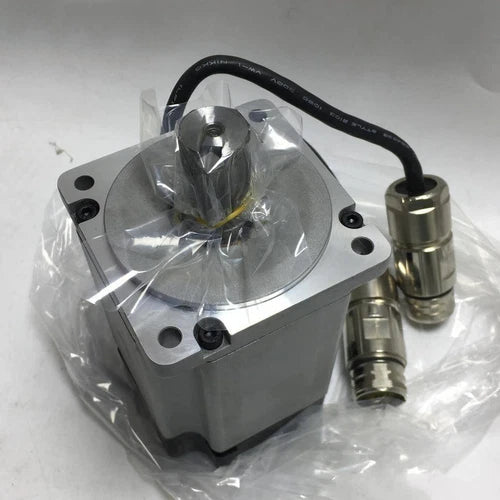

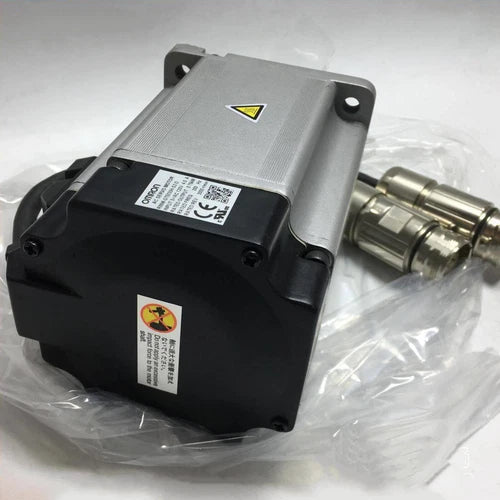

R88M-G75030H-S2-D | Omron G-Series AC Servo Motor 750W 3000RPM Incremental Encoder 2.4Nm Circular Connector
- Regular price
- $812.00
- Sale price
- $812.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R88M-G75030H-S2-D
Description
The Omron R88M-G75030H-S2-D is an AC servo motor designed for high-performance motion control applications in industrial automation systems. The R88M-G75030H-S2-D delivers 0.75 kW rated output at 3000 r/min with an incremental encoder for precise speed and position feedback. It operates on 200–230 VAC supply power and includes an 80 mm flange frame with a circular connector interface.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Automation Control Modules |
| Part Number | R88M-G75030H-S2-D |
| Subcategory | Servo Motors |
| Motor Series | Omron G-Series |
| Motor Type | AC Servo Motor |
| Rated Output Power | 0.75 kW (750 W) |
| Rated Speed | 3000 r/min |
| Rated Torque | 2.4 Nm |
| Peak Torque | 7.05 Nm |
| Encoder Type | Incremental Encoder |
| Encoder Resolution | 13 Bit |
| Servo Control Method | Analog, Pulse Train, MECHATROLINK II |
| Drive Supply Voltage | 230 V Single Phase |
| Flange Size | 80 mm Square |
| Shaft Diameter | 19 mm |
| Shaft Features | Keyed Shaft with Tap |
| Connection Type | Circular Connector |
| Product Weight (Unpacked) | 2300 g |
| Weight | 3.00 lbs |
Information About R88M-G75030H-S2-D
The R88M-G75030H-S2-D is part of Omron’s G-Series servo motor family, engineered for dynamic machine automation requiring stable torque and accurate positioning response. It supports multiple servo control methods including analog control, pulse train input, and MECHATROLINK II compatibility for flexible drive integration. The motor provides 2.4 Nm rated torque with a peak torque capability of 7.05 Nm to handle varying load demands in industrial motion systems. With an 80 mm square flange, 19 mm shaft diameter, and incremental 13-bit encoder feedback, it is designed for robotics, packaging equipment, conveyor positioning, and automated production machinery.
Key Features:
-
G-Series AC Servo Motor Design: Engineered for industrial motion and automation servo applications.
-
0.75 kW Rated Output Power: Provides 750W motor performance for medium-duty positioning systems.
-
3000 r/min Rated Speed: Supports high-speed servo operation for responsive machine control.
-
High Torque Capability: Delivers 2.4 Nm rated torque with 7.05 Nm peak torque output.
-
Incremental Encoder Feedback: Includes 13-bit incremental encoder for accurate motion monitoring.
-
Multi-Control Method Support: Compatible with analog, pulse train, and MECHATROLINK II servo control systems.
-
80 mm Flange Frame Size: Compact square flange housing for industrial machine mounting.
-
Circular Connector Interface: Designed for reliable electrical connection in automation installations.
The R88M-G75030H-S2-D delivers the reliability and precision required for AC servo motor motion control in industrial automation environments.
