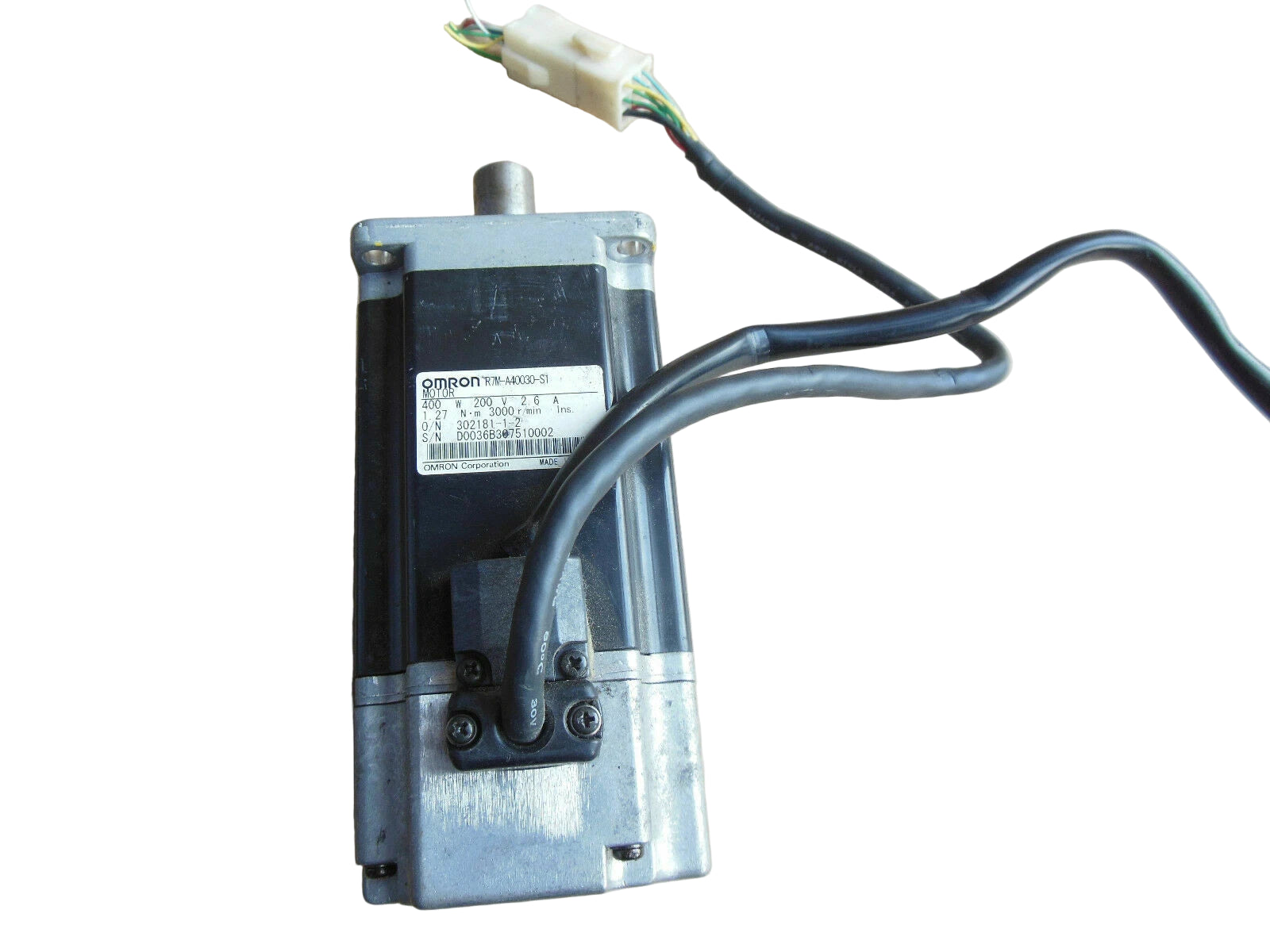

R88M-H05030 | Omron 50 W 3000 rpm AC Servo Motor R88M-H Series
- Regular price
- $2,579.00
- Sale price
- $2,579.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: R88M-H05030
Description
The Omron R88M-H05030 AC Servo Motor is a compact, high-performance rotary servo designed for precision motion control in automation and machinery applications. With a rated power of 50 W and a speed of 3000 rpm, it provides smooth torque output, fast response, and superior positioning accuracy. Built with Omron’s proven servo technology, this motor ensures efficient operation and long-term reliability in industrial control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | R88M-H05030 |
| Subcategory | Servo Motors |
| Series | R88M-H Series |
| Type | AC Servo Motor |
| Rated Output Power | 50 W (0.05 kW) |
| Rated Speed | 3000 rpm |
| Maximum Speed | 5000 rpm |
| Rated Torque | Approx. 0.16 N·m |
| Peak Torque | Approx. 0.48 N·m |
| Rated Current | Approx. 0.7 A (typical) |
| Power Supply Voltage | 200–230 VAC (three-phase) |
| Encoder Type | Incremental Encoder (typically 2500 ppr) |
| Brake Type | Without Brake (standard version) |
| Insulation Class | Class F |
| Cooling Method | Natural Convection / Forced Air (system dependent) |
| Protection Rating | IP65 (excluding shaft and connectors) |
| Shaft Type | Straight Shaft with Keyway |
| Mounting Type | Flange Mount |
| Connection Type | Prewired Cable or Circular Connector |
| Housing Material | Aluminum Alloy |
| Operating Temperature Range | 0°C to +40°C |
| Storage Temperature Range | -20°C to +60°C |
| Vibration Resistance | 4.9 m/s² (operating) |
| Compatible Servo Drives | Omron R88D-H Series Servo Drives |
| Compliance | CE, UL, RoHS Compliant |
| Weight | Approx. 1.1 kg (2.43 lb) |
Information About R88M-H05030
The R88M-H05030 belongs to Omron’s R88M-H Series, a line of advanced AC servo motors optimized for compatibility with Omron R88D-H Series servo drives. It delivers high torque-to-inertia performance for accurate control in high-speed applications such as robotics, conveyors, and machine tools. Designed for efficiency, the motor features low vibration, high acceleration response, and excellent thermal stability. With a durable housing and precision feedback encoder, it ensures dependable operation even under continuous-duty cycles in industrial environments.
Key Features:
- High-Precision Servo Motor: 50 W rated output for accurate speed and position control.
- Fast Rotational Speed: Operates at 3000 rpm for dynamic motion performance.
- Optimized for R88D-H Drives: Fully compatible with Omron’s H-Series servo amplifiers.
- Low Inertia Design: Enables rapid acceleration and smooth speed transitions.
- High-Accuracy Feedback: Equipped with precision encoder for exact position monitoring.
- Durable Construction: Built with high-strength materials for long service life.
- Compact Frame Size: Ideal for space-constrained machinery and automation systems.
- Omron Reliability: Designed for precision, efficiency, and long-term operation in industrial environments.
The R88M-H05030 delivers the reliability and precision required for positioning, motion control, and synchronization tasks in automated production systems.
