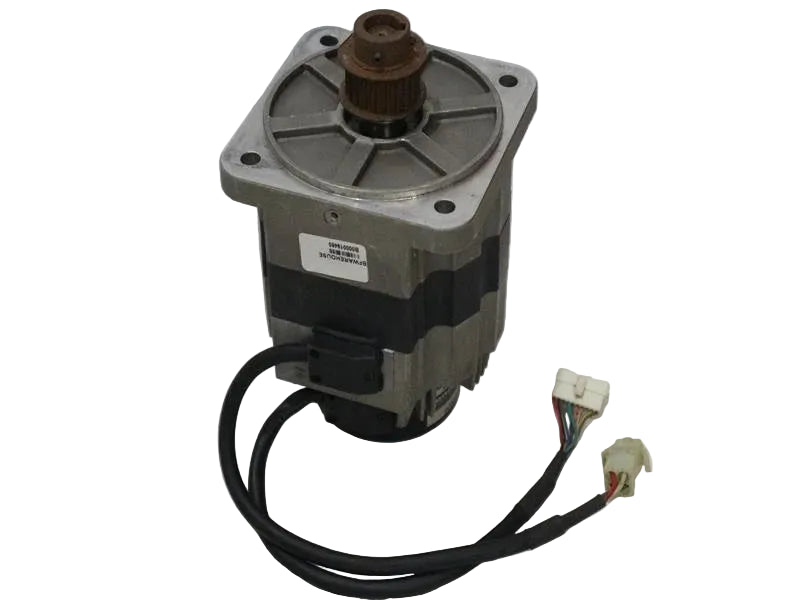

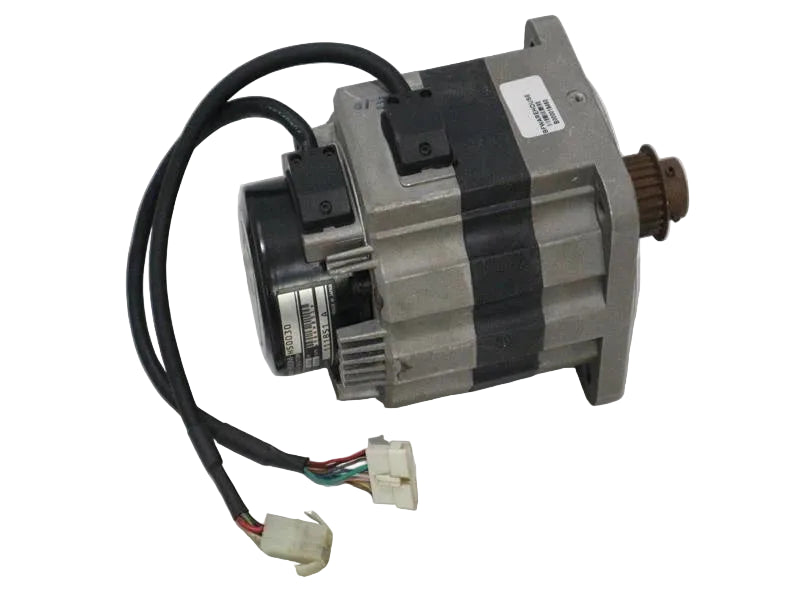

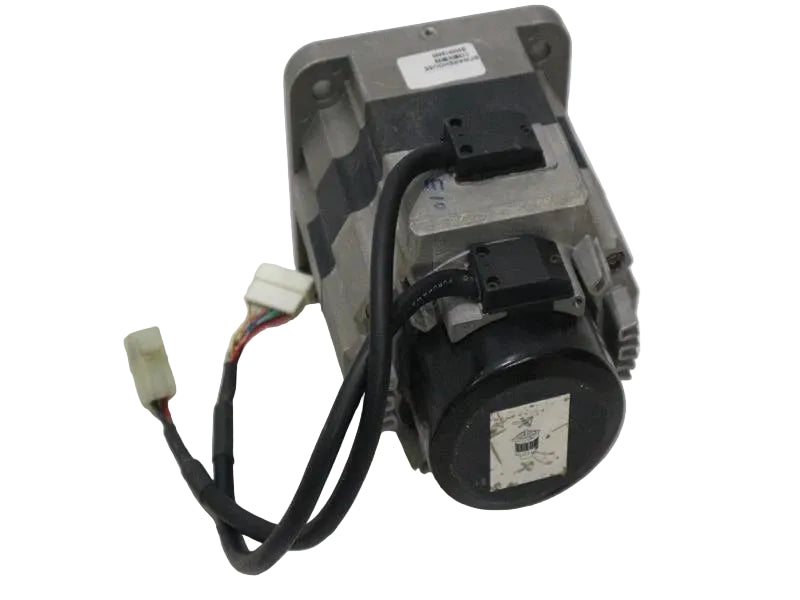

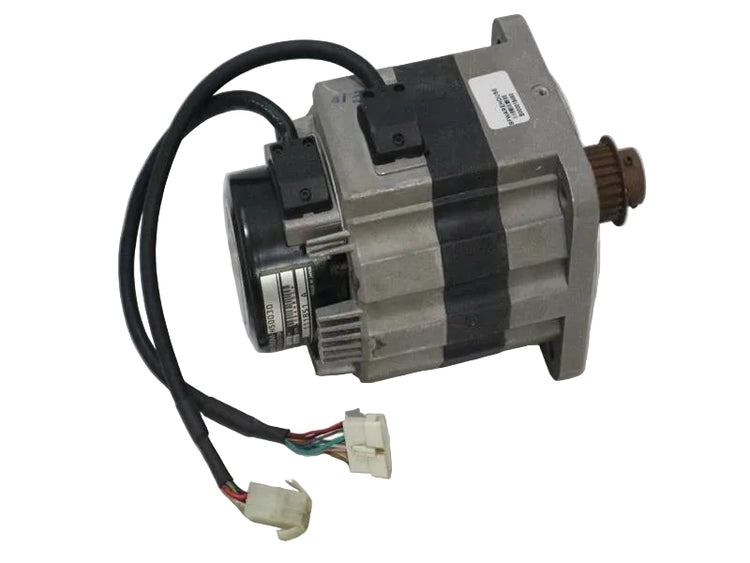

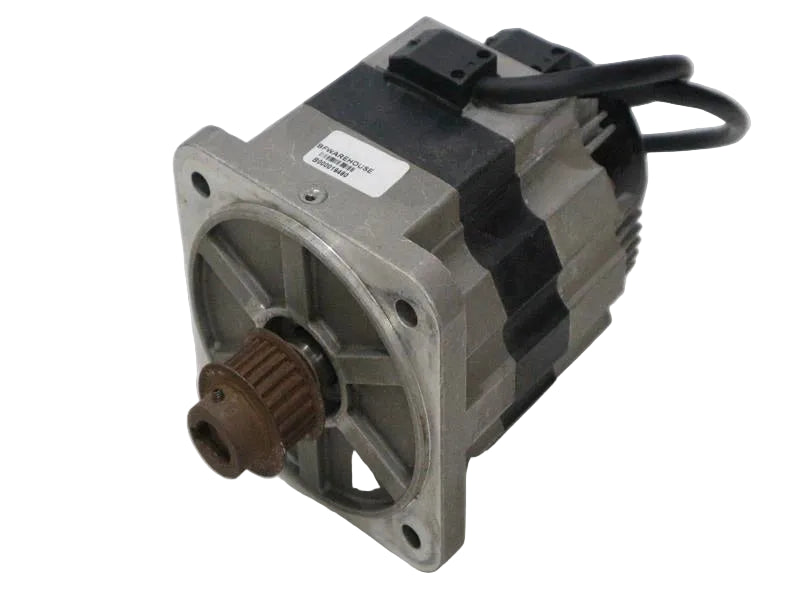

R88M-H50030 | Omron R88M Series 500W AC Servo Motor, 3000 RPM
- Regular price
- $1,842.00
- Sale price
- $1,842.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R88M-H50030
Description
The Omron R88M-H50030 servo motor is a 500 W AC servo motor designed for precise motion control in industrial automation systems. It delivers stable torque output and high-speed operation up to 3000 RPM, making it suitable for positioning, speed, and torque control applications. This motor is part of Omron’s R88M servo motor series and is intended for use with compatible Omron servo drives.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Motion Control |
| Part Number | R88M-H50030 |
| Subcategory | Servo Motors |
| Product Line | R88M |
| Product Type | AC Servo Motor |
| Rated Output Power | 500 W |
| Rated Speed | 3000 RPM |
| Maximum Speed | 4000 RPM |
| Rated Torque | 1.59 Nm |
| Maximum Torque | 4.76 Nm |
| Rated Voltage | Not specified |
| Motor Type | Standard type (without brake) |
| Insulation Class | Class B |
| Protection Class | IP52 |
| Coil Resistance | 1.6 Ω |
| Coil Inductance | 10 mH |
| Ambient Operating Temperature | 0 to 55°C |
| Storage Temperature | -10 to 75°C |
| Weight | 10.00 lbs (4.54 kg) |
Information About R88M-H50030
The R88M-H50030 is a standard-type servo motor within Omron’s R88M product line, engineered for reliable and accurate motion control. It features a robust motor design without a built-in brake, allowing flexible integration into machinery requiring continuous rotation or controlled stopping via external systems. The motor is rated for industrial operating environments with an IP52 protection class and Class B insulation for dependable thermal performance. Designed to operate across a wide temperature range, it supports demanding automation, packaging, and material handling applications.
Key Features:
- 500 W Rated Output: Provides balanced power for mid-range motion control applications.
- High-Speed Operation: Rated at 3000 RPM with a maximum speed of 4000 RPM.
- Stable Torque Performance: Delivers 1.59 Nm rated torque with up to 4.76 Nm maximum torque.
- Standard Servo Motor Design: Supplied without an integrated brake for flexible system design.
- Industrial Protection Rating: IP52 enclosure suitable for controlled industrial environments.
- Class B Insulation: Ensures reliable thermal endurance during continuous operation.
- Omron R88M Series Compatibility: Designed for use with Omron AC servo drive systems.
The R88M-H50030 delivers the reliability and precision required for industrial motion control, positioning, and automated machinery applications.
Description
The Omron R88M-H50030 servo motor is a 500 W AC servo motor designed for precise motion control in industrial automation systems. It delivers stable torque output and high-speed operation up to 3000 RPM, making it suitable for positioning, speed, and torque control applications. This motor is part of Omron’s R88M servo motor series and is intended for use with compatible Omron servo drives.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Motion Control |
| Part Number | R88M-H50030 |
| Subcategory | Servo Motors |
| Product Line | R88M |
| Product Type | AC Servo Motor |
| Rated Output Power | 500 W |
| Rated Speed | 3000 RPM |
| Maximum Speed | 4000 RPM |
| Rated Torque | 1.59 Nm |
| Maximum Torque | 4.76 Nm |
| Rated Voltage | Not specified |
| Motor Type | Standard type (without brake) |
| Insulation Class | Class B |
| Protection Class | IP52 |
| Coil Resistance | 1.6 Ω |
| Coil Inductance | 10 mH |
| Ambient Operating Temperature | 0 to 55°C |
| Storage Temperature | -10 to 75°C |
| Weight | 10.00 lbs (4.54 kg) |
Information About R88M-H50030
The R88M-H50030 is a standard-type servo motor within Omron’s R88M product line, engineered for reliable and accurate motion control. It features a robust motor design without a built-in brake, allowing flexible integration into machinery requiring continuous rotation or controlled stopping via external systems. The motor is rated for industrial operating environments with an IP52 protection class and Class B insulation for dependable thermal performance. Designed to operate across a wide temperature range, it supports demanding automation, packaging, and material handling applications.
Key Features:
- 500 W Rated Output: Provides balanced power for mid-range motion control applications.
- High-Speed Operation: Rated at 3000 RPM with a maximum speed of 4000 RPM.
- Stable Torque Performance: Delivers 1.59 Nm rated torque with up to 4.76 Nm maximum torque.
- Standard Servo Motor Design: Supplied without an integrated brake for flexible system design.
- Industrial Protection Rating: IP52 enclosure suitable for controlled industrial environments.
- Class B Insulation: Ensures reliable thermal endurance during continuous operation.
- Omron R88M Series Compatibility: Designed for use with Omron AC servo drive systems.
The R88M-H50030 delivers the reliability and precision required for industrial motion control, positioning, and automated machinery applications.
