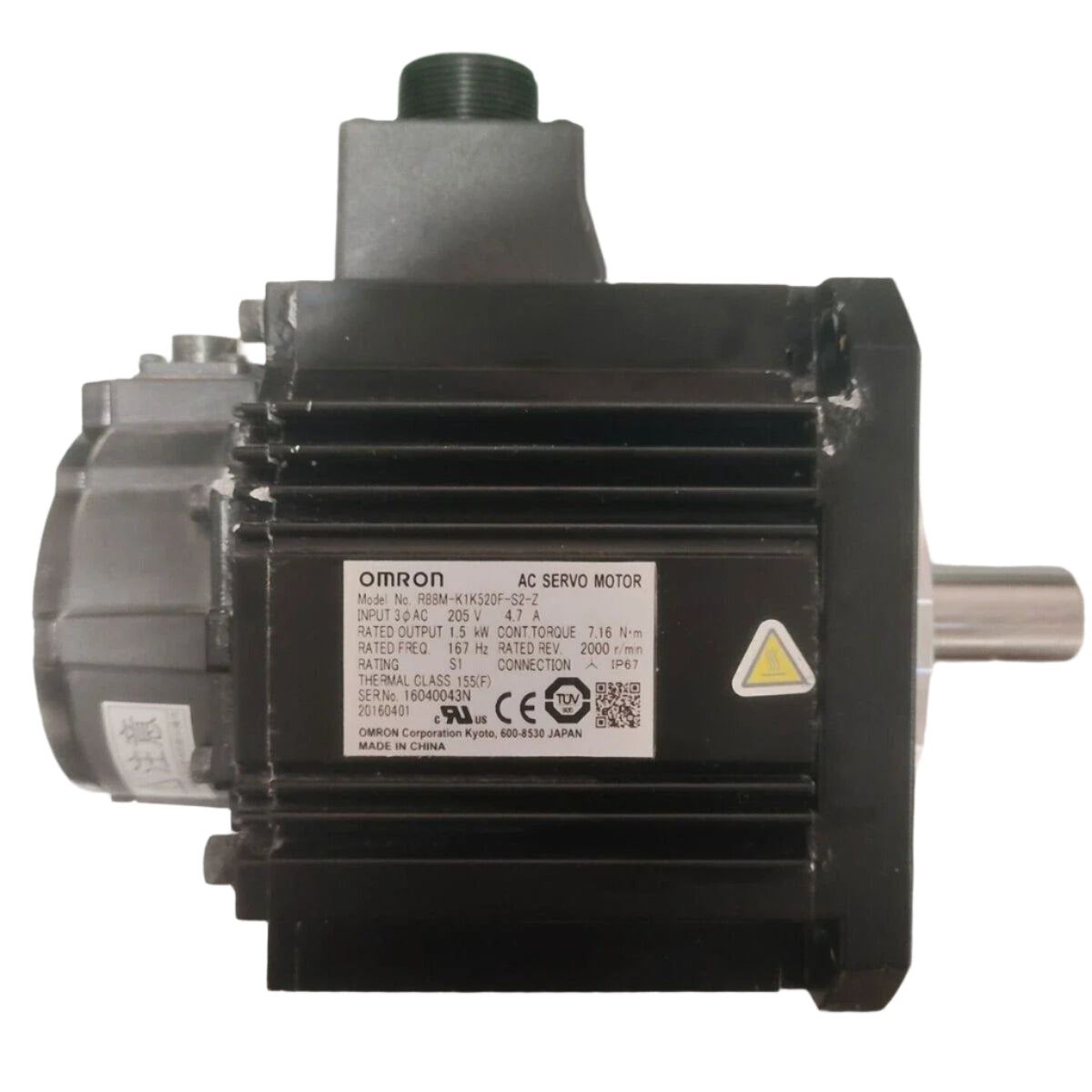

R88M-K1K520F-S2-Z | Omron Servo Motor
- Regular price
- $1,780.00
- Sale price
- $1,780.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: R88M-K1K520F-S2-Z
Description
The Omron R88M-K1K520F-S2-Z is a 1.5 kW AC servo motor from the Accurax G5 series, engineered for high-precision motion control in industrial automation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Cooling & Ventilation |
| Part Number | R88M-K1K520F-S2-Z |
| Subcategory | Waterproof AC Axial Flow Fan |
| Product Type | Waterproof AC Axial Flow Fan |
| Rated Voltage | 200 V / 230 V (variants) |
| Permitted Voltage Range | 85% to 110% of rated voltage |
| Frequency | 50/60 Hz |
| Rated Current | 50 Hz: 0.109 A; 60 Hz: 0.098 A |
| Rated Input Power | 50 Hz: 16 W; 60 Hz: 15 W |
| Rated Speed | 50 Hz: 2690 rpm; 60 Hz: 3040 rpm |
| Max Air Volume (Flow Rate) | 50 Hz: 2.3 m³/min; 60 Hz: 2.5 m³/min |
| Max Static Pressure | 50 Hz: 70 Pa; 60 Hz: 69.6 Pa |
| Noise Level | 50 Hz: 43 dB; 60 Hz: 46 dB |
| Protection Structure | IP65 |
| Bearing Type | High-reliability bearing |
| Blade Material Options | Resin (Type 24), Metal (Type 48) |
| Mounting Style | Square cutout with concealed hole-cut |
| Optional Accessories | Finger guard, filter, plug cord, screws |
| Certifications | UL, CSA, VDE, EN/IEC |
| Lineup | Single, Double, Triple axial fan models |
| Additional Features | One-step mounting, reversible cover direction |
| Weight | 2.26 kgs |
Information About R88M-K1K520F-S2-Z
The Omron R88M-K1K520F-S2-Z is a high-performance AC servo motor from the Accurax G5 series, designed for precise motion control in demanding industrial environments. With a rated power output of 1.5 kW and operating at 400 VAC, it provides high torque performance—ideal for applications such as robotics, packaging, and automated machinery. The motor is equipped with a high-resolution 20-bit incremental encoder for accurate feedback and positioning. Its compact form factor includes a 130 mm square flange and a 22 mm shaft with key and tap, ensuring versatile integration. The IP67 protection rating enhances durability in harsh operating conditions.
Key Features:
- Product Type: AC Servo Motor
- Series: Accurax G5
- Rated Output Power: 1.5 kW
- Rated Speed: 2000 rpm
- Rated Torque: 7.16 Nm
- Peak Torque: 21.5 Nm
- Rated Voltage: 400 VAC
- Encoder Type: Incremental
- Encoder Resolution: 20-bit
- Flange Size: 130 mm square
- Shaft Diameter: 22 mm (with key and tap)
- Protection Rating: IP67
This servo motor is compatible with Omron’s R88D-KN15F-ECT EtherCAT servo drive and supports advanced motion control features for seamless system integration.
