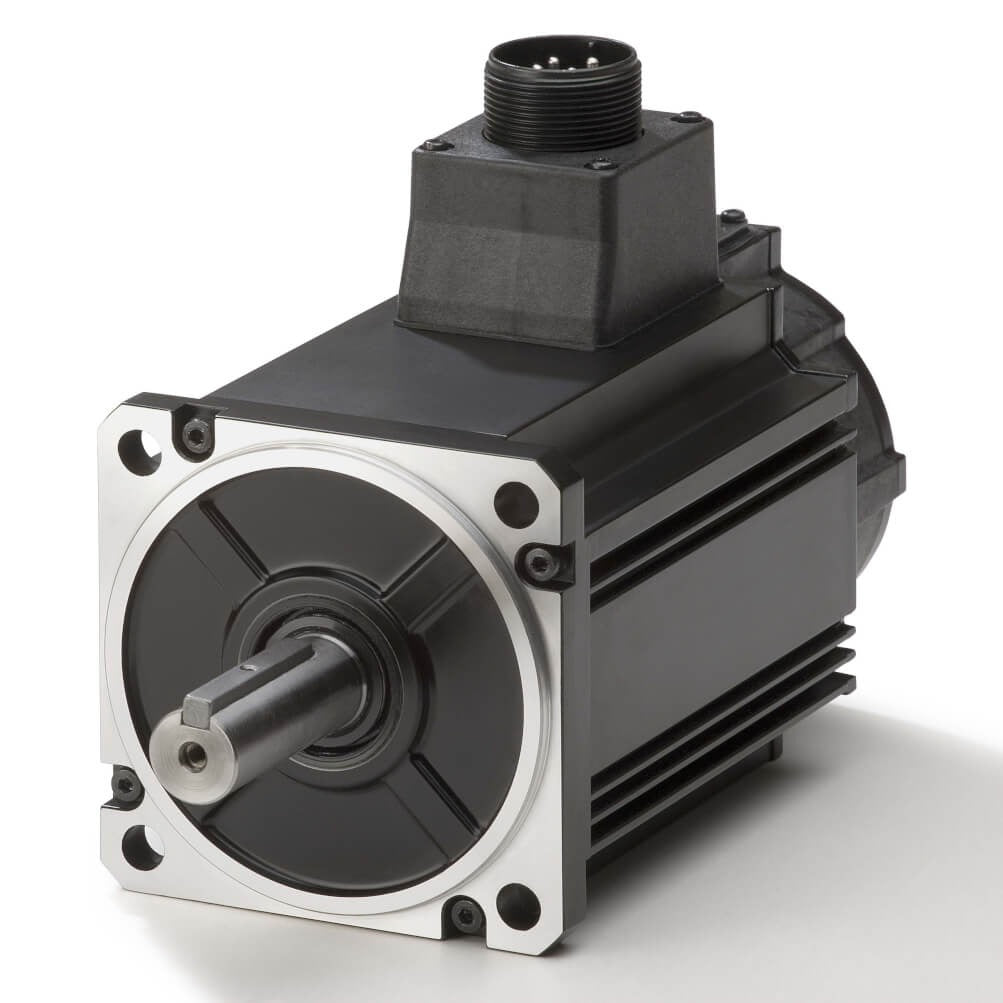

R88M-K2K030T-S2 | Omron G5 Series AC Servo Motor
- Regular price
- $3,299.00
- Sale price
- $3,299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: R88M-K2K030T-S2
Description
The Omron R88M-K2K030T-S2 is a high-performance AC servo motor designed for dynamic and precise motion control. It delivers 2 kW of power with a rated speed of 3000 RPM and a peak speed of 5000 RPM.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
Controls & Indicators
|
| Part Number | R88M-K2K030T-S2 |
| Subcategory | Control Accessory |
| Series | R88M-K |
| Electrical Time Constant | 6.7 ms |
| Unit Weight | Approx. 5.3 kg |
| Power Rating | 2 kW |
| Rated Torque | 6.37 Nm |
| Rated Speed | 3000 RPM |
| Momentary Max. Speed | 5000 RPM |
| Momentary Max. Torque | 19.1 Nm |
| Rated Current | 11.3 A |
| Momentary Max. Current | 48 A |
| Shaft | Straight |
| Torque Constant | 0.44 Nm/A |
| Power Rate | 110 kW/s |
| Mechanical Time Constant | 0.44 ms |
| Allowable Radial Load | 490 N |
| Allowable Thrust Load | 196 N |
Information About R88M-K2K030T-S2
The R88M-K2K030T-S2 is part of Omron’s advanced G5 series, engineered for demanding industrial applications that require speed, accuracy, and fast response times. With a power rating of 2 kW and a rated torque of 6.37 Nm, it provides high output performance in a compact form factor weighing approximately 5.3 kg. The motor features a straight shaft design and includes both electrical and mechanical refinements such as a 6.7 ms electrical time constant and a mechanical time constant of 0.44 ms, ensuring responsiveness during high-speed operations. It can deliver a momentary peak torque of 19.1 Nm and momentary current up to 48 A, making it suitable for tasks that involve high inertia or rapid acceleration.
Key Features:
- Power Rating – 2 kW: Delivers strong output for high-speed, high-torque motion control in demanding automation setups.
- Rated Speed – 3000 RPM: Ensures stable continuous operation with precise velocity regulation for positioning tasks.
- Momentary Maximum Speed – 5000 RPM: Supports short bursts of high-speed rotation for acceleration-intensive applications.
- Rated Torque – 6.37 Nm and Peak Torque – 19.1 Nm: Offers reliable torque for constant loads with the capacity for torque surges when needed.
- Rated Current – 11.3 A and Peak Current – 48 A: Allows fast torque response while maintaining thermal stability under typical duty cycles.
- Allowable Radial/Thrust Loads – 490 N / 196 N: Designed to withstand mechanical loads during continuous operation in integrated assemblies.
The R88M-K2K030T-S2 is built for precision control in high-speed and high-load industrial applications. It combines compact power, torque flexibility, and mechanical strength for seamless system performance.
