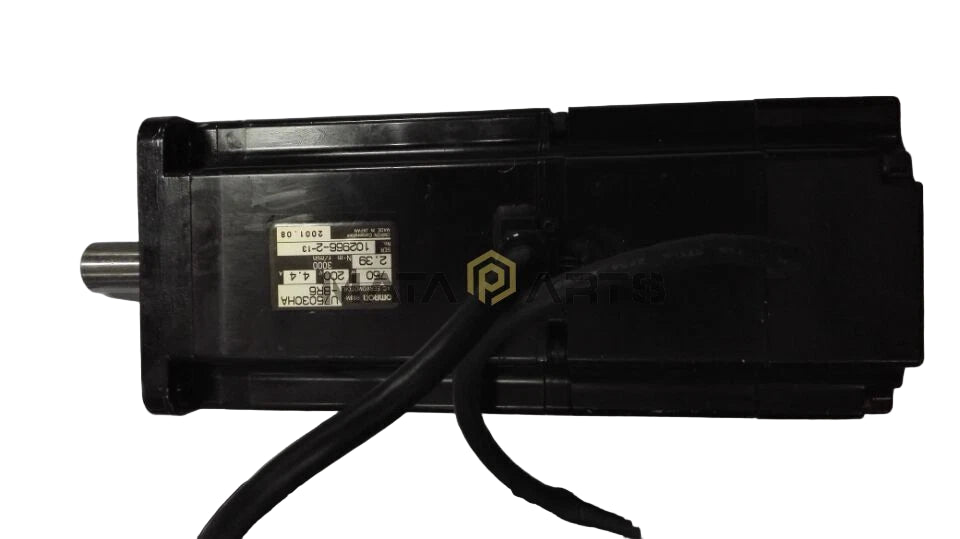

R88M-U75030HA-BR6 | Omron 750 W AC Servo Motor 3000 rpm with Brake and Encoder
- Regular price
- $994.00
- Sale price
- $994.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: R88M-U75030HA-BR6
Description
The Omron R88M-U75030HA-BR6 Servo Motor is a high-performance rotary servo unit designed for precision motion control in industrial automation systems. With a 750 W power rating and integrated brake, it delivers fast, accurate torque response and smooth rotational control. Built to meet Omron’s high-quality motion standards, this motor ensures reliable performance in demanding applications such as robotics, CNC machinery, and automated manufacturing lines.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | R88M-U75030HA-BR6 |
| Subcategory | Servo Motors |
| Series | R88M-U Series |
| Type | AC Servo Motor |
| Rated Output Power | 750 W (0.75 kW) |
| Rated Speed | 3000 rpm |
| Rated Torque | Approx. 2.4 N·m (typical for 750 W model) |
| Maximum Speed | 5000 rpm |
| Encoder Type | Incremental Encoder (typically 2500 P/R) |
| Brake Type | Electromagnetic Holding Brake |
| Power Supply Voltage | 200–230 VAC (three-phase) |
| Insulation Class | Class F |
| Cooling Method | Natural Convection / Forced Air (system dependent) |
| Protection Rating | IP65 (excluding shaft and connector) |
| Connection Type | Prewired cable or connector (varies by configuration) |
| Mounting Type | Flange Mount |
| Shaft Type | Straight Shaft with Keyway |
| Frame Size | Standard R88M-U 750 W frame (approx. 80 mm square) |
| Operating Temperature Range | 0°C to +40°C |
| Storage Temperature Range | -20°C to +60°C |
| Vibration Resistance | 4.9 m/s² (operating) |
| Compliance | CE, UL, and RoHS Compliant |
| Weight | Approx. 3.5 kg (7.7 lb) |
Information About R88M-U75030HA-BR6
The R88M-U75030HA-BR6 belongs to Omron’s R88M-U Series of AC servo motors, developed for compatibility with Omron’s R88D-U Series servo drives. It features a 750 W (0.75 kW) output capacity and operates at 3000 rpm, making it suitable for medium-torque, high-speed motion control. The motor includes a holding brake and incremental encoder for precise positioning feedback and safe stopping functionality. Its compact, robust housing and high-efficiency design provide long service life and consistent performance under continuous-duty operation in industrial environments.
Key Features:
- High-Precision Servo Motor: 750 W rated power with 3000 rpm speed for smooth and accurate motion control.
- Integrated Brake: Equipped with an electromagnetic brake for secure load holding and safety.
- Encoder Feedback: Includes incremental encoder for precise position detection and control.
- R88M-U Series Compatibility: Designed to pair with Omron R88D-U servo drives.
- Durable Industrial Construction: Compact, sealed housing ensures long service life in harsh conditions.
- Efficient Operation: Optimized for fast response, low vibration, and minimal heat generation.
- Wide Application Range: Ideal for robotics, packaging, conveyor systems, and CNC motion equipment.
- Omron Quality: Engineered for reliability, precision, and long-term operational stability.
The R88M-U75030HA-BR6 delivers the reliability and precision required for motion control, automation, and high-performance servo drive systems.
Description
The Omron R88M-U75030HA-BR6 Servo Motor is a high-performance rotary servo unit designed for precision motion control in industrial automation systems. With a 750 W power rating and integrated brake, it delivers fast, accurate torque response and smooth rotational control. Built to meet Omron’s high-quality motion standards, this motor ensures reliable performance in demanding applications such as robotics, CNC machinery, and automated manufacturing lines.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | R88M-U75030HA-BR6 |
| Subcategory | Servo Motors |
| Series | R88M-U Series |
| Type | AC Servo Motor |
| Rated Output Power | 750 W (0.75 kW) |
| Rated Speed | 3000 rpm |
| Rated Torque | Approx. 2.4 N·m (typical for 750 W model) |
| Maximum Speed | 5000 rpm |
| Encoder Type | Incremental Encoder (typically 2500 P/R) |
| Brake Type | Electromagnetic Holding Brake |
| Power Supply Voltage | 200–230 VAC (three-phase) |
| Insulation Class | Class F |
| Cooling Method | Natural Convection / Forced Air (system dependent) |
| Protection Rating | IP65 (excluding shaft and connector) |
| Connection Type | Prewired cable or connector (varies by configuration) |
| Mounting Type | Flange Mount |
| Shaft Type | Straight Shaft with Keyway |
| Frame Size | Standard R88M-U 750 W frame (approx. 80 mm square) |
| Operating Temperature Range | 0°C to +40°C |
| Storage Temperature Range | -20°C to +60°C |
| Vibration Resistance | 4.9 m/s² (operating) |
| Compliance | CE, UL, and RoHS Compliant |
| Weight | Approx. 3.5 kg (7.7 lb) |
Information About R88M-U75030HA-BR6
The R88M-U75030HA-BR6 belongs to Omron’s R88M-U Series of AC servo motors, developed for compatibility with Omron’s R88D-U Series servo drives. It features a 750 W (0.75 kW) output capacity and operates at 3000 rpm, making it suitable for medium-torque, high-speed motion control. The motor includes a holding brake and incremental encoder for precise positioning feedback and safe stopping functionality. Its compact, robust housing and high-efficiency design provide long service life and consistent performance under continuous-duty operation in industrial environments.
Key Features:
- High-Precision Servo Motor: 750 W rated power with 3000 rpm speed for smooth and accurate motion control.
- Integrated Brake: Equipped with an electromagnetic brake for secure load holding and safety.
- Encoder Feedback: Includes incremental encoder for precise position detection and control.
- R88M-U Series Compatibility: Designed to pair with Omron R88D-U servo drives.
- Durable Industrial Construction: Compact, sealed housing ensures long service life in harsh conditions.
- Efficient Operation: Optimized for fast response, low vibration, and minimal heat generation.
- Wide Application Range: Ideal for robotics, packaging, conveyor systems, and CNC motion equipment.
- Omron Quality: Engineered for reliability, precision, and long-term operational stability.
The R88M-U75030HA-BR6 delivers the reliability and precision required for motion control, automation, and high-performance servo drive systems.
