R88M-U75030VA-BS1 | Omron 750W 200V AC Servo Motor with Brake 2.39Nm 3000rpm
- Regular price
- $1,115.00
- Sale price
- $1,115.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: R88M-U75030VA-BS1
Description

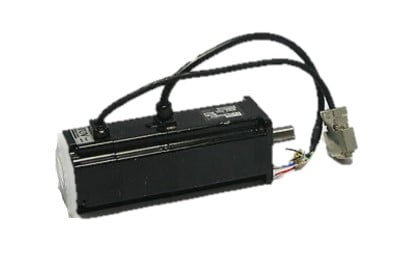

The Omron R88M-U75030VA-BS1 Servo Motor is a 750 W, 200 V AC servo motor designed for precision motion control in industrial automation systems. Delivering 2.39 Nm of rated torque at 3000 rpm, it features a straight shaft with key, an incremental encoder, and an integrated brake, making it ideal for high-accuracy positioning and dynamic load applications.
Technical Specifications
| Condition | New/Never Used Surplus (Discontinued) |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | R88M-U75030VA-BS1 |
| Subcategory | Servo Motors |
| Series | R88M-U |
| Type | AC Servo Motor |
| Rated Power | 750 W |
| Rated Voltage | 200 VAC |
| Rated Current | 4.4 A |
| Rated Torque | 2.39 Nm |
| Rated Speed | 3000 rpm |
| Peak Torque | Approx. 3× rated torque (series typical) |
| Encoder Type | Incremental encoder |
| Brake Type | With brake |
| Shaft Type | Straight shaft with key |
| Seal Type | Without shaft seal |
| Frame Style | Cylindrical |
| Cooling Method | Natural convection |
| Insulation Class | Class F |
| Protection Rating | IP40 housing (IP65 shaft typical) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Mounting Type | Flange mount |
| Drive Compatibility | Omron U-series servo drives |
| Application | Robotics, packaging, conveyors, CNC, and motion control systems |
| Country of Origin | Japan |
| Weight | Approx. 2.4 kg (5.3 lb) |
Information About R88M-U75030VA-BS1
The R88M-U75030VA-BS1 belongs to Omron’s R88M-U Series of AC servo motors, built for compatibility with Omron’s U-series servo drives and motion controllers. It provides high-efficiency torque output and responsive control for robotic, packaging, and machine tool applications. This model operates at 200 VAC, draws 4.4 A, and incorporates an incremental encoder for precise feedback and closed-loop motion regulation. Its built-in holding brake enhances positional stability in vertical or load-sensitive systems, while the straight keyed shaft ensures reliable mechanical coupling. Engineered without a shaft seal, it is best suited for clean or controlled environments.
Key Features:
- High-Performance Output: Rated at 750 W for demanding motion and positioning tasks.
- Precise Speed Control: Operates at 3000 rpm with smooth and accurate response.
- Strong Torque Delivery: Provides 2.39 Nm of continuous rated torque for dynamic operations.
- Built-In Brake: Maintains position during power loss or system idle states.
- Incremental Encoder: Enables precise position and speed feedback for closed-loop control.
- Compact 200 V Design: Optimized for space-efficient integration in servo systems.
- Straight Shaft with Key: Ensures secure, slip-free power transmission.
- Omron Reliability: Engineered for consistent performance in industrial automation applications.
The R88M-U75030VA-BS1 delivers the reliability and precision required for motion-critical industrial systems and servo drive applications.
