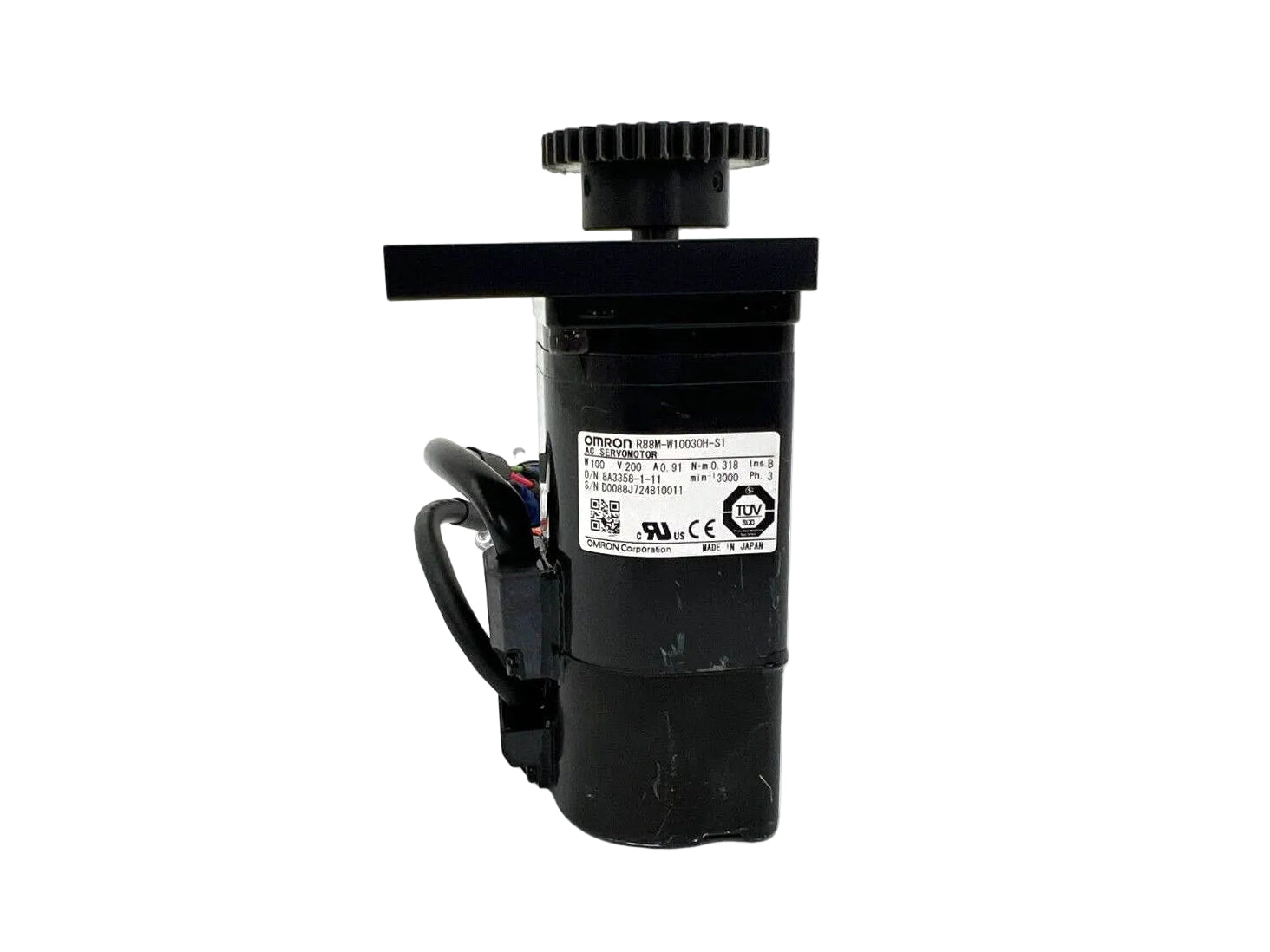

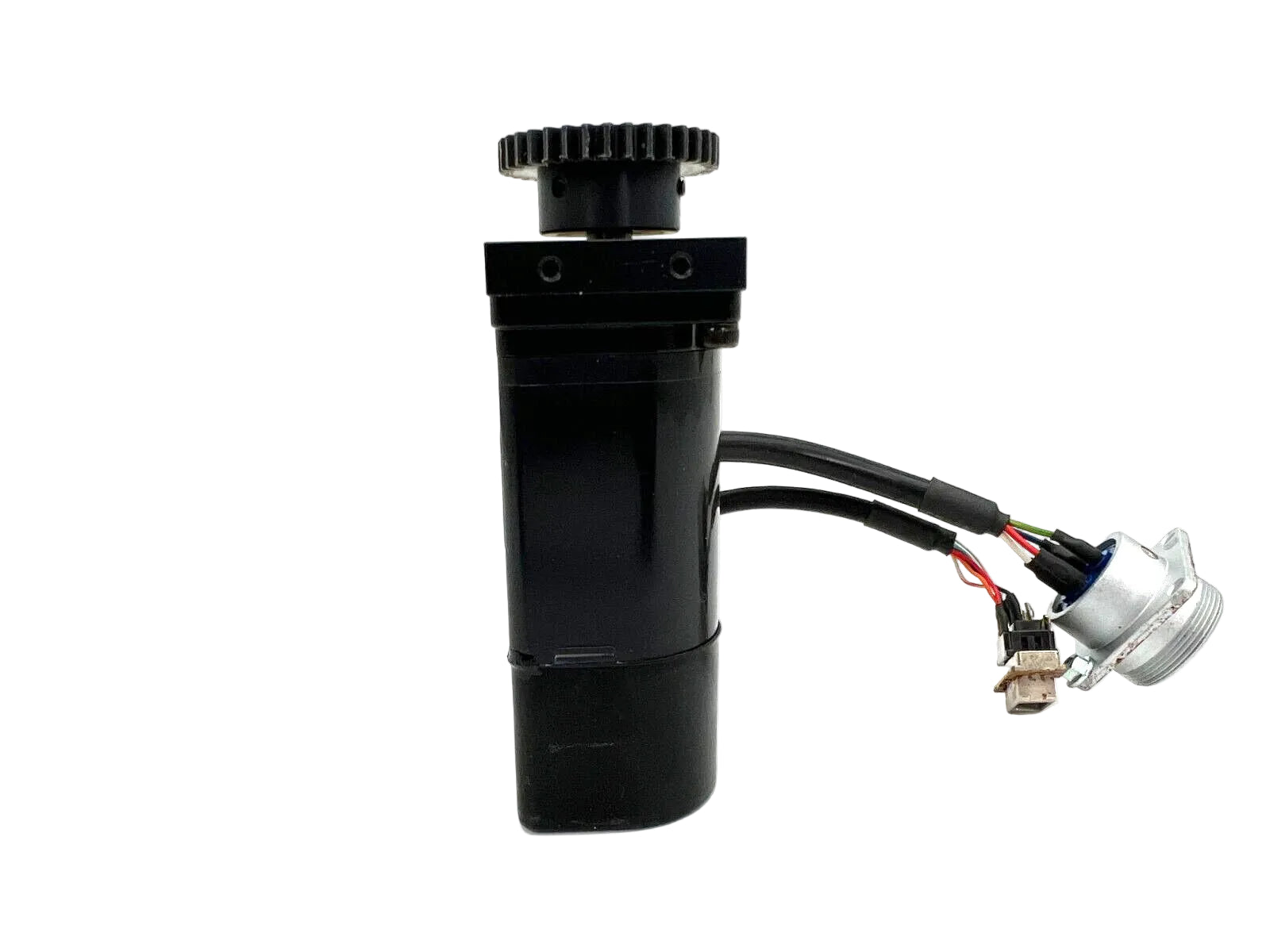

R88M-W10030H-S1 | Omron AC Servo Motor 100W 3000RPM Incremental Encoder Keyed Shaft 200VAC
- Regular price
- $689.00
- Sale price
- $689.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R88M-W10030H-S1
Description
The Omron R88M-W10030H-S1 is a compact AC servo motor designed for precision motion control in industrial automation and positioning systems. The R88M-W10030H-S1 delivers 100W rated output at 3000 RPM and includes an incremental encoder for accurate speed and position feedback. It is built for servo-driven machinery requiring stable torque performance and keyed shaft mechanical coupling.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Servo Products |
| Part Number | R88M-W10030H-S1 |
| Subcategory | Servo Motor |
| Motor Type | AC Servo Motor |
| Rated Output Power | 100 W |
| Rated Speed | 3000 RPM |
| Rated Torque | 0.318 Nm |
| Maximum Torque | 0.955 Nm |
| Rated Voltage | 200 VAC |
| Rated Current | 4.4 Amp |
| Encoder Type | Incremental Encoder |
| Shaft Type | Keyed Shaft |
| Protection Class | IP65 (excluding shaft through portion) |
| Insulation Resistance | 100 MΩ minimum at 500 VDC |
| Dielectric Strength | 1.5 kVAC for 1 minute |
| Ambient Temperature Range | 0 to +40°C (without freezing) |
| Ambient Humidity Range | 20% to 85% RH (non-condensing) |
| Manufacturer Status | Discontinued by Manufacturer |
| Weight | 1.70 lbs |
Information About R88M-W10030H-S1
The R88M-W10030H-S1 is an Omron servo motor intended for high-response industrial motion applications where controlled torque and rotational speed are required. It operates on a 200VAC supply and provides a rated torque of 0.318 Nm with a maximum torque of 0.955 Nm for dynamic load handling. The motor includes an incremental encoder to support closed-loop feedback control when paired with compatible Omron servo drives. Its IP65-rated housing and keyed shaft design allow reliable integration into automation equipment such as robotics, packaging systems, conveyors, and small machine tool axes.
Key Features:
-
Compact AC Servo Motor Design: Engineered for precise positioning and speed control in automation systems.
-
100W Rated Output Power: Provides efficient servo performance for low-power motion axes.
-
3000 RPM Rated Speed: Supports stable high-speed operation in synchronized machine movement.
-
Torque Performance Capability: Delivers 0.318 Nm rated torque with up to 0.955 Nm maximum torque.
-
Incremental Encoder Feedback: Ensures accurate speed and position response for closed-loop servo control.
-
Keyed Shaft Construction: Enables secure coupling to driven mechanical assemblies and machine components.
-
IP65 Protection Class: Dust-resistant and water-protected enclosure suitable for industrial environments.
-
Electrical Insulation Strength: Rated for 1.5 kVAC dielectric strength and high insulation resistance.
The R88M-W10030H-S1 delivers the reliability and precision required for compact servo-driven motion control in industrial automation equipment.
