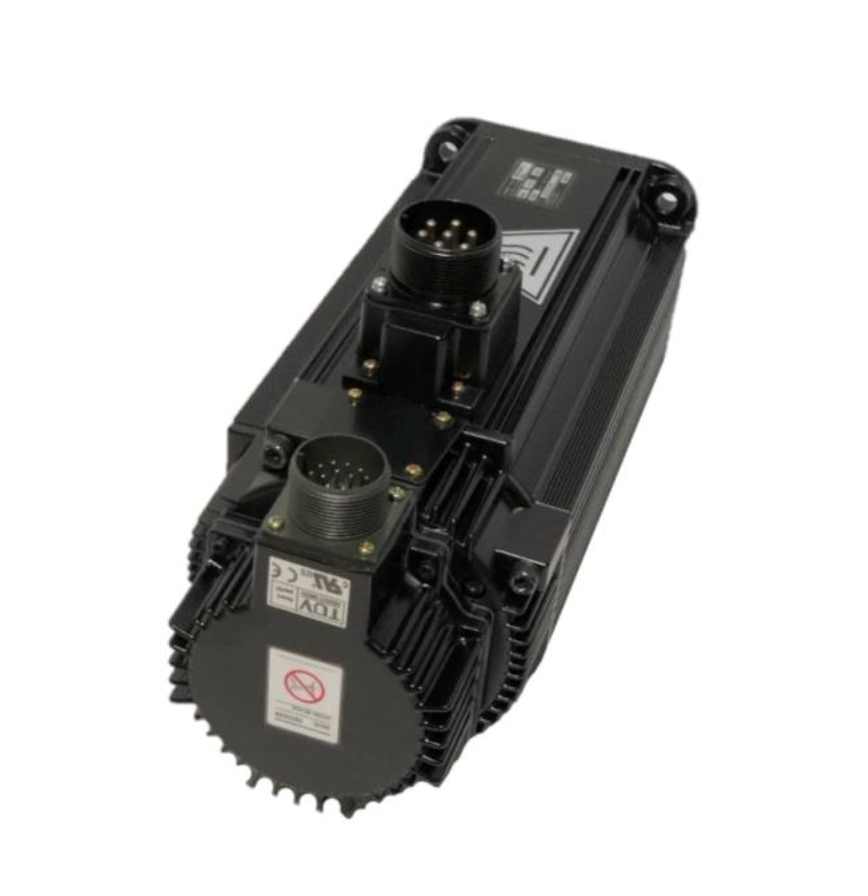

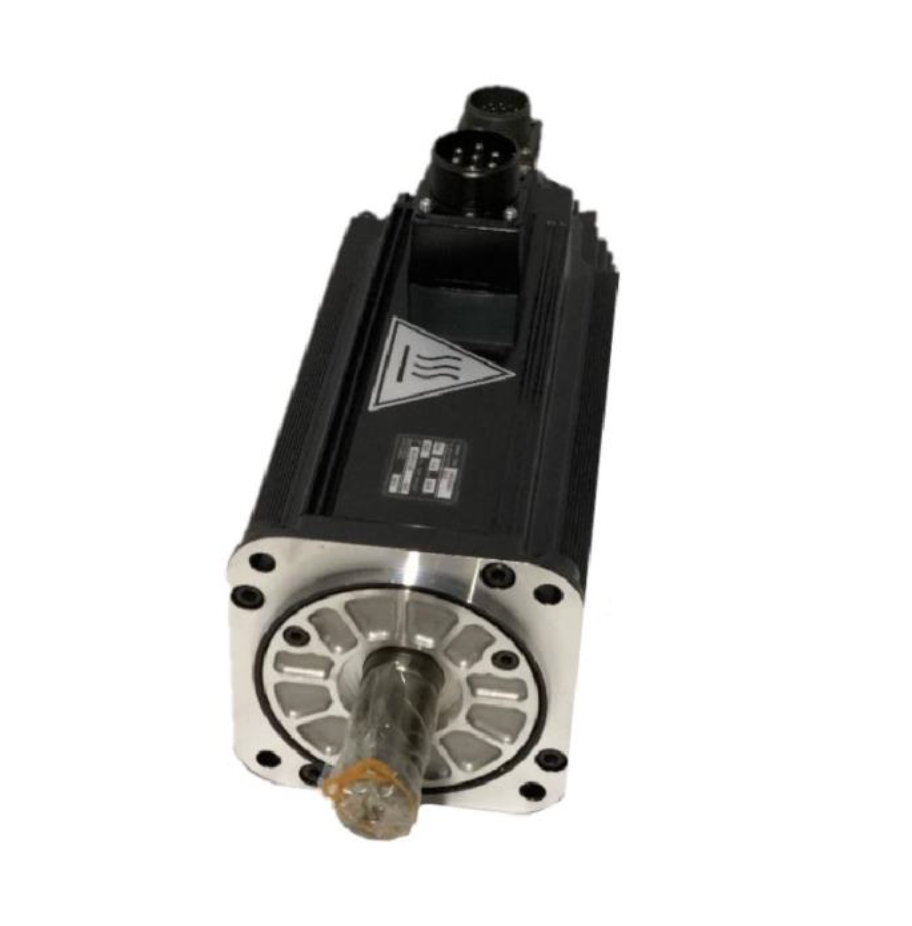

R88M-W5K030H-BS2 | Omron 5kW 200V AC Servo Motor 3000RPM IP67
- Regular price
- $7,524.00
- Sale price
- $7,524.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R88M-W5K030H-BS2
Description
The Omron R88M-W5K030H-BS2 is a 200 VAC AC servo motor designed for high-performance motion control applications. Rated at 5 kW with a nominal speed of 3000 RPM, it delivers 1784 oz-in (12.6 Nm) of rated torque and includes a built-in brake. The motor features an incremental encoder and a 130 mm square flange for industrial mounting configurations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Servo Products |
| Part Number | R88M-W5K030H-BS2 |
| Subcategory | Servo Motor |
| Series | OMNUC W |
| Rated Power | 5 kW |
| Rated Voltage | 200 VAC |
| Rated Speed | 3000 RPM |
| Maximum Speed | 5000 RPM |
| Rated Torque | 1784 oz-in (12.6 Nm) |
| Max Momentary Torque | 5353 oz-in (37.8 Nm) |
| Encoder Type | Incremental |
| Protection Class | IP67 |
| Mounting Type | 130 mm Square Flange |
| Shaft Type | Straight Shaft with Key |
| Operating Temperature | 0°C to 40°C |
| Weight | 32.00 lbs |
Information About R88M-W5K030H-BS2
The R88M-W5K030H-BS2 belongs to the Omron OMNUC W series of AC servo motors developed for precision positioning and speed control in automation systems. It operates on a 200 VAC supply and supports a rated torque of 12.6 Nm with a maximum momentary torque of 37.8 Nm. The motor is equipped with an incremental encoder for accurate feedback and closed-loop control. Designed with a flange mount and keyed straight shaft, it includes an integrated holding brake for controlled stopping and positioning.
Key Features:
-
5 kW Rated Output: Suitable for high-performance servo applications.
-
200 VAC Operation: Designed for industrial AC servo systems.
-
3000 RPM Rated Speed: Optimized for precision motion control.
-
12.6 Nm Rated Torque: Provides stable torque output for automation tasks.
-
Incremental Encoder: Enables accurate position and speed feedback.
-
Integrated Brake: Supports holding and controlled stopping functions.
-
130 mm Square Flange: Standard industrial mounting configuration.
-
IP67 Protection Class: Suitable for demanding industrial environments.
-
Keyed Straight Shaft: Secure mechanical coupling with keyed interface.
The R88M-W5K030H-BS2 delivers the reliability and precision required for industrial servo motor and motion control applications.
