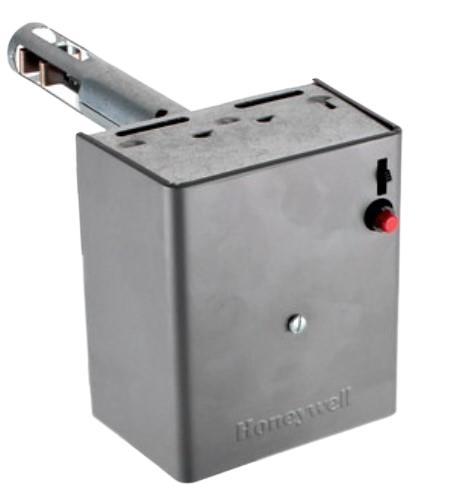

RA116A1055 | Honeywell Protectorelay Oil Burner Control, 120V, 75-Second Safety Switch Timing
- Regular price
- $520.00
- Sale price
- $520.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: RA116A1055
Description
The Honeywell RA116A1055 Protectorelay® Oil Burner Control combines ignition sequencing and flame safeguard protection for oil-fired heating systems. Operating at 120 VAC, 60 Hz, it provides a 75-second safety switch timing and includes a manual reset feature for reliable burner cycling and flame supervision.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Burner and Flame Controls |
| Part Number | RA116A1055 |
| Subcategory | Oil Burner Control |
| Product Type | Protectorelay® |
| Voltage Rating | 120 VAC |
| Frequency | 60 Hz |
| Safety Switch Timing | 75 Seconds Nominal |
| Ignition Type | Intermittent Ignition |
| Control Circuit Compatibility | Line Voltage or 24 VAC Control Circuit |
| Safety Switch Reset | Manual Reset Required After Ignition Failure |
| Temperature Range (Flue Gases) | Up to 1000°F (556°C) with Pyrostat® Flame Detector |
| Mounting Method | Flange Mount (for Curved or Flat Surfaces) |
| Housing Dimensions (H × W × D) | 6 in × 5-3/16 in × 3-3/16 in |
| Safety Features | Manual Trip Safety Switch for Service Shutdown |
| Application | Oil Burner Systems, Boilers, and Furnaces |
| Operation Function | Controls Burner Cycling and Monitors Flame Presence |
| Construction | Heavy-Duty Metal Enclosure |
| Flame Detection | Compatible with Pyrostat® Sensors |
| Certification | UL Listed |
| Weight | 3.20 lbs |
Information About RA116A1055
The RA116A1055 is part of Honeywell’s Protectorelay® series, combining a flame safeguard control with ignition and safety sequencing for oil-fired burner systems. It interfaces with a Pyrostat® flame detector to sense temperature changes in flue gases up to 1000°F, ensuring accurate detection of flame presence and proper system operation. The control features a built-in safety switch that interrupts burner operation after 75 seconds if ignition fails, requiring manual reset to restart operation—providing added protection against unsafe conditions. Designed for use with either line-voltage or 24 VAC control circuits, the RA116A1055 is compatible with a wide range of commercial and residential oil burner systems. Its flange mount allows easy installation on both curved and flat surfaces, making it adaptable for varied burner configurations.
Key Features:
- Integrated Flame Safeguard and Control: Combines burner cycling control and flame detection into one reliable unit.
- 75-Second Safety Switch Timing: Provides timed safety lockout to prevent unsafe burner operation after ignition failure.
- Manual Reset Safety Feature: Requires user reset following safety lockout, ensuring controlled and deliberate burner reactivation.
- Pyrostat® Flame Detection Compatibility: Works with Honeywell Pyrostat® sensors for accurate monitoring of flue gas temperatures up to 1000°F (556°C).
- Flange Mount Design: Allows versatile installation on both curved and flat mounting surfaces for system flexibility.
- Dual Circuit Compatibility: Operates with line-voltage or 24 VAC control systems for universal HVAC integration.
- Manual Trip Safety Switch: Enables burner shutdown during maintenance or servicing for improved safety.
- Heavy-Duty Construction: Built with a robust metal housing for durability and long operational life in harsh burner environments.
- Reliable Ignition Sequencing: Supports intermittent ignition systems for efficient oil burner performance.
- Service-Friendly Layout: Provides easy access to manual reset controls and wiring terminals for simplified maintenance.
The RA116A1055 delivers the reliability and precision required for oil burner safety control, ensuring consistent operation, dependable flame supervision, and safe shutdown in the event of ignition failure.
