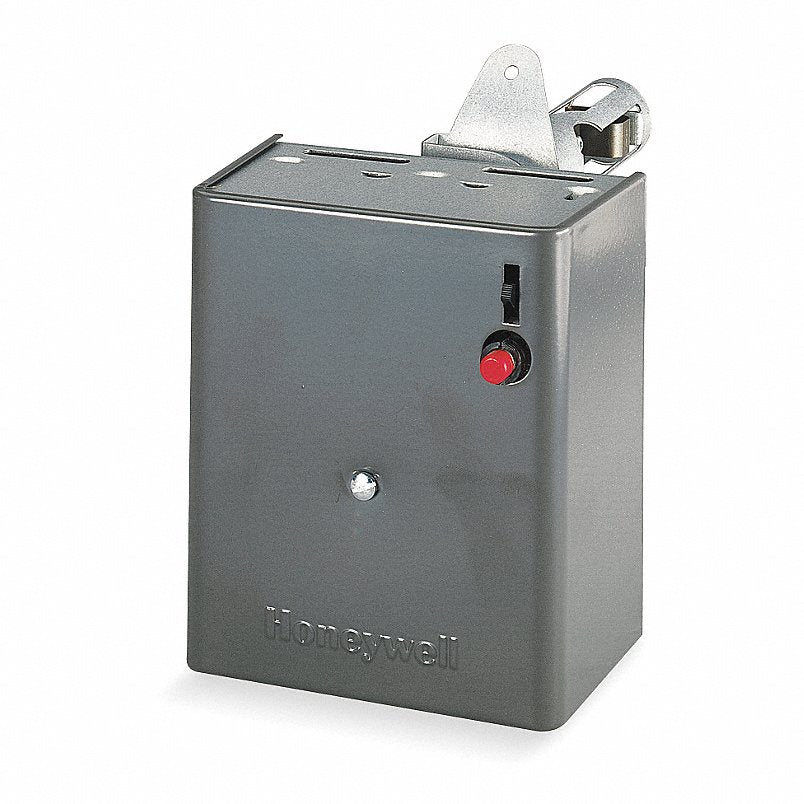

RA117A1047 | Honeywell Protectorelay Oil Burner Control
- Regular price
- $852.00
- Sale price
- $852.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: RA117A1047
Description
The Honeywell RA117A1047 is a robust oil burner primary control from the Protectorelay® series, combining ignition control with flame detection support for reliable heating system operation. It is designed to work with Pyrostat® temperature-based flame detectors and provides critical safety lockout functions with manual reset.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Flame Safety Controls
|
| Part Number | RA117A1047 |
| Subcategory | Oil Burner Protectorelay Controllers |
| Flame Detection | Pyrostat® (thermal, flue gas temperature-based) |
| Safety Lockout Timing | 75 seconds (manual reset required) |
| Number of Zones |
1 |
| Voltage | 120 VAC |
| Amperage | 10.2 A |
| Relay Type | SPST Line Voltage |
| Power Compatibility | 120V line voltage or 24 VAC control circuits |
| Mounting Type | Flange mount (flat or curved surfaces) |
| Dimensions (in.) | 6 H × 5-3/16 W × 3-3/16 D |
| Ambient Operating Temp. | Max 105–115°F |
| Weight | 3.30 lbs |
Information About RA117A1047
The RA117A1047 is an oil burner safety control module designed to cycle the burner and monitor ignition through the use of a Pyrostat® flame detector. This detector responds to temperature changes in flue gases up to 1000°F (556°C), making it suitable for oil-fired heating systems where temperature-based flame verification is required. The unit includes a safety switch with a nominal 75-second lockout time, which must be manually reset after ignition failure, ensuring safe burner shutdown and preventing unsafe restarts.
Key Features:
- Temperature-Based Flame Detection: Works with Pyrostat® detectors that monitor flue gas temperatures up to 1000°F (556°C).
- Manual Reset Safety Lockout: 75-second safety switch lockout requires manual reset after ignition failure for enhanced safety.
- Integrated Trip Switch: Manual trip function enables secure burner shutdown during servicing or inspection.
- Flange Mount Design: Easily installs on curved or flat surfaces with standard flange mounting.
- Flexible Power Compatibility: Operates with either 120V line voltage or 24 VAC control circuits.
- Single-Zone Control: Designed to manage one heating zone per unit.
- SPST Relay Switching: Rated for 10.2 amps at 120V to control burner operation reliably.
- Certified Safety: UL Listed and CSA Certified for safe operation in oil-fired heating systems.
The RA117A1047 delivers dependable oil burner cycling, lockout protection, and thermal flame supervision in a compact, service-friendly design.
