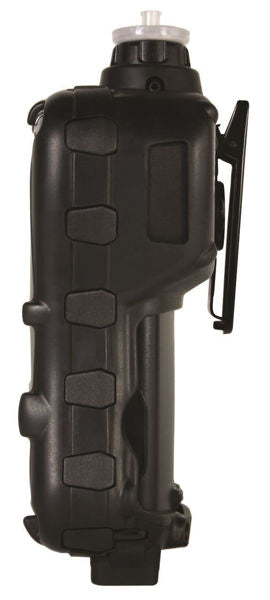

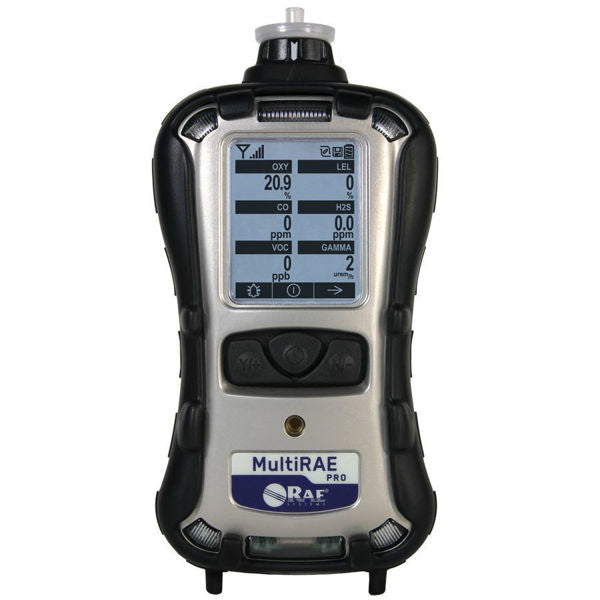

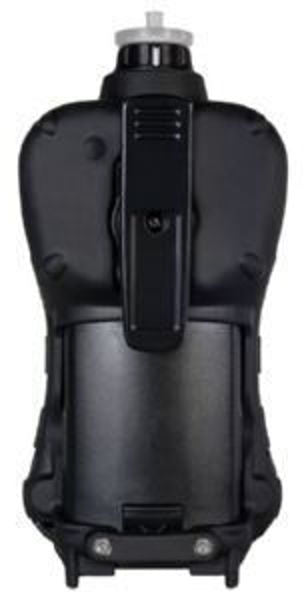

PGM-6248 | RAE Systems MultiRAE Pro Multi-Gas & Gamma Radiation Detector
- Regular price
- $4,122.00
- Sale price
- $4,122.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PGM-6248
Description
The RAE Systems MultiRAE Pro PGM-6248 is a portable multi-gas and radiation detector designed for advanced chemical threat monitoring and gamma radiation detection. Equipped with interchangeable smart sensors, including PID, electrochemical, NDIR, LEL, and gamma radiation options, the PGM-6248 enables simultaneous multi-hazard detection. Its integrated pump, wireless capability, and rugged construction make it suitable for military, hazmat, and industrial safety applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | RAE Systems |
| Category | Gas Detection |
| Part Number | PGM-6248 |
| Subcategory | Multi-Gas & Radiation Detectors |
| Detector Type | Portable multi-gas and radiation monitor |
| Supported Sensors | Gamma radiation, PID (ppb/ppm VOC), electrochemical, LEL, NDIR, CO₂ |
| Sampling Method | Built-in pump (250 cc/min average flow) |
| Display | 128 x 160 monochrome graphical LCD with backlight |
| Alarm Types | Audible (95 dB), visual LED, vibration, wireless, Man Down alarm |
| Datalogging Capacity | Up to 6 months (5 sensors, 1-min interval) |
| Wireless Capability | Optional RF modem (IEEE 802.15.4 Sub 1GHz, Wi-Fi 802.11 b/g) |
| Ingress Protection | IP65 |
| Operating Temperature | -4° to 122°F (-20° to 50°C) |
| Humidity Range | 0% to 95% RH (non-condensing) |
| Power Options | Rechargeable Li-ion, extended Li-ion, or AA alkaline adapter |
| Dimensions | 7.6" H x 3.8" W x 2.6" D (193 x 96.5 x 66 mm) |
| Certifications | CSA, ATEX, IECEx, EMC 2004/108/EC, MIL-STD-810G |
| Weight | 31 oz (880 g) |
Information About PGM-6248
The PGM-6248 is part of the MultiRAE Pro series engineered for comprehensive gas and radiation monitoring in field operations. It supports over 25 intelligent, field-replaceable sensors, including ppb and ppm PID sensors for VOC detection and gamma radiation monitoring. The device features a built-in sampling pump with automatic low-flow shutoff and configurable datalogging for extended operational tracking. Designed to meet international safety certifications, it operates in hazardous environments and supports optional wireless communication for real-time remote monitoring.
Key Features:
- Multi-Threat Detection: Simultaneously monitors toxic gases, VOCs, combustible gases, CO₂, oxygen, and gamma radiation.
- Interchangeable Smart Sensors: Supports over 25 field-replaceable electrochemical, PID, NDIR, and LEL sensors.
- Parts-Per-Billion VOC Capability: Optional PID sensor enables high-sensitivity ppb-level detection.
- Integrated Sampling Pump: Built-in pump with 250 cc/min average flow and automatic low-flow protection.
- Wireless Communication (Optional): Transmits real-time data and alarm status to host systems.
- Comprehensive Alarm System: Audible (95 dB), visual LED, vibration, wireless, and on-screen alarm indications.
- Extended Datalogging: Continuous logging up to six months (5 sensors, 1-minute intervals).
- Rugged Industrial Design: IP65-rated enclosure and MIL-STD-810G compliant construction.
The PGM-6248 delivers the reliability and precision required for multi-gas and radiation detection in hazardous and mission-critical environments.
