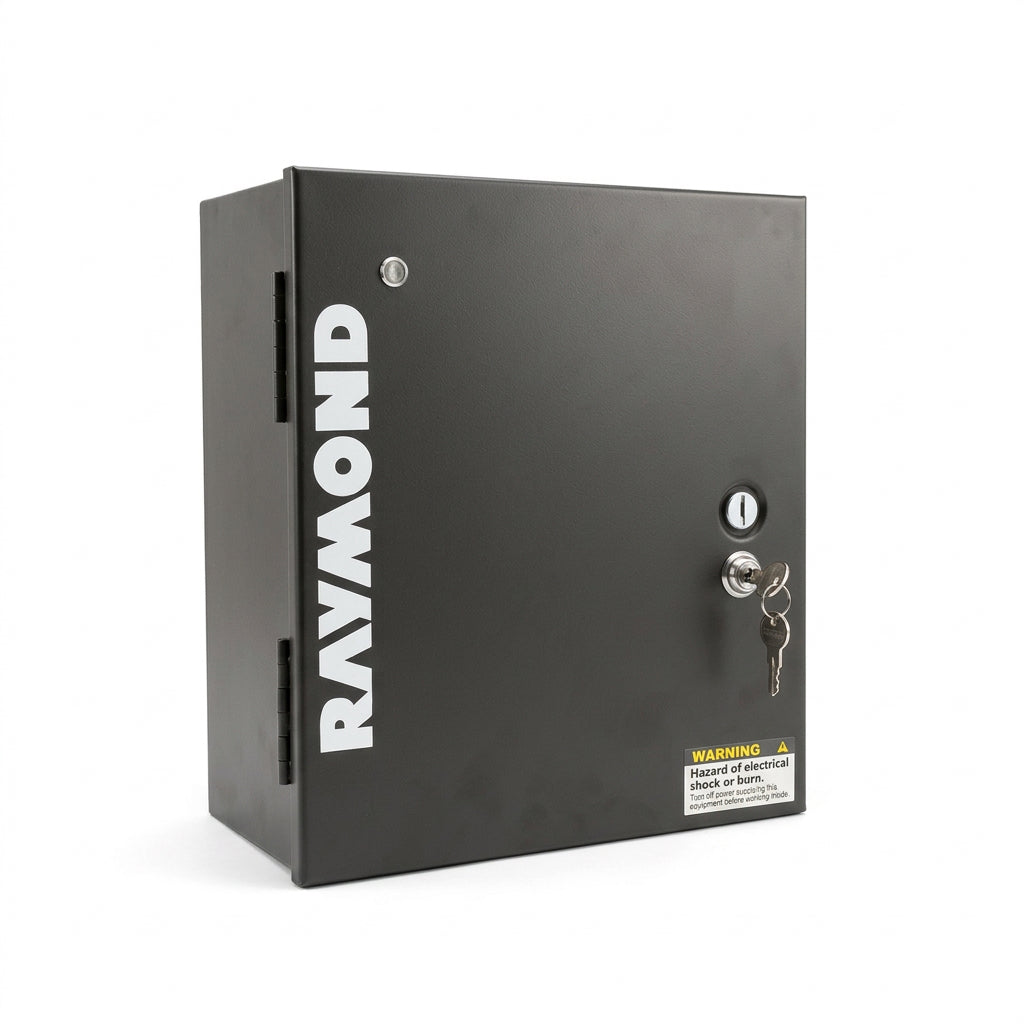

Raymond 1008446/002 Line Driver Assembly Control Box Panel
- Regular price
- $5,999.00
- Sale price
- $5,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1008446/002
Description
The Raymond 1008446/002 is a heavy-duty line driver assembly and control box panel engineered for industrial material handling equipment, electric forklifts, and automated warehouse machinery. Serving as a central electrical control interface, this assembly regulates motor drive signals, power distribution, and multi-axis motion commands across Raymond lift trucks and material handling systems, ensuring precise speed control, smooth acceleration, and operational reliability.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Raymond |
| Category | Drives & Accessories |
| Part Number | 1008446/002 |
| Subcategory | Line Driver Assembly / Control Box Panel |
| Application | Industrial Forklifts / Material Handling Equipment |
| Function | Motor Drive Control & Signal Line Amplification |
| Mounting Style | Panel / Chassis Mount |
| Weight | 21.10 lbs |
Information About 1008446/002

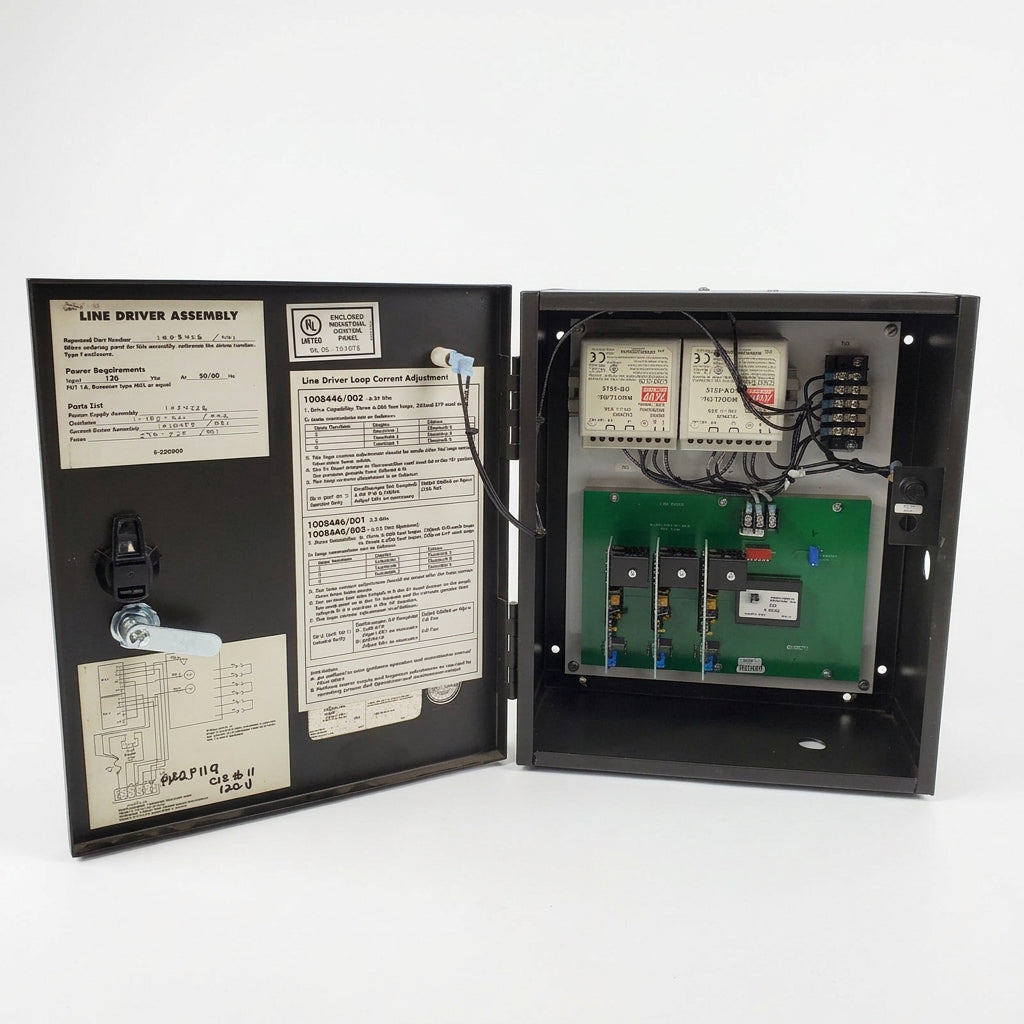

The 1008446/002 line driver control box panel combines logic controller boards, line driver circuits, and industrial wire harness connections inside a protective, heavy-gauge enclosure. Weighing 21.10 lbs (9.57 kgs), the panel is constructed to withstand severe mechanical vibration, frequent stop-and-go duty cycles, and thermal spikes typical of warehouse logistics environments. It processes operator inputs from vehicle control handles and routes power and logic signals to traction and lift motors, providing internal thermal and overload protection to safeguard connected electronics.
Key Features:
-
Line Driver Signal Regulation: Converts low-level controller logic signals into high-power drive outputs for smooth motor actuation.
-
Integrated Industrial Control Panel: Houses motor drive electronics, switching relays, and line drivers within a single modular assembly.
-
Rugged Vehicle Housing: Built with heavy-duty mounting hardware to resist high shock, vibration, and mechanical wear.
-
21.10 lbs Heavy-Duty Build: Solid structural casing ensures long-term electromagnetic shielding and physical protection.
-
Plug-and-Play Wiring Interface: Standardized industrial connectors simplify harness attachment and field maintenance.
-
Enhanced Operational Safety: Integrates current-limiting protection and signal fault monitoring for material handling safety.
-
Raymond Equipment Compatibility: Directly replaces original line driver control assemblies in compatible Raymond lift trucks.
-
Efficient Heat Dissipation: Thermally optimized internal layout prevents component overheating during peak operational shifts.
The 1008446/002 line driver panel delivers the power regulation, physical durability, and precise control required for demanding material handling operations.
