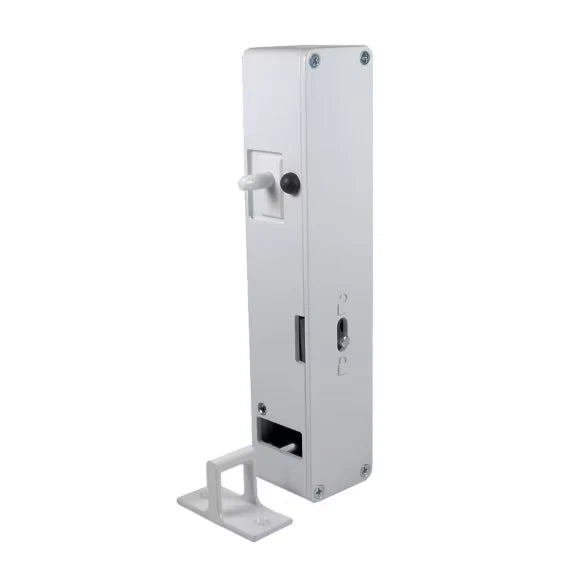

RDI-G-LP1 | Honeywell Relialign Door Interlock Switch 24 VAC/DC
- Regular price
- $1,082.00
- Sale price
- $1,082.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: RDI-G-LP1
Description
The RDI-G-LP1 is an electromechanical door interlock switch designed for safety-critical elevator and lift applications. It combines a solenoid release mechanism with a high holding force for secure panel disconnect functionality.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Components
|
| Part Number | RDI-G-LP1 |
| Subcategory | Connector/Terminal/Pin |
| Product Type | Electromechanical Door Interlock |
| Switch Type | Solenoid Release |
| Configuration | Left-Hand |
| Voltage Rating | 24 VAC/DC |
| Actuator Style | Panel Disconnect |
| Termination | Screw Terminal |
| Holding Force | 608 kgf (approx.) |
| Application | Residential elevators, dumbwaiters, mobility lifts |
| Operating Temperature | 4°C to 38°C |
| Certifications | ASME A17.1, UL |
| Mounting Style | Panel-mounted (via enclosure) |
| Status | Active |
| Weight | 1.00 lbs |
Information About RDI-G-LP1
The RDI-G-LP1 from Honeywell Sensing and Productivity Solutions is a left-hand configured panel disconnect switch used primarily in residential elevators, dumbwaiters, and accessibility lifts. Operating at 24 VAC/DC, it employs a solenoid-based release system with a high mechanical holding force of approximately 608 kgf to ensure secure door locking. The unit terminates via screw terminals and supports standard elevator safety protocols. It is compliant with ASME A17.1 and UL certification requirements and functions reliably within a temperature range of 4°C to 38°C.
Key Features:
- Solenoid-Based Release: Provides controlled access with electromechanical engagement.
- High Holding Force: Rated at approx. 608 kgf for secure door panel locking.
- Left-Hand Configuration: Optimized for left-oriented elevator door designs.
- Panel Disconnect Style: Designed for installation in swing-door elevator systems.
- Screw Terminals: Simplifies wiring with secure and serviceable connections.
- Certified Safety Compliance: Meets ASME A17.1 and UL standards for elevator safety.
- Compact Design: Fits inside control cabinets or elevator interlock housing.
- Low Voltage Operation: Compatible with 24 VAC or 24 VDC supply systems.
The RDI-G-LP1 delivers certified safety, mechanical strength, and practical integration for access control in mobility and elevator systems.
