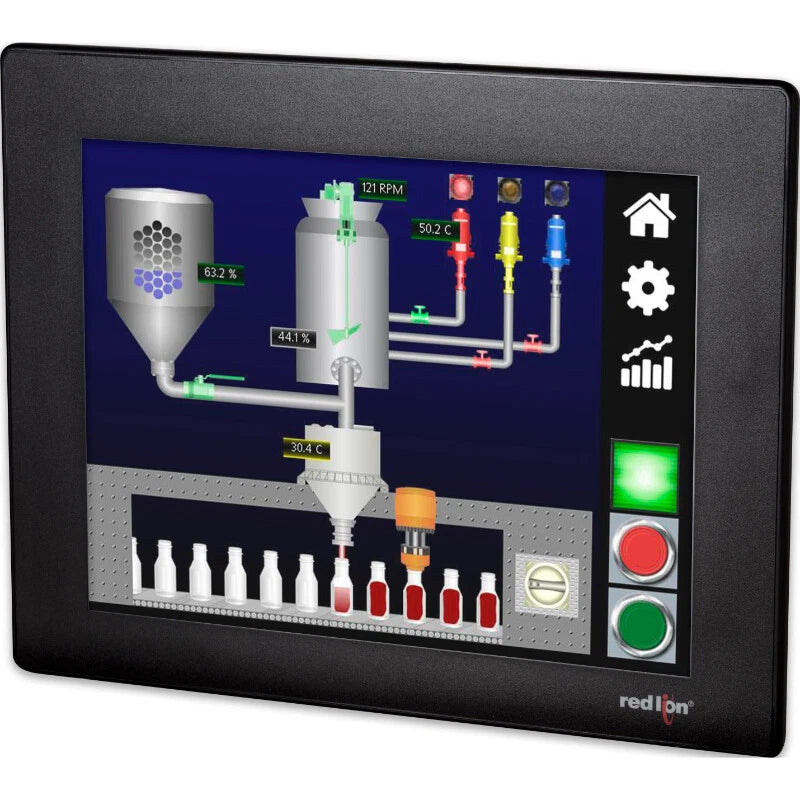

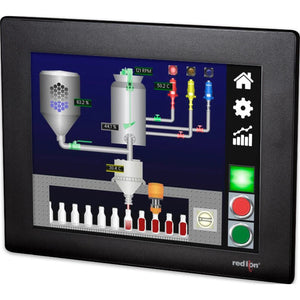

Red Lion CR10001000000210 10.4 Inch HMI Operator Interface Touch Panel
- Regular price
- $3,135.00
- Sale price
- $3,135.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CR10001000000210
Description
The Red Lion CR10001000000210 is a 10.4-inch human-machine interface (HMI) designed to provide intuitive visualization, machine control, and industrial communication for automation systems. It combines a full-color touchscreen with multiple communication interfaces, enabling operators to monitor equipment, exchange data, and manage industrial processes efficiently. As part of the CR1000 Series, it supports protocol conversion and integration with a wide range of industrial controllers.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Red Lion |
| Category | HMI / MMI / OIT |
| Part Number | CR10001000000210 |
| Subcategory | OIT Replacement Display/Touch |
| Series | CR1000 Series |
| Product Type | Human Machine Interface (HMI) |
| Display Size | 10.4 Inch |
| Display Type | Color TFT Touchscreen |
| Resolution | 800 × 600 Pixels |
| Supply Voltage | 24 VDC |
| Power Consumption | 9 W Maximum |
| Ethernet Ports | 1 × 10/100 Base-T |
| Serial Ports | 2 (RS-232 and RS-232/RS-422/RS-485) |
| USB Port | 1 USB Device |
| Memory Expansion | SD Card Slot |
| Front Protection Rating | IP66 / NEMA 4X |
| Programming Software | Crimson® 3.1 |
| Mounting | Panel Mount |
| Weight | 1.36 kgs |
Information About CR10001000000210
The CR10001000000210 is a member of the Red Lion CR1000 Series of industrial operator interfaces developed for machine automation and process control applications. It features a 10.4-inch TFT color touchscreen with Ethernet and serial communication ports that simplify connectivity to PLCs, drives, and industrial devices from multiple manufacturers. The unit is configured using Crimson® software, which supports graphical interface development, protocol conversion, and communication with more than 300 industrial drivers. Its rugged front panel is designed for industrial environments while providing reliable operation for manufacturing, packaging, water treatment, and OEM equipment.
Key Features:
- 10.4-Inch Color Display: Provides a high-resolution TFT touchscreen for clear machine visualization.
- Multiple Communication Ports: Includes two serial ports, one Ethernet port, and one USB device port for flexible connectivity.
- Protocol Conversion: Supports communication with over 300 industrial protocols for multi-vendor integration.
- Crimson Configuration Software: Enables graphical programming, visualization, and application development.
- Industrial Design: Features an IP66/NEMA 4X-rated front panel for demanding environments.
- Panel Mount Construction: Designed for straightforward installation in industrial control cabinets.
- Data Storage Support: SD card slot allows database upload and download.
- Wide Industrial Compatibility: Suitable for PLCs, automation controllers, and industrial communication systems.
The CR10001000000210 delivers the reliability and precision required for industrial machine visualization, process monitoring, and operator interface applications.
